Specs of GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Double Cab 5.3 EcoTec3 V8 (355/380 Hp) 8 Automatic FlexFuel /2016, 2017, 2018/

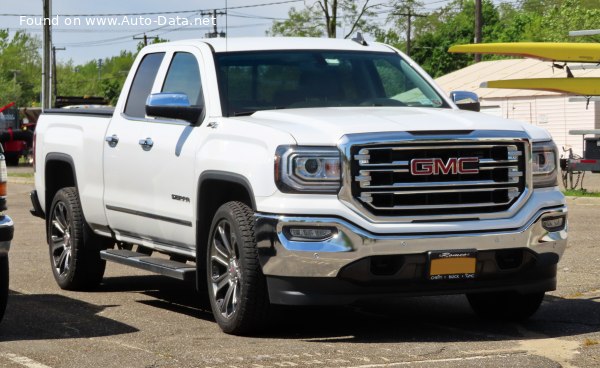

2016 GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Double Cab - Photo 1
GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Double Cab - Photo 2GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Double Cab - Photo 3GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Double Cab - Photo 4GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Double Cab - Photo 5GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Double Cab - Photo 6GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Double Cab - Photo 7GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Double Cab - Photo 8

Key specs

GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Double Cab 5.3 EcoTec3 V8 (355/380 Hp) 8 Automatic FlexFuel /Pick-up 2016 - 2018/

What is the body type of GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Double Cab?
Pick-up, 4 Doors, 5 Seats
What is the power output of GMC Sierra 1500 Pick-up 2016 5.3 EcoTec3 V8 (355/380 Hp) 8 Automatic FlexFuel?
355 Hp, 519 Nm
383 lb.-ft.
What is the engine displacement of GMC Sierra 1500 Pick-up 2016 5.3 EcoTec3 V8 (355/380 Hp) 8 Automatic FlexFuel?
5.3 l
5328 cm3
325.13 cu. in.
What is the number of cylinders in 2016 GMC 5.3 EcoTec3 V8 (355/380 Hp) 8 Automatic FlexFuel?
8, V-engine
What is the drivetrain of GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Double Cab Pick-up 2016 5.3 EcoTec3 V8 (355/380 Hp) 8 Automatic FlexFuel?
Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
What is the length of 2016 GMC Sierra 1500 Pick-up?
5828 mm
229.45 in.
What is the width of 2016 GMC Sierra 1500 Pick-up?
2032 mm
80 in.
What is the kerb weight of 2016 GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Double Cab 5.3 EcoTec3 V8 (355/380 Hp) 8 Automatic FlexFuel?
2426 kg
5348 lbs.
What is the maximum permissible mass of 2016 GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Double Cab 5.3 EcoTec3 V8 (355/380 Hp) 8 Automatic FlexFuel?
3447 kg
7599 lbs.
What is the trunk (boot) capacity of 2016 GMC Sierra 1500 Pick-up?
1728 l
61 cu. ft.
What is the number of gears in What is the gearbox type of 2016 GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Double Cab 5.3 EcoTec3 V8 (355/380 Hp) 8 Automatic FlexFuel?
8, automatic transmission Hydra-Matic
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
GMC
Model
Sierra 1500
Generation
Sierra 1500 IV (GMTK2XX, facelift 2016) Double Cab
Modification (Engine)
5.3 EcoTec3 V8 (355/380 Hp) 8 Automatic FlexFuel
Start of production
2016 year
End of production
2018 year
Powertrain Architecture
Internal Combustion engine
Body type
Pick-up
Seats
5
Doors
4
Looking for GMC Sierra 1500 on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - urban
14.7 l/100 km 16 US mpg
19.2 UK mpg
6.8 km/l
Fuel consumption (economy) - extra urban
10.7 l/100 km 22 US mpg
26.4 UK mpg
9.3 km/l
Fuel Type
Petrol / Ethanol - E85
Weight-to-power ratio
6.8 kg/Hp, 146.3 Hp/tonne
Weight-to-torque ratio
4.7 kg/Nm, 213.9 Nm/tonne

Engine specs

Power
355 Hp @ 5600 rpm.
Power per litre
66.6 Hp/l
Power (Ethanol - E85)
380 Hp @ 5600 rpm.
Power per litre (Ethanol - E85)
71.3 Hp/l
Torque
519 Nm @ 4100 rpm. 383 lb.-ft. @ 4100 rpm.
Torque (Ethanol - E85)
564 Nm @ 4100 rpm.
Maximum engine speed
5800 rpm.
Engine layout
Front, Longitudinal
Engine Model/Code
L83
Engine displacement
5328 cm3 325.13 cu. in.
Number of cylinders
8
Engine configuration
V-engine
Cylinder Bore
96 mm 3.78 in.
Piston Stroke
92 mm 3.62 in.
Compression ratio
11:1
Number of valves per cylinder
2
Fuel injection system
Direct injection
Engine aspiration
Naturally aspirated engine
Valvetrain
OHV
Engine oil capacity
8 l 8.45 US qt | 7.04 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
14.8 l 15.64 US qt | 13.02 UK qt
Engine systems
Cylinder deactivation system

Volume and weights

Kerb Weight
2426 kg 5348 lbs.
Max. weight
3447 kg 7599 lbs.
Max load
1021 kg 2251 lbs.
Trunk (boot) space - minimum
1728 l 61 cu. ft.
Fuel tank capacity
98 l 25.89 US gal | 21.56 UK gal
Permitted trailer load with brakes (12%)
4899 kg 10800 lbs.

Dimensions

Length
5828 mm 229.45 in.
Width including mirrors
2032 mm 80 in.
Height
1876 mm 73.86 in.
Wheelbase
3645 mm 143.5 in.
Front track
1750 mm 68.9 in.
Rear (Back) track
1716 mm 67.56 in.
Ride height (ground clearance)
222 mm 8.74 in.
Minimum turning circle (turning diameter)
14.3 m 46.92 ft.
Approach angle
17°
Departure angle
23.1°
Ramp-over (brakeover) angle
18.9°

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel
Rear wheel drive
Number of gears and type of gearbox
8 gears, automatic transmission Hydra-Matic
Front suspension
Independent coil spring
Rear suspension
Rigid axle suspension, Leaf spring
Front brakes
Ventilated discs, 330x30 mm
Rear brakes
Ventilated discs, 345x20 mm
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Electric Steering
Tires size
245/70 R17; 265/70 R17
Wheel rims size
8J x 17
