Specs of GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Crew Cab Standard Box 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel /2016, 2017, 2018/

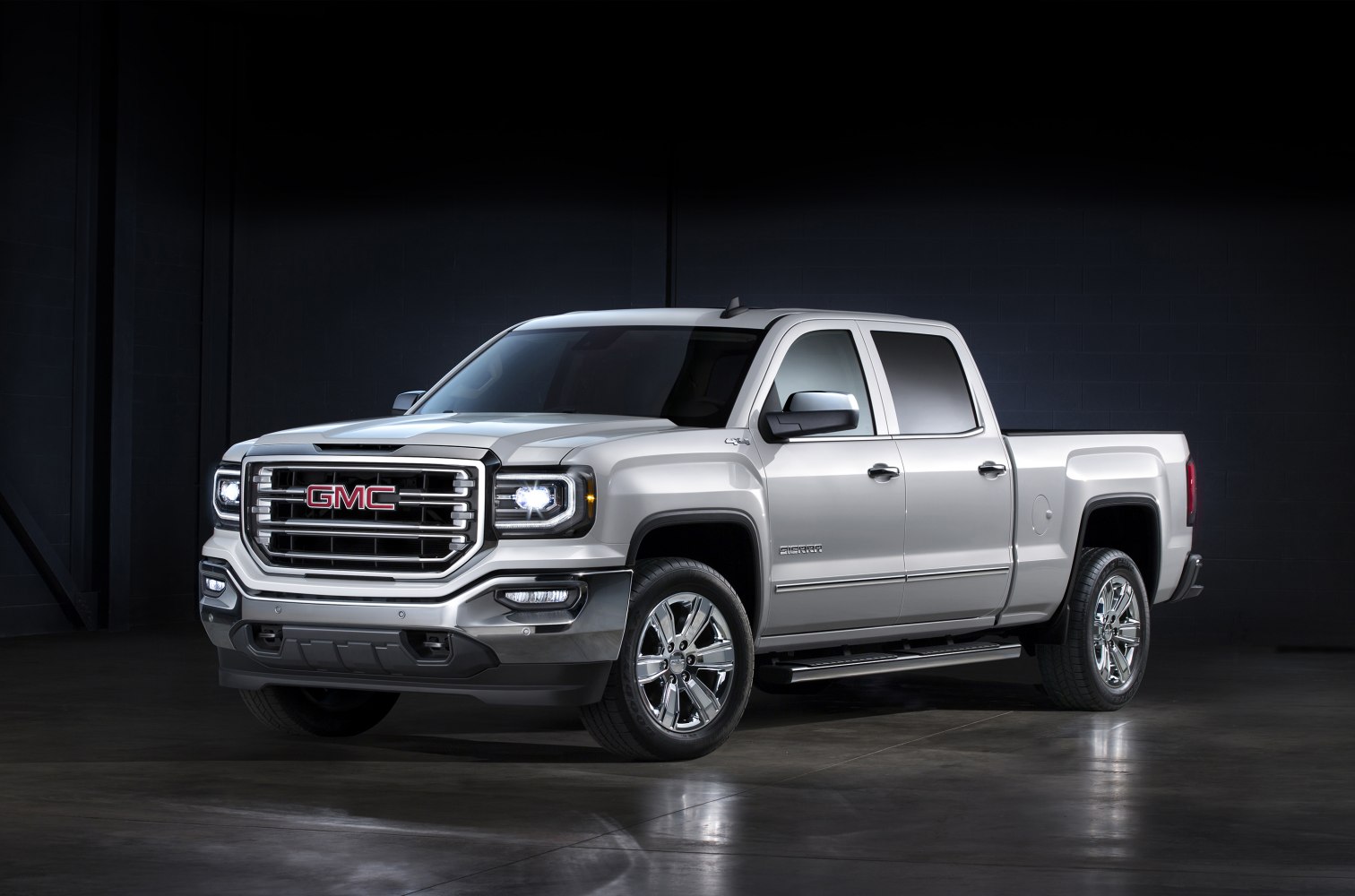

2015 GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Crew Cab Standard Box - Photo 1
GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Crew Cab Standard Box - Photo 2GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Crew Cab Standard Box - Photo 3

Key specs

GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Crew Cab Standard Box 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel /Pick-up 2016 - 2018/

What is the body type of GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Crew Cab Standard Box?
Pick-up, 4 Doors, 5 Seats
What is the power output of GMC Sierra 1500 Pick-up 2016 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel?
285 Hp, 413 Nm
305 lb.-ft.
What is the engine displacement of GMC Sierra 1500 Pick-up 2016 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel?
4.3 l
4300 cm3
262.4 cu. in.
What is the number of cylinders in 2016 GMC 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel?
6, V-engine
What is the drivetrain of GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Crew Cab Standard Box Pick-up 2016 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel?
Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
What is the length of 2016 GMC Sierra 1500 Pick-up?
6067 mm
238.86 in.
What is the width of 2016 GMC Sierra 1500 Pick-up?
2032 mm
80 in.
What is the kerb weight of 2016 GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Crew Cab Standard Box 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel?
2343 kg
5165 lbs.
What is the maximum permissible mass of 2016 GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Crew Cab Standard Box 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel?
3130 kg
6900 lbs.
What is the trunk (boot) capacity of 2016 GMC Sierra 1500 Pick-up?
1728 l
61 cu. ft.
What is the number of gears in What is the gearbox type of 2016 GMC Sierra 1500 IV (GMTK2XX, facelift 2016) Crew Cab Standard Box 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel?
6, automatic transmission Hydra-Matic
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
GMC
Model
Sierra 1500
Generation
Sierra 1500 IV (GMTK2XX, facelift 2016) Crew Cab Standard Box
Modification (Engine)
4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel
Start of production
2016 year
End of production
2018 year
Powertrain Architecture
Internal Combustion engine
Body type
Pick-up
Seats
5
Doors
4
Looking for GMC Sierra 1500 on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - urban
13.1 l/100 km 18 US mpg
21.6 UK mpg
7.6 km/l
Fuel consumption (economy) - extra urban
9.8 l/100 km 24 US mpg
28.8 UK mpg
10.2 km/l
Fuel Type
Petrol / Ethanol - E85
Weight-to-power ratio
8.2 kg/Hp, 121.6 Hp/tonne
Weight-to-torque ratio
5.7 kg/Nm, 176.3 Nm/tonne

Engine specs

Power
285 Hp @ 5300 rpm.
Power per litre
66.3 Hp/l
Power (Ethanol - E85)
297 Hp @ 5300 rpm.
Power per litre (Ethanol - E85)
69.1 Hp/l
Torque
413 Nm @ 3900 rpm. 305 lb.-ft. @ 3900 rpm.
Torque (Ethanol - E85)
447 Nm @ 3900 rpm.
Maximum engine speed
5800 rpm.
Engine layout
Front, Longitudinal
Engine Model/Code
LV3
Engine displacement
4300 cm3 262.4 cu. in.
Number of cylinders
6
Engine configuration
V-engine
Cylinder Bore
99.6 mm 3.92 in.
Piston Stroke
92 mm 3.62 in.
Compression ratio
11:1
Number of valves per cylinder
2
Fuel injection system
Direct injection
Engine aspiration
Naturally aspirated engine
Valvetrain
OHV
Engine oil capacity
5.7 l 6.02 US qt | 5.02 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
14 l 14.79 US qt | 12.32 UK qt
Engine systems
Cylinder deactivation system

Volume and weights

Kerb Weight
2343 kg 5165 lbs.
Max. weight
3130 kg 6900 lbs.
Max load
787 kg 1735 lbs.
Trunk (boot) space - minimum
1728 l 61 cu. ft.
Fuel tank capacity
98 l 25.89 US gal | 21.56 UK gal
Permitted trailer load with brakes (12%)
3175 kg 7000 lbs.

Dimensions

Length
6067 mm 238.86 in.
Width including mirrors
2032 mm 80 in.
Height
1873 mm 73.74 in.
Wheelbase
3886 mm 152.99 in.
Front track
1747 mm 68.78 in.
Rear (Back) track
1716 mm 67.56 in.
Ride height (ground clearance)
216 mm 8.5 in.
Minimum turning circle (turning diameter)
14.8 m 48.56 ft.
Approach angle
16.7°
Departure angle
23.3°
Ramp-over (brakeover) angle
17.5°

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel
Rear wheel drive
Number of gears and type of gearbox
6 gears, automatic transmission Hydra-Matic
Front suspension
Independent coil spring
Rear suspension
Rigid axle suspension, Leaf spring
Front brakes
Ventilated discs, 330x30 mm
Rear brakes
Ventilated discs, 345x20 mm
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Electric Steering
Tires size
245/70 R17; 265/70 R17
Wheel rims size
8J x 17
