GMC Sierra 1500 IV (GMTK2XX) Double Cab 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel | Technical specs, data, fuel consumption, Dimensions

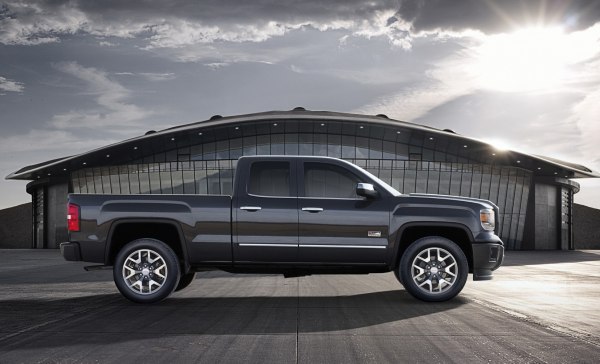

2014 GMC Sierra 1500 IV (GMTK2XX) Double Cab - Photo 1

Key specs

GMC Sierra 1500 IV (GMTK2XX) Double Cab 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel /Pick-up 2013 - 2015/

What is the body type of GMC Sierra 1500 IV (GMTK2XX) Double Cab?

Pick-up, 4 Doors, 5 Seats

What is the power output of GMC Sierra 1500 Pick-up 2013 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel?

285 Hp, 413 Nm
305 lb.-ft.

What is the engine displacement of GMC Sierra 1500 Pick-up 2013 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel?

4.3 l
4300 cm³
262.4 cu. in.

What is the number of cylinders in 2013 GMC 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel?

6, V-engine

What is the drivetrain of GMC Sierra 1500 IV (GMTK2XX) Double Cab Pick-up 2013 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel?

Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 2013 GMC Sierra 1500 Pick-up?

5829 mm
229.49 in.

What is the width of 2013 GMC Sierra 1500 Pick-up?

2032 mm
80 in.

What is the kerb weight of 2013 GMC Sierra 1500 IV (GMTK2XX) Double Cab 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel?

2315 kg
5104 lbs.

What is the maximum permissible mass of 2013 GMC Sierra 1500 IV (GMTK2XX) Double Cab 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel?

3220 kg
7099 lbs.

What is the trunk (boot) capacity of 2013 GMC Sierra 1500 Pick-up?

1728 l
61 cu. ft.

What is the number of gears in What is the gearbox type of 2013 GMC Sierra 1500 IV (GMTK2XX) Double Cab 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel?

6, automatic transmission Hydra-Matic

GMC
- GMC Sierra 1500
  - Sierra 1500 IV (GMTK2XX) Double Cab
    - 6.2 EcoTec3 V8 (420 Hp) Automatic
    - 6.2 EcoTec3 V8 (420 Hp) Automatic
    - 6.2 EcoTec3 V8 (420 Hp) 4WD Automatic
    - 6.2 EcoTec3 V8 (420 Hp) 4WD Automatic
    - 5.3 EcoTec3 V8 (355/380 Hp) Automatic FlexFuel
    - 5.3 EcoTec3 V8 (355/380 Hp) 4WD Automatic FlexFuel
    - 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel
    - 4.3 EcoTec3 V6 (285/297 Hp) 4WD Automatic FlexFuel

Compare

General information

Brand

GMC

Model

Sierra 1500

Generation

Sierra 1500 IV (GMTK2XX) Double Cab

Modification (Engine)

4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel

Start of production

2013 year

End of production

2015 year

Powertrain Architecture

Internal Combustion engine

Body type

Pick-up

Seats

Doors

Looking for GMC Sierra 1500 on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

13.1 l/100 km 18 US mpg
21.6 UK mpg
7.6 km/l

Fuel consumption (economy) - extra urban

9.8 l/100 km 24 US mpg
28.8 UK mpg
10.2 km/l

Fuel Type

Petrol / Ethanol - E85

Weight-to-power ratio

8.1 kg/Hp, 123.1 Hp/tonne

Weight-to-torque ratio

5.6 kg/Nm, 178.4 Nm/tonne

Engine specs

Power

285 Hp @ 5300 rpm.

Power per litre

66.3 Hp/l

Power (Ethanol - E85)

297 Hp @ 5300 rpm.

Power per litre (Ethanol - E85)

69.1 Hp/l

Torque

413 Nm @ 3900 rpm. 305 lb.-ft. @ 3900 rpm.

Torque (Ethanol - E85)

447 Nm @ 3900 rpm.

Maximum engine speed

5800 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

LV3

Engine displacement

4300 cm³ 262.4 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

99.6 mm 3.92 in.

Piston Stroke

92 mm 3.62 in.

Compression ratio

11:1

Number of valves per cylinder

Fuel injection system

Direct injection

Engine aspiration

Naturally aspirated engine

Valvetrain

OHV

Engine oil capacity

5.7 l 6.02 US qt | 5.02 UK qt

Engine oil specification

Coolant

14 l 14.79 US qt | 12.32 UK qt

Engine systems

Cylinder deactivation system

Volume and weights

Kerb Weight

2315 kg 5104 lbs.

Max. weight

3220 kg 7099 lbs.

Max load

905 kg 1995 lbs.

Trunk (boot) space - minimum

1728 l 61 cu. ft.

Fuel tank capacity

98 l 25.89 US gal | 21.56 UK gal

Permitted trailer load with brakes (12%)

3039 kg 6700 lbs.

Dimensions

Length

5829 mm 229.49 in.

Width including mirrors

2032 mm 80 in.

Height

1876 mm 73.86 in.

Wheelbase

3645 mm 143.5 in.

Front track

1750 mm 68.9 in.

Rear (Back) track

1716 mm 67.56 in.

Ride height (ground clearance)

216 mm 8.5 in.

Minimum turning circle (turning diameter)

14.3 m 46.92 ft.

Approach angle

16.2°

Departure angle

23.1°

Ramp-over (brakeover) angle

18.9°

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

6 gears, automatic transmission Hydra-Matic

Front suspension

Independent coil spring

Rear suspension

Rigid axle suspension, Leaf spring

Front brakes

Ventilated discs, 330x30 mm

Rear brakes

Ventilated discs, 345x20 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

245/70 R17; 265/70 R17

Wheel rims size

8J x 17

Specs of GMC Sierra 1500 IV (GMTK2XX) Double Cab 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel /2013, 2014, 2015/
