GMC Envoy II XL (GMT360) - Technical Specs, Fuel consumption, Dimensions
GMC Envoy II XL (GMT360) - Technical Specs, Fuel consumption, Dimensions

Fuel consumption & economy, Dimensions, technical data

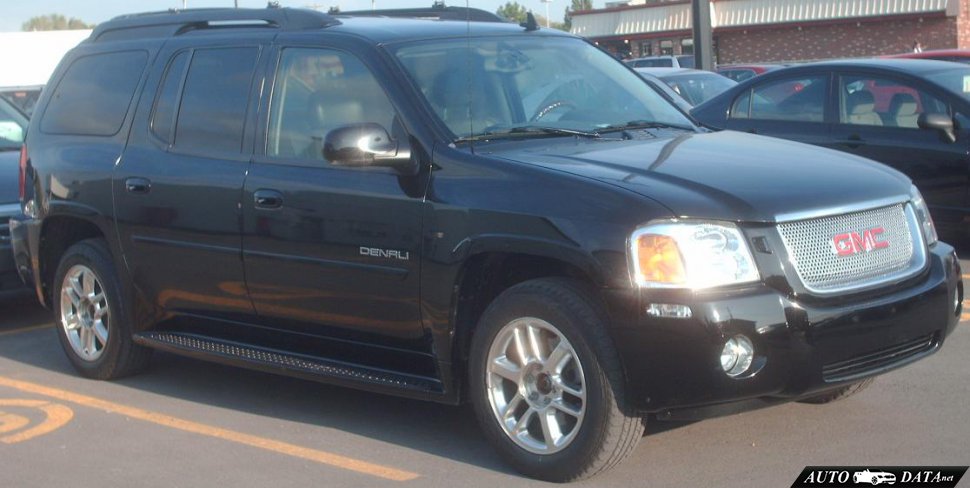

(2003-2004) GMC Envoy II XL (GMT360) 5.3i V8 (290 Hp) 4x4 Automatic

General information

BrandGMC
Model Envoy
Generation Envoy II XL (GMT360)
Modification (Engine) 5.3i V8 (290 Hp) 4x4 Automatic
Start of production 2003 year
End of production 2004 year
Body type SUV
Seats 7
Doors 5

Performance specs

Fuel Type Petrol (Gasoline)

Engine specs

Power 290 hp @ 5200 rpm.
Torque 441 Nm @ 4000 rpm. 325.26 lb.-ft. @ 4000 rpm.
Maximum engine speed 5900 rpm.
Engine location Front, Longitudinal
Model Engine LM4 Vortec 5300
Engine displacement 5328 cm3 325.13 cu. in.
Number of cylinders 8
Position of cylinders V engine
Cylinder Bore 96 mm 3.78 in.
Piston Stroke 92 mm 3.62 in.
Compression ratio 9.5
Number of valves per cylinder 2
Fuel System Multi-point indirect injection
Valvetrain OHV
Engine oil capacity 6.6 l 6.97 US qt | 5.81 UK qt
Coolant 17 l 17.96 US qt | 14.96 UK qt

Space, Volume and weights

Kerb Weight 2393 kg 5275.66 lbs.
Max. weight 2903 kg 6400.02 lbs.
Trunk (boot) space - minimum 631 l 22.28 cu. ft.
Trunk (boot) space - maximum 2839 l 100.26 cu. ft.
Fuel tank capacity 96.1 l 25.39 US gal | 21.14 UK gal
Permitted trailer load with brakes (12%) 3175 kg 6999.68 lbs.

Dimensions

Length 5271 mm 207.52 in.
Width 1897 mm 74.69 in.
Height 1917 mm 75.47 in.
Wheelbase 3275 mm 128.94 in.
Front track 1603 mm 63.11 in.
Rear (Back) track 1576 mm 62.05 in.
Ride height 203 mm 7.99 in.
Minimum turning circle (turning diameter) 12.6 m 41.34 ft.
Approach angle 34.1°
Departure angle 23.6°

Drivetrain, brakes and suspension specs

Drive wheel All wheel drive (4x4)
Number of Gears (automatic transmission) 4 Hydra-Matic
Front suspension Double wishbone
Rear suspension Multi-link independent
Front brakesVentilated discs
Rear brakesDisc
ABS yes
Steering type Steering rack
Power steering Hydraulic Steering
Tires size 245/65 R17
Wheel rims size 7.0J x 17

FAQ

What is the body type?

SUV, 5 Doors, 7 Seats

How much power?

290 hp, 441 Nm | 325.26 lb.-ft.

What is the drivetrain?

All wheel drive (4x4)

What is the engine size?
How many cylinders?

8, V engine

How long is this vehicle?

5271 mm | 207.52 in.

How wide is the vehicle?

1897 mm | 74.69 in.

What is the curb weigh?

2393 kg | 5275.66 lbs.

What is the gross weigh?

2903 kg | 6400.02 lbs.

How much trunk (boot) space?

631 - 2839 l | 22.28 - 100.26 cu. ft.

How many gears?

4

What type is the gearbox?
