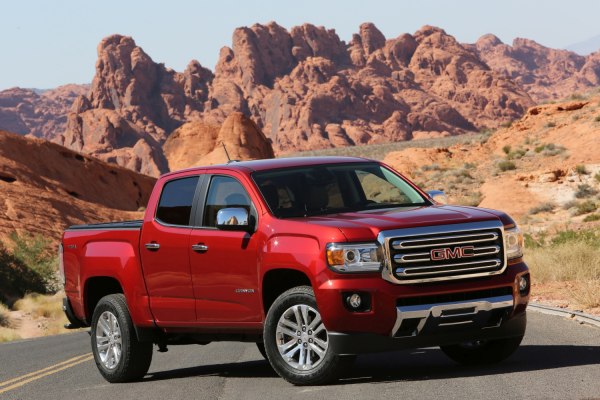

GMC Canyon II Crew cab 3.6 V6 (308 Hp) 4WD Automatic | Technical specs, data, fuel consumption, Dimensions

Key specs

GMC Canyon II Crew cab 3.6 V6 (308 Hp) 4WD Automatic /Pick-up 2017 - 2020/

What is the body type of GMC Canyon II Crew cab?

Pick-up, 4 Doors, 5 Seats

What is the power output of GMC Canyon Pick-up 2017 3.6 V6 (308 Hp) 4WD Automatic?

308 Hp, 373 Nm
275 lb.-ft.

What is the engine displacement of GMC Canyon Pick-up 2017 3.6 V6 (308 Hp) 4WD Automatic?

3.6 l
3564 cm³
217.49 cu. in.

What is the number of cylinders in 2017 GMC 3.6 V6 (308 Hp) 4WD Automatic?

6, V-engine

What is the drivetrain of GMC Canyon II Crew cab Pick-up 2017 3.6 V6 (308 Hp) 4WD Automatic?

All wheel drive (4x4). Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.

What is the length of 2017 GMC Canyon Pick-up?

5395 mm
212.4 in.

What is the width of 2017 GMC Canyon Pick-up?

1886 mm
74.25 in.

What is the kerb weight of 2017 GMC Canyon II Crew cab 3.6 V6 (308 Hp) 4WD Automatic?

1882 kg
4149 lbs.

What is the maximum permissible mass of 2017 GMC Canyon II Crew cab 3.6 V6 (308 Hp) 4WD Automatic?

2812 kg
6199 lbs.

What is the trunk (boot) capacity of 2017 GMC Canyon Pick-up?

1169 l
41.3 cu. ft.

What are the number of gears and the gearbox type of 2017 GMC Canyon II Crew cab 3.6 V6 (308 Hp) 4WD Automatic?

8, automatic transmission Hydra-Matic

GMC
- GMC Canyon
  - Canyon II Crew cab

Compare

General information

Brand

GMC

Model

Canyon

Generation

Canyon II Crew cab

Modification (Engine)

3.6 V6 (308 Hp) 4WD Automatic

Start of production

2017

End of production

2020

Powertrain Architecture

Internal Combustion engine

Body type

Pick-up

Seats

Doors

Looking for GMC Canyon on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

13.8 l/100 km 17 US mpg
20.5 UK mpg
7.2 km/l

Fuel consumption (economy) - extra urban

9.8 l/100 km 24 US mpg
28.8 UK mpg
10.2 km/l

Fuel Type

Petrol (Gasoline)

Weight-to-power ratio

6.1 kg/Hp, 163.7 Hp/tonne

Weight-to-torque ratio

5 kg/Nm, 198.2 Nm/tonne

Engine specs

Power

308 Hp @ 6800 rpm.

Power per litre

86.4 Hp/l

Torque

373 Nm @ 4000 rpm. 275 lb.-ft. @ 4000 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

LFX

Engine displacement

3564 cm³ 217.49 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

94 mm 3.7 in.

Piston Stroke

85.6 mm 3.37 in.

Compression ratio

11.5:1

Number of valves per cylinder

Fuel injection system

Direct injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC, CVVT

Engine oil capacity

5.7 l 6.02 US qt | 5.02 UK qt

Engine oil specification

Coolant

10.6 l 11.2 US qt | 9.33 UK qt

Volume and weights

Kerb Weight

1882 kg 4149 lbs.

Max. weight

2812 kg 6199 lbs.

Max load

930 kg 2050 lbs.

Trunk (boot) space - maximum

1169 l 41.3 cu. ft.

Fuel tank capacity

79.5 l 21 US gal | 17.49 UK gal

Permitted trailer load with brakes (12%)

3175 kg 7000 lbs.

Dimensions

Length

5395 mm 212.4 in.

Width

1886 mm 74.25 in.

Height

1795 mm 70.67 in.

Wheelbase

3258 mm 128.27 in.

Front track

1586 mm 62.44 in.

Rear (Back) track

1586 mm 62.44 in.

Ride height (ground clearance)

208 mm 8.19 in.

Minimum turning circle (turning diameter)

12.6 m 41.34 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

8 gears, automatic transmission Hydra-Matic

Front suspension

Independent coil spring

Rear suspension

Rigid axle suspension, Leaf spring

Front brakes

Disc, 310x27 mm

Rear brakes

Disc, 324x18 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

265/70 R16; 255/65 R17; 265/60 R18

Wheel rim size

7J x 16; 8J x 17; 8.5J x 18

Specs of GMC Canyon II Crew cab 3.6 V6 (308 Hp) 4WD Automatic /2017, 2018, 2019, 2020/
