Geometry C 70 kWh (204 Hp) Electric | Technical specs, data, battery, electric range, Dimensions

Key specs

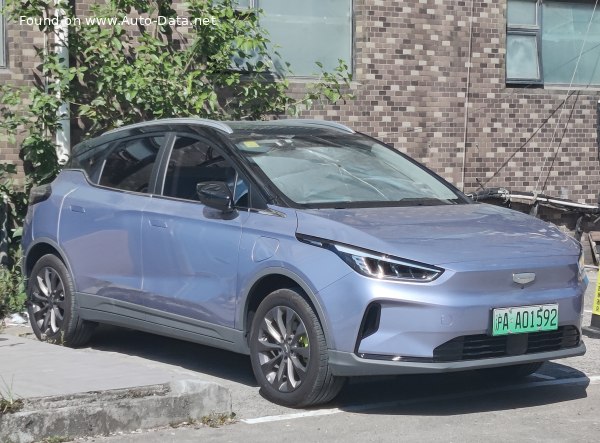

Geometry C 70 kWh (204 Hp) Electric /SUV 2019 - 2022/

What is the body type of Geometry C?

SUV, 5 Doors, 5 Seats

What is the all-electric range of 70 kWh (204 Hp) Electric?

550 km
342 mi

What is the electricity consumption of Geometry C 70 kWh (204 Hp) Electric?

16.5 kWh/100 km
26.55 kWh/100 mi
127 MPGe
6.1 km/kWh
3.8 mi/kWh

How fast is 2019 C 70 kWh (204 Hp) Electric?

150 km/h | 93 mph
0-100 km/h: 7 sec
0-60 mph: 6.7 sec

What is the power output of Geometry C/M6 SUV 2019 70 kWh (204 Hp) Electric?

204 Hp, 310 Nm
229 lb.-ft.

What is the drivetrain of Geometry C SUV 2019 70 kWh (204 Hp) Electric?

Front wheel drive. BEV (Electric Vehicle). One electric motor drives the front wheels.

What is the length of 2019 Geometry C/M6 SUV?

4432 mm
174.49 in.

What is the width of 2019 Geometry C/M6 SUV?

1833 mm
72.17 in.

What is the kerb weight of 2019 Geometry C 70 kWh (204 Hp) Electric?

1665 kg
3671 lbs.

What is the trunk (boot) capacity of 2019 Geometry C/M6 SUV?

340 - 1150 l
12 - 40.6 cu. ft.

What are the number of gears and the gearbox type of 2019 Geometry C 70 kWh (204 Hp) Electric?

1, automatic transmission

Geometry
- Geometry C/M6
  - C
    - 70 kWh (204 Hp) Electric
    - 53 kWh (204 Hp) Electric

Compare

General information

Brand

Geometry

Model

C/M6

Generation

Modification (Engine)

70 kWh (204 Hp) Electric

Start of production

2019

End of production

September, 2022

Powertrain Architecture

BEV (Electric Vehicle)

Body type

SUV

Seats

Doors

Looking for Geometry C/M6 on the used-car market?

Check its history →

Performance specs

Fuel Type

Electricity

Acceleration 0 - 100 km/h

7 sec

Acceleration 0 - 62 mph

7 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

6.7 sec

Maximum speed

150 km/h 93 mph

Weight-to-power ratio

8.2 kg/Hp, 122.5 Hp/tonne

Weight-to-torque ratio

5.4 kg/Nm, 186.2 Nm/tonne

Electric and hybrid car specs

Gross battery capacity

70 kWh

Battery technology

Lithium-ion (Li-Ion)

Battery location

Below the floor

Electric range (NEDC)

550 km 342 mi

Average Energy consumption (WLTP)

16.5 kWh/100 km 26.55 kWh/100 mi
127 MPGe
6.1 km/kWh
3.8 mi/kWh

Charging ports

Electric motor 1

Electric motor power

204 Hp

Electric motor Torque

310 Nm 229 lb.-ft.

Electric motor location

Front axle, Transverse

Electric motor type

Synchronous

System power

204 Hp

System torque

310 Nm 229 lb.-ft.

Volume and weights

Kerb Weight

1665 kg 3671 lbs.

Trunk (boot) space - minimum

340 l 12 cu. ft.

Trunk (boot) space - maximum

1150 l 40.6 cu. ft.

Dimensions

Length

4432 mm 174.49 in.

Width

1833 mm 72.17 in.

Height

1560 mm 61.42 in.

Wheelbase

2700 mm 106.3 in.

Ride height (ground clearance)

140 mm 5.51 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

One electric motor drives the front wheels.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

1 gears, automatic transmission

Front suspension

Independent, McPherson type

Rear suspension

Torsion bar

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

225/50 R17; 225/45 R18

Wheel rim size

17; 18

Specs of Geometry C 70 kWh (204 Hp) Electric /2019, 2020, 2021, 2022/
