Geely X3 1.5L (102 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

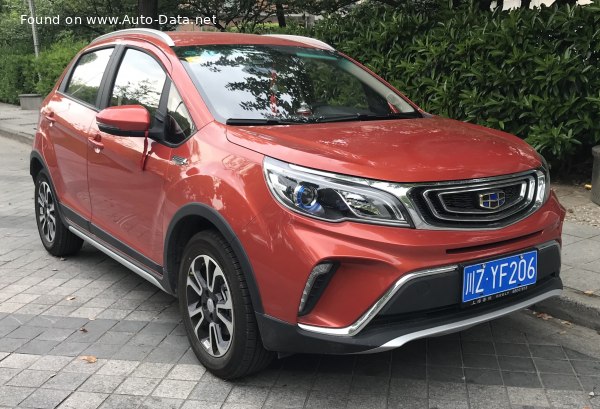

Geely X3 1.5L (102 Hp) /CUV (Crossover Utility Vehicle) 2017 - 2021/

What is the body type of Geely X3?

CUV (Crossover Utility Vehicle), 5 Doors, 5 Seats

What is the fuel consumption and economy of Geely X3 1.5L (102 Hp)?

5.6 l/100 km
42 US mpg
50.4 UK mpg
17.9 km/l

How environmentally friendly is Geely X3 1.5L (102 Hp)?

China V

What is the power output of Geely X3 CUV (Crossover Utility Vehicle) 2017 1.5L (102 Hp)?

102 Hp, 141 Nm
104 lb.-ft.

What is the engine displacement of Geely X3 CUV (Crossover Utility Vehicle) 2017 1.5L (102 Hp)?

1.5 l
1498 cm³
91.41 cu. in.

What is the number of cylinders in 2017 Geely 1.5L (102 Hp)?

4, Inline

What is the drivetrain of Geely X3 CUV (Crossover Utility Vehicle) 2017 1.5L (102 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2017 Geely X3 CUV (Crossover Utility Vehicle)?

4005 mm
157.68 in.

What is the width of 2017 Geely X3 CUV (Crossover Utility Vehicle)?

1760 mm
69.29 in.

What is the kerb weight of 2017 Geely X3 1.5L (102 Hp)?

1180 kg
2601 lbs.

What is the trunk (boot) capacity of 2017 Geely X3 CUV (Crossover Utility Vehicle)?

400 l
14.1 cu. ft.

What are the number of gears and the gearbox type of 2017 Geely X3 1.5L (102 Hp)?

5, manual transmission

Geely
- Geely X3
  - X3
    - 1.5L (109 Hp) CVT
    - 1.5L (109 Hp)
    - 1.5L (102 Hp) Automatic
    - 1.5L (102 Hp)

Compare

General information

Brand

Geely

Model

Generation

Modification (Engine)

1.5L (102 Hp)

Start of production

July, 2017

End of production

April, 2021

Powertrain Architecture

Internal Combustion engine

Body type

CUV (Crossover Utility Vehicle)

Seats

Doors

Looking for Geely X3 on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

8.2 l/100 km 28.7 US mpg
34.4 UK mpg
12.2 km/l

Fuel consumption (economy) - extra urban

4.4 l/100 km 53.5 US mpg
64.2 UK mpg
22.7 km/l

Fuel consumption (economy) - combined

5.6 l/100 km 42 US mpg
50.4 UK mpg
17.9 km/l

Fuel Type

Petrol (Gasoline)

Emission standard

China V

Weight-to-power ratio

11.6 kg/Hp, 86.4 Hp/tonne

Weight-to-torque ratio

8.4 kg/Nm, 119.5 Nm/tonne

Engine specs

Power

102 Hp @ 6000 rpm.

Power per litre

68.1 Hp/l

Torque

141 Nm @ 3800-4200 rpm. 104 lb.-ft. @ 3800-4200 rpm.

Engine layout

Front, Transverse

Engine Model/Code

JLB-4G15

Engine displacement

1498 cm³ 91.41 cu. in.

Number of cylinders

Engine configuration

Inline

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Volume and weights

Kerb Weight

1180 kg 2601 lbs.

Trunk (boot) space - minimum

400 l 14.1 cu. ft.

Dimensions

Length

4005 mm 157.68 in.

Width

1760 mm 69.29 in.

Height

1575 mm 62.01 in.

Wheelbase

2480 mm 97.64 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Independent, McPherson type

Rear suspension

Torsion bar

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

205/60 R16

Wheel rim size

Specs of Geely X3 1.5L (102 Hp) /2017, 2018, 2019, 2020, 2021/
