Ford Transit Connect II (facelift 2018) Double Cab-in-Van L2 1.5 EcoBlue (100 Hp) Automatic | Technical specs, data, fuel consumption, Dimensions

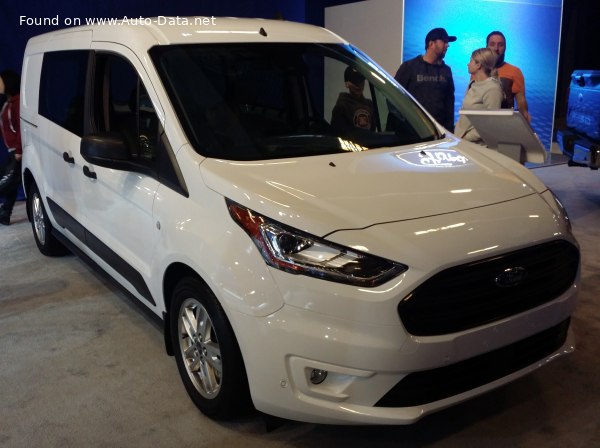

2019 Ford Transit Connect II (facelift 2018) Double Cab-in-Van L2 - Photo 1

Key specs

Ford Transit Connect II (facelift 2018) Double Cab-in-Van L2 1.5 EcoBlue (100 Hp) Automatic /Minivan 2018 - 2024/

What is the body type of Ford Transit Connect II (facelift 2018) Double Cab-in-Van L2?

Minivan, 5 Doors, 5 Seats

What is the fuel consumption and economy of Ford Transit Connect II (facelift 2018) Double Cab-in-Van L2 1.5 EcoBlue (100 Hp) Automatic?

6.5 l/100 km
36.2 US mpg
43.5 UK mpg
15.4 km/l

How environmentally friendly is Ford Transit Connect 1.5 EcoBlue (100 Hp) Automatic?

169 g/km CO₂
Euro 6d-TEMP-EVAP-ISC

What is the power output of Ford Transit Connect Minivan 2018 1.5 EcoBlue (100 Hp) Automatic?

100 Hp, 240 Nm
177 lb.-ft.

What is the engine displacement of Ford Transit Connect Minivan 2018 1.5 EcoBlue (100 Hp) Automatic?

1.5 l
1498 cm³
91.41 cu. in.

What is the number of cylinders in 2018 Ford 1.5 EcoBlue (100 Hp) Automatic?

4, Inline

What is the drivetrain of Ford Transit Connect II (facelift 2018) Double Cab-in-Van L2 Minivan 2018 1.5 EcoBlue (100 Hp) Automatic?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2018 Ford Transit Connect Minivan?

4825 mm
189.96 in.

What is the width of 2018 Ford Transit Connect Minivan?

1835 mm
72.24 in.

What is the kerb weight of 2018 Ford Transit Connect II (facelift 2018) Double Cab-in-Van L2 1.5 EcoBlue (100 Hp) Automatic?

1671-1760 kg
3684 - 3880 lbs.

What is the maximum permissible mass of 2018 Ford Transit Connect II (facelift 2018) Double Cab-in-Van L2 1.5 EcoBlue (100 Hp) Automatic?

2385-2445 kg
5258 - 5390 lbs.

What is the trunk (boot) capacity of 2018 Ford Transit Connect Minivan?

1600 l
56.5 cu. ft.

What are the number of gears and the gearbox type of 2018 Ford Transit Connect II (facelift 2018) Double Cab-in-Van L2 1.5 EcoBlue (100 Hp) Automatic?

8, automatic transmission

Ford
- Ford Transit Connect
  - Transit Connect II (facelift 2018) Double Cab-in-Van L2
    - 1.5 EcoBlue (120 Hp) Automatic
    - 1.5 EcoBlue (120 Hp)
    - 1.5 EcoBlue (100 Hp) Automatic
    - 1.5 EcoBlue (100 Hp)

Compare

General information

Brand

Ford

Model

Transit Connect

Generation

Transit Connect II (facelift 2018) Double Cab-in-Van L2

Modification (Engine)

1.5 EcoBlue (100 Hp) Automatic

Start of production

2018

End of production

2024

Powertrain Architecture

Internal Combustion engine

Body type

Minivan

Seats

Doors

Looking for Ford Transit Connect on the used-car market?

Check its history →

Performance specs

Fuel consumption at Low speed (WLTP)

7.4 l/100 km 31.8 US mpg
38.2 UK mpg
13.5 km/l

Fuel consumption at high speed (WLTP)

5.5 l/100 km 42.8 US mpg
51.4 UK mpg
18.2 km/l

Combined fuel consumption (WLTP)

6.5 l/100 km 36.2 US mpg
43.5 UK mpg
15.4 km/l

CO₂ emissions (WLTP)

169 g/km

Fuel consumption (economy) - urban (NEDC)

5.9-6.1 l/100 km 39.9 - 38.6 US mpg
47.9 - 46.3 UK mpg
16.9 - 16.4 km/l

Fuel consumption (economy) - extra urban (NEDC)

4.9-5.3 l/100 km 48 - 44.4 US mpg
57.6 - 53.3 UK mpg
20.4 - 18.9 km/l

Fuel consumption (economy) - combined (NEDC)

5.3-5.6 l/100 km 44.4 - 42 US mpg
53.3 - 50.4 UK mpg
18.9 - 17.9 km/l

CO₂ emissions (NEDC)

139-146 g/km

Fuel Type

Diesel

Emission standard

Euro 6d-TEMP-EVAP-ISC

Weight-to-power ratio

16.7 kg/Hp, 59.8 Hp/tonne

Weight-to-torque ratio

7 kg/Nm, 143.6 Nm/tonne

Engine specs

Power

100 Hp

Power per litre

66.8 Hp/l

Torque

240 Nm 177 lb.-ft.

Engine layout

Front, Transverse

Engine Model/Code

Z2GA

Engine displacement

1498 cm³ 91.41 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

75 mm 2.95 in.

Piston Stroke

84.8 mm 3.34 in.

Number of valves per cylinder

Fuel injection system

Diesel Commonrail

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Engine oil capacity

6 l 6.34 US qt | 5.28 UK qt

Engine oil specification

Coolant

7 l 7.4 US qt | 6.16 UK qt

Engine systems

Start & Stop System
Particulate filter

Volume and weights

Kerb Weight

1671-1760 kg 3684 - 3880 lbs.

Max. weight

2385-2445 kg 5258 - 5390 lbs.

Max load

685-714 kg 1510 - 1574 lbs.

Trunk (boot) space - minimum

1600 l 56.5 cu. ft.

Fuel tank capacity

60 l 15.85 US gal | 13.2 UK gal

AdBlue tank

17 l 4.49 US gal | 3.74 UK gal

Permitted trailer load with brakes (12%)

1350 kg 2976 lbs.

Permitted trailer load without brakes

750 kg 1653 lbs.

Dimensions

Length

4825 mm 189.96 in.

Width

1835 mm 72.24 in.

Width with mirrors folded

1967 mm 77.44 in.

Width including mirrors

2137 mm 84.13 in.

Height

1820-1847 mm 71.65 - 72.72 in.

Wheelbase

3062 mm 120.55 in.

Front track

1568 mm 61.73 in.

Rear (Back) track

1582 mm 62.28 in.

Front overhang

885 mm 34.84 in.

Rear overhang

878 mm 34.57 in.

Ride height (ground clearance)

144-160 mm 5.67 - 6.3 in.

Minimum turning circle (turning diameter)

12.5 m 41.01 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

8 gears, automatic transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Semi-independent beam with anti-roll bar

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

205/60 R16; 215/55 R16

Wheel rim size

6.5J x 16

Specs of Ford Transit Connect II (facelift 2018) Double Cab-in-Van L2 1.5 EcoBlue (100 Hp) Automatic /2018, 2019, 2020, 2021, 2022, 2023, 2024/
