Ford Mustang VI (facelift 2017) Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic | Technical specs, data, fuel consumption, Dimensions

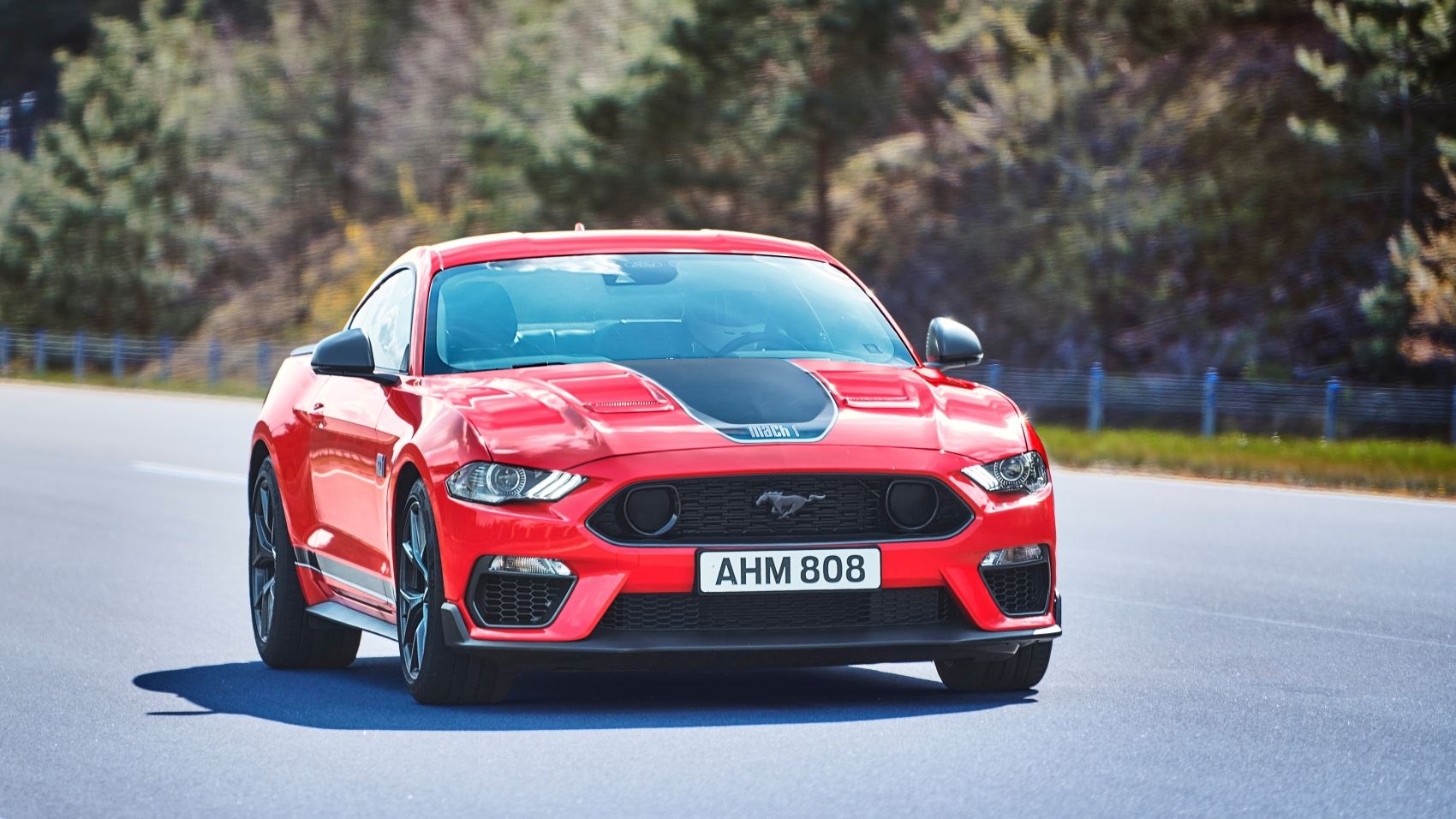

2018 Ford Mustang VI (facelift 2017) - Photo 1

Key specs

Ford Mustang VI (facelift 2017) Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic /Fastback 2020 - 2023/

What is the body type of Ford Mustang VI (facelift 2017)?

Fastback, 2 Doors, 4 Seats

What is the fuel consumption and economy of Ford Mustang VI (facelift 2017) Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?

11.7 l/100 km
20.1 US mpg
24.1 UK mpg
8.5 km/l

How environmentally friendly is Ford Mustang Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?

270 g/km CO₂

How fast is 2020 Mustang VI (facelift 2017) Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?

249 km/h | 155 mph
0-100 km/h: 4.4 sec
0-60 mph: 4.2 sec

What is the power output of Ford Mustang Fastback 2020 Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?

460 Hp, 529 Nm
390 lb.-ft.

What is the engine displacement of Ford Mustang Fastback 2020 Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?

5.0 l
5038 cm³
307.44 cu. in.

What is the number of cylinders in 2020 Ford Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?

8, V-engine

What is the drivetrain of Ford Mustang VI (facelift 2017) Fastback 2020 Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?

Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 2020 Ford Mustang Fastback?

4797 mm
188.86 in.

What is the width of 2020 Ford Mustang Fastback?

1916 mm
75.43 in.

What is the kerb weight of 2020 Ford Mustang VI (facelift 2017) Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?

1786 kg
3937 lbs.

What is the maximum permissible mass of 2020 Ford Mustang VI (facelift 2017) Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?

2150 kg
4740 lbs.

What is the trunk (boot) capacity of 2020 Ford Mustang Fastback?

408 l
14.4 cu. ft.

What are the number of gears and the gearbox type of 2020 Ford Mustang VI (facelift 2017) Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic?

10, automatic transmission

Ford
- Ford Mustang
  - Mustang VI (facelift 2017)

Compare

General information

Brand

Ford

Model

Mustang

Generation

Mustang VI (facelift 2017)

Modification (Engine)

Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic

Start of production

2020

End of production

2023

Powertrain Architecture

Internal Combustion engine

Body type

Fastback

Seats

Doors

Looking for Ford Mustang on the used-car market?

Check its history →

Performance specs

Combined fuel consumption (WLTP)

11.7 l/100 km 20.1 US mpg
24.1 UK mpg
8.5 km/l

CO₂ emissions (WLTP)

270 g/km

Fuel consumption (economy) - urban

15.7 l/100 km 15 US mpg
18 UK mpg
6.4 km/l

Fuel consumption (economy) - extra urban

10.2 l/100 km 23.1 US mpg
27.7 UK mpg
9.8 km/l

Fuel consumption (economy) - combined

13.1 l/100 km 18 US mpg
21.6 UK mpg
7.6 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

4.4 sec

Acceleration 0 - 62 mph

4.4 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

4.2 sec

Maximum speed

249 km/h 155 mph

100 km/h - 0

31.9 m

Weight-to-power ratio

3.9 kg/Hp, 257.6 Hp/tonne

Weight-to-torque ratio

3.4 kg/Nm, 296.2 Nm/tonne

Engine specs

Power

460 Hp @ 7250 rpm.

Power per litre

91.3 Hp/l

Torque

529 Nm @ 4900 rpm. 390 lb.-ft. @ 4900 rpm.

Engine layout

Front, Longitudinal

Engine displacement

5038 cm³ 307.44 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

93 mm 3.66 in.

Piston Stroke

92.7 mm 3.65 in.

Compression ratio

12:1

Number of valves per cylinder

Fuel injection system

Direct injection and Multi-port manifold injection

Valvetrain

DOHC, Ti-VCT

Engine oil capacity

9.5 l 10.04 US qt | 8.36 UK qt

Engine oil specification

Coolant

12.88 l 13.61 US qt | 11.33 UK qt

Engine systems

Particulate filter

Volume and weights

Kerb Weight

1786 kg 3937 lbs.

Max. weight

2150 kg 4740 lbs.

Max load

364 kg 802 lbs.

Trunk (boot) space - minimum

408 l 14.4 cu. ft.

Fuel tank capacity

61 l 16.11 US gal | 13.42 UK gal

Dimensions

Length

4797 mm 188.86 in.

Width

1916 mm 75.43 in.

Width with mirrors folded

1957 mm 77.05 in.

Width including mirrors

2081 mm 81.93 in.

Height

1382 mm 54.41 in.

Wheelbase

2720 mm 107.09 in.

Front track

1594 mm 62.76 in.

Rear (Back) track

1646 mm 64.8 in.

Ride height (ground clearance)

120 mm 4.72 in.

Minimum turning circle (turning diameter)

12.2 m 40.03 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

10 gears, automatic transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Independent multi-link spring suspension with anti-roll bar

Front brakes

Ventilated discs, 380x34 mm

Rear brakes

Ventilated discs, 330x25 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

Front wheel tires: 255/40 R19
Rear wheel tires: 275/40 R19

Wheel rim size

Front wheel rims: 9.5J x 19
Rear wheel rims: 10J x 19

Specs of Ford Mustang VI (facelift 2017) Mach 1 5.0 Ti-VCT V8 (460 Hp) Automatic /2020, 2021, 2022, 2023/
