Ford Galaxy I 1.9 TDI (110 Hp) Automatic | Technical specs, data, fuel consumption, Dimensions

Key specs

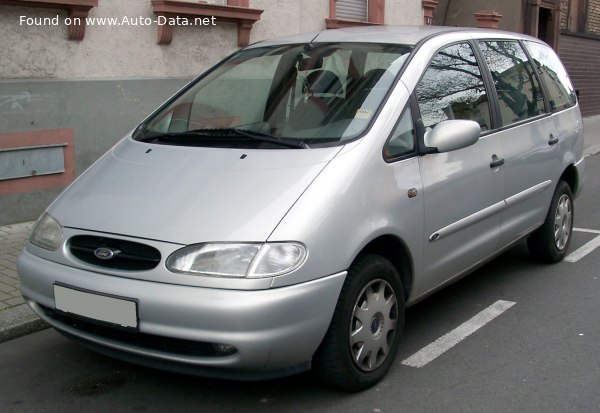

Ford Galaxy I 1.9 TDI (110 Hp) Automatic /Minivan 1997 - 2000/

What is the body type of Ford Galaxy I?

Minivan, 5 Doors, 7 Seats

What is the fuel consumption and economy of Ford Galaxy I 1.9 TDI (110 Hp) Automatic?

8.5 l/100 km
27.7 US mpg
33.2 UK mpg
11.8 km/l

How fast is 1997 Galaxy I 1.9 TDI (110 Hp) Automatic?

169 km/h | 105 mph
0-100 km/h: 14.7 sec
0-60 mph: 14 sec

What is the power output of Ford Galaxy Minivan 1997 1.9 TDI (110 Hp) Automatic?

110 Hp, 235 Nm
173 lb.-ft.

What is the engine displacement of Ford Galaxy Minivan 1997 1.9 TDI (110 Hp) Automatic?

1.9 l
1896 cm³
115.7 cu. in.

What is the number of cylinders in 1997 Ford 1.9 TDI (110 Hp) Automatic?

4, Inline

What is the drivetrain of Ford Galaxy I Minivan 1997 1.9 TDI (110 Hp) Automatic?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 1997 Ford Galaxy Minivan?

4641 mm
182.72 in.

What is the width of 1997 Ford Galaxy Minivan?

1810 mm
71.26 in.

What is the kerb weight of 1997 Ford Galaxy I 1.9 TDI (110 Hp) Automatic?

1640 kg
3616 lbs.

What is the maximum permissible mass of 1997 Ford Galaxy I 1.9 TDI (110 Hp) Automatic?

2400 kg
5291 lbs.

What is the trunk (boot) capacity of 1997 Ford Galaxy Minivan?

266 - 2610 l
9.4 - 92.2 cu. ft.

What are the number of gears and the gearbox type of 1997 Ford Galaxy I 1.9 TDI (110 Hp) Automatic?

4, automatic transmission

Ford
- Ford Galaxy
  - Galaxy I

Compare

General information

Brand

Ford

Model

Galaxy

Generation

Galaxy I

Modification (Engine)

1.9 TDI (110 Hp) Automatic

Start of production

1997

End of production

2000

Powertrain Architecture

Internal Combustion engine

Body type

Minivan

Seats

Doors

Looking for Ford Galaxy on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

10.5 l/100 km 22.4 US mpg
26.9 UK mpg
9.5 km/l

Fuel consumption (economy) - extra urban

6.5 l/100 km 36.2 US mpg
43.5 UK mpg
15.4 km/l

Fuel consumption (economy) - combined

8.5 l/100 km 27.7 US mpg
33.2 UK mpg
11.8 km/l

Fuel Type

Diesel

Acceleration 0 - 100 km/h

14.7 sec

Acceleration 0 - 62 mph

14.7 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

14 sec

Maximum speed

169 km/h 105 mph

Weight-to-power ratio

14.9 kg/Hp, 67.1 Hp/tonne

Weight-to-torque ratio

7 kg/Nm, 143.3 Nm/tonne

Engine specs

Power

110 Hp @ 4150 rpm.

Power per litre

58 Hp/l

Torque

235 Nm @ 1900 rpm. 173 lb.-ft. @ 1900 rpm.

Engine layout

Front, Transverse

Engine Model/Code

AFN, AVG

Engine displacement

1896 cm³ 115.7 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

79.5 mm 3.13 in.

Piston Stroke

95.5 mm 3.76 in.

Compression ratio

19.5:1

Number of valves per cylinder

Fuel injection system

Direct injection

Engine aspiration

Turbocharger, Intercooler

Valvetrain

SOHC

Engine oil capacity

4.3 l 4.54 US qt | 3.78 UK qt

Engine oil specification

Volume and weights

Kerb Weight

1640 kg 3616 lbs.

Max. weight

2400 kg 5291 lbs.

Max load

760 kg 1676 lbs.

Trunk (boot) space - minimum

266 l 9.4 cu. ft.

Trunk (boot) space - maximum

2610 l 92.2 cu. ft.

Fuel tank capacity

75 l 19.81 US gal | 16.5 UK gal

Dimensions

Length

4641 mm 182.72 in.

Width

1810 mm 71.26 in.

Height

1730 mm 68.11 in.

Wheelbase

2835 mm 111.61 in.

Front track

1530 mm 60.24 in.

Rear (Back) track

1524 mm 60 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

4 gears, automatic transmission

Front suspension

Wishbone

Rear suspension

Coil spring

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

195/65 R15

Wheel rim size

Specs of Ford Galaxy I 1.9 TDI (110 Hp) Automatic /1997, 1998, 1999, 2000/
