Ford Fusion I 1.6 Duratec (100 Hp) Automatic | Technical specs, data, fuel consumption, Dimensions

Key specs

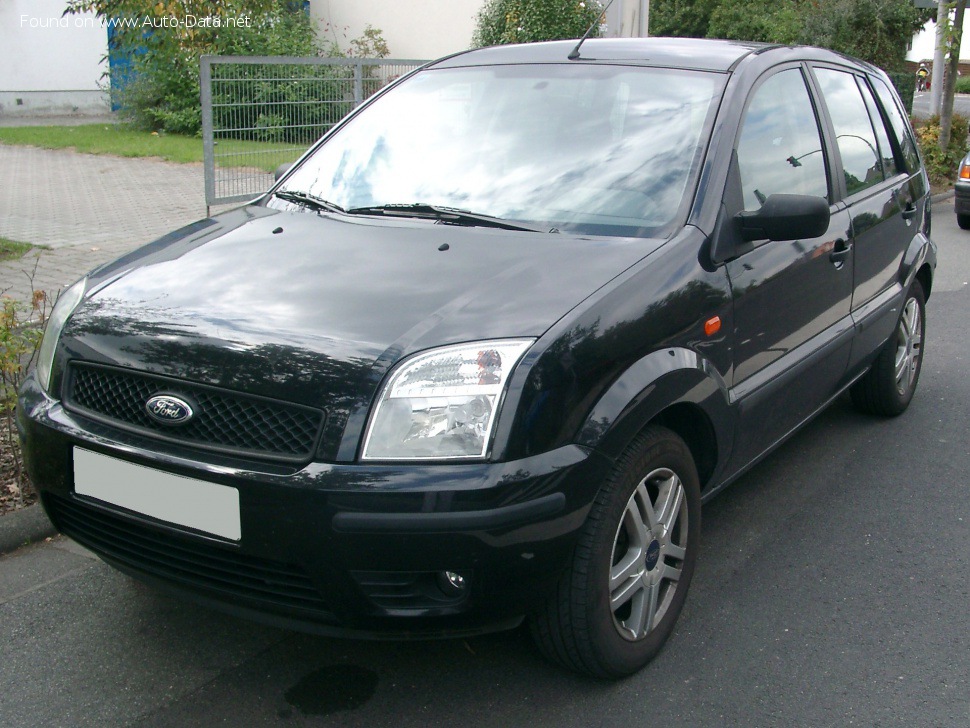

Ford Fusion I 1.6 Duratec (100 Hp) Automatic /Hatchback 2002 - 2005/

What is the body type of Ford Fusion I?

Hatchback, 5 Doors, 5 Seats

What is the fuel consumption and economy of Ford Fusion I 1.6 Duratec (100 Hp) Automatic?

7.6 l/100 km
30.9 US mpg
37.2 UK mpg
13.2 km/l

How environmentally friendly is Ford Fusion 1.6 Duratec (100 Hp) Automatic?

Euro 4

How fast is 2002 Fusion I 1.6 Duratec (100 Hp) Automatic?

176 km/h | 109 mph
0-100 km/h: 13.1 sec
0-60 mph: 12.4 sec

What is the power output of Ford Fusion Hatchback 2002 1.6 Duratec (100 Hp) Automatic?

100 Hp, 143 Nm
105 lb.-ft.

What is the engine displacement of Ford Fusion Hatchback 2002 1.6 Duratec (100 Hp) Automatic?

1.6 l
1596 cm³
97.39 cu. in.

What is the number of cylinders in 2002 Ford 1.6 Duratec (100 Hp) Automatic?

4, Inline

What is the drivetrain of Ford Fusion I Hatchback 2002 1.6 Duratec (100 Hp) Automatic?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2002 Ford Fusion Hatchback?

4020 mm
158.27 in.

What is the width of 2002 Ford Fusion Hatchback?

1708 mm
67.24 in.

What is the kerb weight of 2002 Ford Fusion I 1.6 Duratec (100 Hp) Automatic?

1080 kg
2381 lbs.

What is the maximum permissible mass of 2002 Ford Fusion I 1.6 Duratec (100 Hp) Automatic?

1605 kg
3538 lbs.

What is the trunk (boot) capacity of 2002 Ford Fusion Hatchback?

337 - 1175 l
11.9 - 41.5 cu. ft.

What are the number of gears and the gearbox type of 2002 Ford Fusion I 1.6 Duratec (100 Hp) Automatic?

4, automatic transmission

Ford
- Ford Fusion
  - Fusion I
    - 1.6 TDCi (90 Hp)
    - 1.6 Duratec (100 Hp) Automatic
    - 1.6 Duratec (100 Hp)
    - 1.4 TDCi (68 Hp) Automatic
    - 1.4 TDCi (68 Hp)
    - 1.4 Duratec (80 Hp) Automatic
    - 1.4 Duratec (80 Hp)
    - 1.2 (75 Hp)

Compare

General information

Brand

Ford

Model

Fusion

Generation

Fusion I

Modification (Engine)

1.6 Duratec (100 Hp) Automatic

Start of production

2002

End of production

2005

Powertrain Architecture

Internal Combustion engine

Body type

Hatchback

Seats

Doors

Looking for Ford Fusion on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

10.3 l/100 km 22.8 US mpg
27.4 UK mpg
9.7 km/l

Fuel consumption (economy) - extra urban

6.1 l/100 km 38.6 US mpg
46.3 UK mpg
16.4 km/l

Fuel consumption (economy) - combined

7.6 l/100 km 30.9 US mpg
37.2 UK mpg
13.2 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

13.1 sec

Acceleration 0 - 62 mph

13.1 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

12.4 sec

Maximum speed

176 km/h 109 mph

Emission standard

Euro 4

Weight-to-power ratio

10.8 kg/Hp, 92.6 Hp/tonne

Weight-to-torque ratio

7.6 kg/Nm, 132.4 Nm/tonne

Engine specs

Power

100 Hp @ 6000 rpm.

Power per litre

62.7 Hp/l

Torque

143 Nm @ 4000 rpm. 105 lb.-ft. @ 4000 rpm.

Engine layout

Front, Transverse

Engine Model/Code

FYJA, FYJB, FYJC

Engine displacement

1596 cm³ 97.39 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

79 mm 3.11 in.

Piston Stroke

81.4 mm 3.2 in.

Compression ratio

11:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC

Engine oil capacity

4.25 l 4.49 US qt | 3.74 UK qt

Engine oil specification

Coolant

5 l 5.28 US qt | 4.4 UK qt

Volume and weights

Kerb Weight

1080 kg 2381 lbs.

Max. weight

1605 kg 3538 lbs.

Max load

525 kg 1157 lbs.

Trunk (boot) space - minimum

337 l 11.9 cu. ft.

Trunk (boot) space - maximum

1175 l 41.5 cu. ft.

Fuel tank capacity

45 l 11.89 US gal | 9.9 UK gal

Dimensions

Length

4020 mm 158.27 in.

Width

1708 mm 67.24 in.

Height

1503 mm 59.17 in.

Wheelbase

2488 mm 97.95 in.

Front track

1472 mm 57.95 in.

Rear (Back) track

1435 mm 56.5 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

4 gears, automatic transmission

Front suspension

Suspension strut

Rear suspension

Coil spring

Front brakes

Disc

Rear brakes

Drum

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

195/60 R15

Specs of Ford Fusion I 1.6 Duratec (100 Hp) Automatic /2002, 2003, 2004, 2005/
