FordFord F-Series F-150 XIV SuperCrew (facelift 2023) 5.0 V8 (400 Hp) SelectShift2023, 2024, 2025, 2026: specs, Fuel consumption, Dimensions

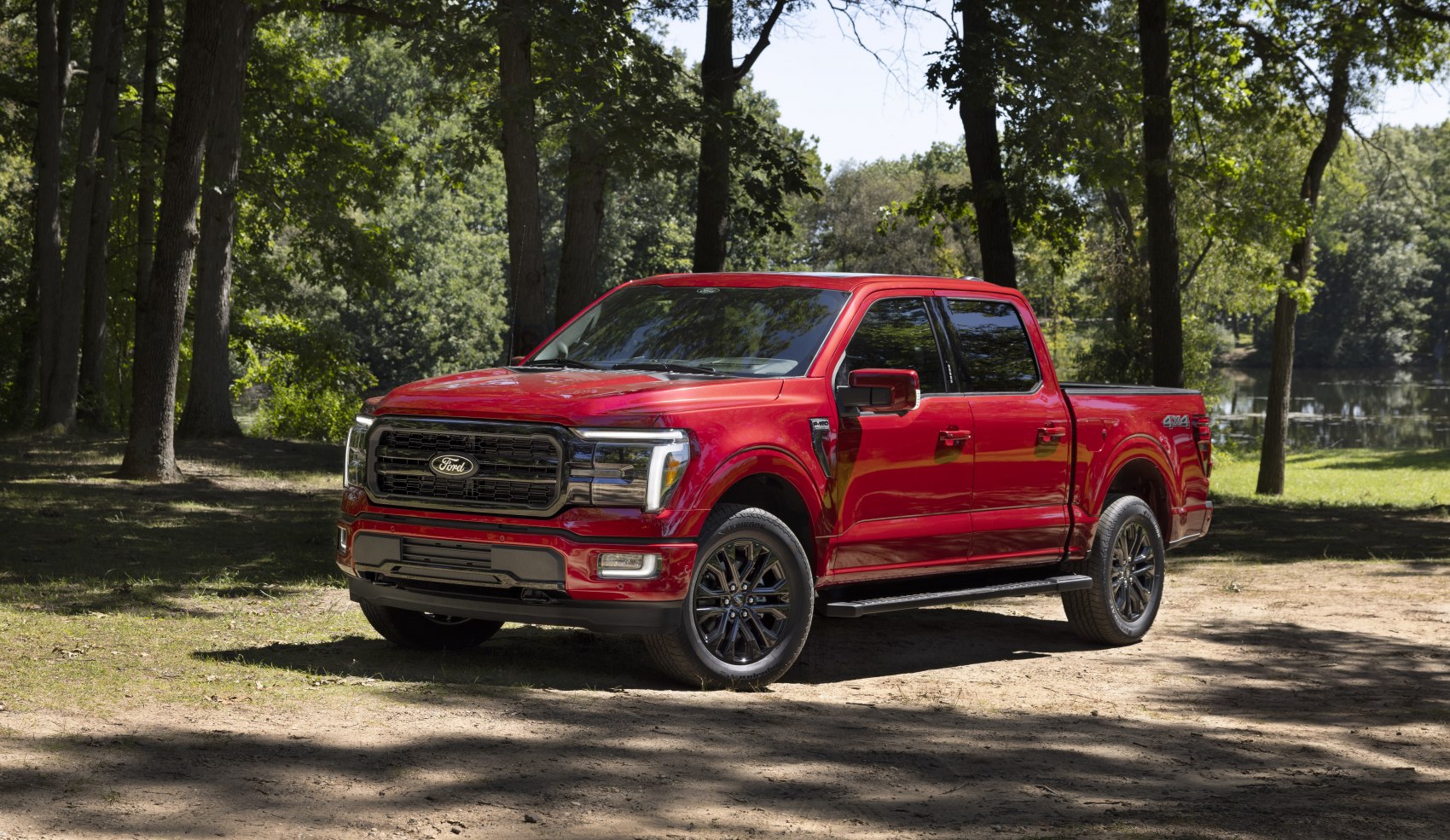

2024 Ford F-Series F-150 XIV SuperCrew (facelift 2023) - Photo 1
Ford F-Series F-150 XIV SuperCrew (facelift 2023) - Photo 2Ford F-Series F-150 XIV SuperCrew (facelift 2023) - Photo 3Ford F-Series F-150 XIV SuperCrew (facelift 2023) - Photo 4Ford F-Series F-150 XIV SuperCrew (facelift 2023) - Photo 5Ford F-Series F-150 XIV SuperCrew (facelift 2023) - Photo 6Ford F-Series F-150 XIV SuperCrew (facelift 2023) - Photo 7Ford F-Series F-150 XIV SuperCrew (facelift 2023) - Photo 8Ford F-Series F-150 XIV SuperCrew (facelift 2023) - Photo 9Ford F-Series F-150 XIV SuperCrew (facelift 2023) - Photo 10

Key specs

Ford F-Series F-150 XIV SuperCrew (facelift 2023) 5.0 V8 (400 Hp) SelectShift /Pick-up 2023 - /
What is the body type of Ford F-Series F-150 XIV SuperCrew (facelift 2023)?
Pick-up, 4 Doors, 5-6 Seats
What is the fuel consumption and economy of Ford F-Series F-150 XIV SuperCrew (facelift 2023) 5.0 V8 (400 Hp) SelectShift?
12.4 l/100 km
19 US mpg
22.8 UK mpg
8.1 km/l
What is the power output of Ford F-Series F-100/F-150 Pick-up 2023 5.0 V8 (400 Hp) SelectShift?
400 Hp, 556 Nm
410 lb.-ft.
What is the engine displacement of Ford F-Series F-100/F-150 Pick-up 2023 5.0 V8 (400 Hp) SelectShift?
5.0 l
5038 cm3
307.44 cu. in.
What is the number of cylinders in 2023 Ford 5.0 V8 (400 Hp) SelectShift?
8, V-engine
What is the drivetrain of Ford F-Series F-150 XIV SuperCrew (facelift 2023) Pick-up 2023 5.0 V8 (400 Hp) SelectShift?
Rear wheel drive. ICE. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
What is the length of 2023 Ford F-Series F-100/F-150 Pick-up?
5893 mm
232.01 in.
What is the width of 2023 Ford F-Series F-100/F-150 Pick-up?
2029 mm
79.88 in.
What is the kerb weight of 2023 Ford F-Series F-150 XIV SuperCrew (facelift 2023) 5.0 V8 (400 Hp) SelectShift?
2163 kg
4769 lbs.
What is the maximum permissible mass of 2023 Ford F-Series F-150 XIV SuperCrew (facelift 2023) 5.0 V8 (400 Hp) SelectShift?
3107-3221 kg
6850 - 7101 lbs.
What is the trunk (boot) capacity of 2023 Ford F-Series F-100/F-150 Pick-up?
1495 l
52.8 cu. ft.
What are the number of gears and the gearbox type of 2023 Ford F-Series F-150 XIV SuperCrew (facelift 2023) 5.0 V8 (400 Hp) SelectShift?
10, automatic transmission SelectShift
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Ford F-Series F-150 XIV SuperCrew (facelift 2023) 5.0 V8 (400 Hp) SelectShift
Compare

General information

Brand
Ford
Model
F-Series F-100/F-150
Generation
F-Series F-150 XIV SuperCrew (facelift 2023)
Modification (Engine)
5.0 V8 (400 Hp) SelectShift
Start of production
September, 2023
Powertrain Architecture
Internal Combustion engine
Body type
Pick-up
Seats
5-6
Doors
4
Looking for Ford F-Series F-100/F-150 on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - urban (EPA)
14.7 l/100 km 16 US mpg
19.2 UK mpg
6.8 km/l
Fuel consumption (economy) - extra urban (EPA)
9.8 l/100 km 24 US mpg
28.8 UK mpg
10.2 km/l
Fuel consumption (economy) - combined (EPA)
12.4 l/100 km 19 US mpg
22.8 UK mpg
8.1 km/l
Fuel Type
Petrol (Gasoline)
Weight-to-power ratio
5.4 kg/Hp, 184.9 Hp/tonne
Weight-to-torque ratio
3.9 kg/Nm, 257.1 Nm/tonne

Engine specs

Power
400 Hp @ 6000 rpm.
Power per litre
79.4 Hp/l
Torque
556 Nm @ 4250 rpm. 410 lb.-ft. @ 4250 rpm.
Engine layout
Front, Longitudinal
Engine Model/Code
Coyote
Engine displacement
5038 cm3 307.44 cu. in.
Number of cylinders
8
Engine configuration
V-engine
Cylinder Bore
93 mm 3.66 in.
Piston Stroke
92.7 mm 3.65 in.
Compression ratio
12:1
Number of valves per cylinder
4
Fuel injection system
Direct injection and Multi-port manifold injection
Engine aspiration
Naturally aspirated engine
Valvetrain
DOHC, Ti-VCT
Engine oil capacity
7.33 l 7.75 US qt | 6.45 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
12.5 l 13.21 US qt | 11 UK qt
Engine systems
Start & Stop System

Volume and weights

Kerb Weight
2163 kg 4769 lbs.
Max. weight
3107-3221 kg 6850 - 7101 lbs.
Max load
944-1058 kg 2081 - 2332 lbs.
Trunk (boot) space - minimum
1495 l 52.8 cu. ft.
Fuel tank capacity
136 l 35.93 US gal | 29.92 UK gal
Permitted trailer load with brakes (12%)
5761 kg 12701 lbs.

Dimensions

Length
5893 mm 232.01 in.
Width
2029 mm 79.88 in.
Width with mirrors folded
2123 mm 83.58 in.
Width including mirrors
2431 mm 95.71 in.
Height
1915 mm 75.39 in.
Wheelbase
3693 mm 145.39 in.
Front track
1725 mm 67.91 in.
Rear (Back) track
1735 mm 68.31 in.
Front overhang
950 mm 37.4 in.
Rear overhang
1250 mm 49.21 in.
Ride height (ground clearance)
208 mm 8.19 in.
Minimum turning circle (turning diameter)
14.6 m 47.9 ft.
Approach angle
21°
Departure angle
18.6°
Ramp-over (breakover) angle
17.1°

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel
Rear wheel drive
Number of gears and type of gearbox
10 gears, automatic transmission SelectShift
Front suspension
Double wishbone, Independent coil spring
Rear suspension
Rigid axle suspension, Leaf spring
Front brakes
Ventilated discs, 350x34 mm
Rear brakes
Ventilated discs, 336x20 mm
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Electric Steering
Tire size
245/70 R17; 265/70 R17; 265/60 R18; 265/70 R18; 275/65 R18; 275/60 R20; 275/50 R22
Wheel rim size
17; 18; 20; 22
