Specs of Ford F-350 Super Duty IV Super Cab Short box 6.7d V8 (450 Hp) Automatic SRW /2017, 2018, 2019/

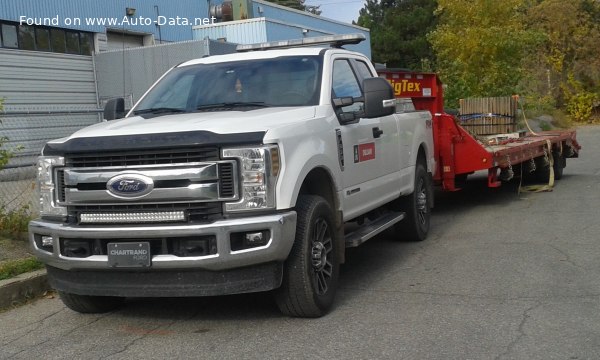

2018 Ford F-350 Super Duty IV Super Cab Short box - Photo 1

Key specs

Ford F-350 Super Duty IV Super Cab Short box 6.7d V8 (450 Hp) Automatic SRW /Pick-up 2017 - 2019/

What is the body type of Ford F-350 Super Duty IV Super Cab Short box?
Pick-up, 2 Doors, 6 Seats
What is the power output of Ford F-350 Super Duty Pick-up 2017 6.7d V8 (450 Hp) Automatic SRW?
450 Hp, 1267 Nm
934 lb.-ft.
What is the engine displacement of Ford F-350 Super Duty Pick-up 2017 6.7d V8 (450 Hp) Automatic SRW?
6.7 l
6653 cm3
405.99 cu. in.
What is the number of cylinders in 2017 Ford 6.7d V8 (450 Hp) Automatic SRW?
8, V-engine
What is the drivetrain of Ford F-350 Super Duty IV Super Cab Short box Pick-up 2017 6.7d V8 (450 Hp) Automatic SRW?
Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
What is the length of 2017 Ford F-350 Super Duty Pick-up?
6050 mm
238.19 in.
What is the width of 2017 Ford F-350 Super Duty Pick-up?
2032 mm
80 in.
What is the kerb weight of 2017 Ford F-350 Super Duty IV Super Cab Short box 6.7d V8 (450 Hp) Automatic SRW?
3108-3134 kg
6852 - 6909 lbs.
What is the trunk (boot) capacity of 2017 Ford F-350 Super Duty Pick-up?
1852 l
65.4 cu. ft.
What is the number of gears in What is the gearbox type of 2017 Ford F-350 Super Duty IV Super Cab Short box 6.7d V8 (450 Hp) Automatic SRW?
6, automatic transmission TorqShift
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
Ford
Model
F-350 Super Duty
Generation
F-350 Super Duty IV Super Cab Short box
Modification (Engine)
6.7d V8 (450 Hp) Automatic SRW
Start of production
2017 year
End of production
2019 year
Powertrain Architecture
Internal Combustion engine
Body type
Pick-up
Seats
6
Doors
2
Looking for Ford F-350 Super Duty on the used-car market?
Check its history →

Performance specs

Fuel Type
Diesel
Weight-to-power ratio
6.9 kg/Hp, 144.8 Hp/tonne
Weight-to-torque ratio
2.5 kg/Nm, 407.7 Nm/tonne

Engine specs

Power
450 Hp @ 2800 rpm.
Power per litre
67.6 Hp/l
Torque
1267 Nm @ 1800 rpm. 934 lb.-ft. @ 1800 rpm.
Engine layout
Front, Longitudinal
Engine displacement
6653 cm3 405.99 cu. in.
Number of cylinders
8
Engine configuration
V-engine
Cylinder Bore
99.06 mm 3.9 in.
Piston Stroke
107.95 mm 4.25 in.
Compression ratio
16.2:1
Number of valves per cylinder
4
Fuel injection system
Diesel Commonrail
Engine aspiration
Turbocharger, Intercooler
Valvetrain
OHV
Engine oil capacity
12.3 l 13 US qt | 10.82 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
33.2 l 35.08 US qt | 29.21 UK qt

Volume and weights

Kerb Weight
3108-3134 kg 6852 - 6909 lbs.
Trunk (boot) space - minimum
1852 l 65.4 cu. ft.
Fuel tank capacity
110 l 29.06 US gal | 24.2 UK gal
Permitted trailer load with brakes (12%)
9662 kg 21301 lbs.

Dimensions

Length
6050 mm 238.19 in.
Width
2032 mm 80 in.
Width including mirrors
2690 mm 105.91 in.
Height
1986 mm 78.19 in.
Wheelbase
3759 mm 147.99 in.
Front track
1735 mm 68.31 in.
Rear (Back) track
1707 mm 67.2 in.
Front overhang
970 mm 38.19 in.
Rear overhang
1321 mm 52.01 in.
Ride height (ground clearance)
216 mm 8.5 in.
Approach angle
17.3°
Departure angle
18.4°
Ramp-over (brakeover) angle
19.0°

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel
Rear wheel drive
Number of gears and type of gearbox
6 gears, automatic transmission TorqShift
Front suspension
Independent coil spring, Trailing arm
Rear suspension
Rigid axle suspension, Leaf spring
Front brakes
Ventilated discs, 363 mm
Rear brakes
Ventilated discs, 363 mm
Assisting systems
ABS (Anti-lock braking system)
Steering type
Cone worm with recirculation balls
Power steering
Hydraulic Steering
Tires size
245/75 R17
