Ford Explorer III 5.4 L 3V (303 Hp) AWD | Technical specs, data, fuel consumption, Dimensions

Key specs

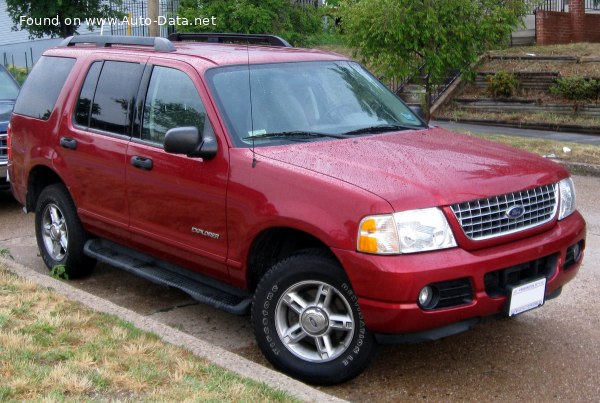

Ford Explorer III 5.4 L 3V (303 Hp) AWD /SUV 2003 - 2005/

What is the body type of Ford Explorer III?

SUV, 5 Doors, 5 Seats

What is the power output of Ford Explorer SUV 2003 5.4 L 3V (303 Hp) AWD?

303 Hp, 495 Nm
365 lb.-ft.

What is the engine displacement of Ford Explorer SUV 2003 5.4 L 3V (303 Hp) AWD?

5.4 l
5408 cm³
330.02 cu. in.

What is the number of cylinders in 2003 Ford 5.4 L 3V (303 Hp) AWD?

8, V-engine

What is the drivetrain of Ford Explorer III SUV 2003 5.4 L 3V (303 Hp) AWD?

All wheel drive (4x4). Internal Combustion engine.

What is the length of 2003 Ford Explorer SUV?

4813 mm
189.49 in.

What is the width of 2003 Ford Explorer SUV?

1832 mm
72.13 in.

What is the kerb weight of 2003 Ford Explorer III 5.4 L 3V (303 Hp) AWD?

1995 kg
4398 lbs.

What is the maximum permissible mass of 2003 Ford Explorer III 5.4 L 3V (303 Hp) AWD?

2595 kg
5721 lbs.

What is the trunk (boot) capacity of 2003 Ford Explorer SUV?

391 - 2492 l
13.8 - 88 cu. ft.

What are the number of gears and the gearbox type of 2003 Ford Explorer III 5.4 L 3V (303 Hp) AWD?

6, automatic transmission

Ford
- Ford Explorer
  - Explorer III
    - 5.4 L 3V (303 Hp) AWD
    - 5.4 L 3V (303 Hp)
    - 4.6i V8 4WD (242 Hp)
    - 4.6i V8 (242 Hp)
    - 4.6 V8 (242 Hp)
    - 4.0 V6 (213 Hp)

Compare

General information

Brand

Ford

Model

Explorer

Generation

Explorer III

Modification (Engine)

5.4 L 3V (303 Hp) AWD

Start of production

2003

End of production

2005

Powertrain Architecture

Internal Combustion engine

Body type

SUV

Seats

Doors

Looking for Ford Explorer on the used-car market?

Check its history →

Performance specs

Fuel Type

Petrol (Gasoline)

Weight-to-power ratio

6.6 kg/Hp, 151.9 Hp/tonne

Weight-to-torque ratio

4 kg/Nm, 248.1 Nm/tonne

Engine specs

Power

303 Hp @ 5000 rpm.

Power per litre

56 Hp/l

Torque

495 Nm @ 3750 rpm. 365 lb.-ft. @ 3750 rpm.

Engine layout

Front, Longitudinal

Engine displacement

5408 cm³ 330.02 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

90.2 mm 3.55 in.

Piston Stroke

105.9 mm 4.17 in.

Compression ratio

9.8:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Volume and weights

Kerb Weight

1995 kg 4398 lbs.

Max. weight

2595 kg 5721 lbs.

Max load

600 kg 1323 lbs.

Trunk (boot) space - minimum

391 l 13.8 cu. ft.

Trunk (boot) space - maximum

2492 l 88 cu. ft.

Fuel tank capacity

85 l 22.45 US gal | 18.7 UK gal

Dimensions

Length

4813 mm 189.49 in.

Width

1832 mm 72.13 in.

Height

1814 mm 71.42 in.

Wheelbase

2890 mm 113.78 in.

Front track

1547 mm 60.91 in.

Rear (Back) track

1555 mm 61.22 in.

Drivetrain, brakes and suspension specs

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

6 gears, automatic transmission

Front suspension

Torsion bar

Rear suspension

Coil spring

Front brakes

Ventilated discs

Rear brakes

Disc

Steering type

Steering rack and pinion

Tire size

235/70 R16

Specs of Ford Explorer III 5.4 L 3V (303 Hp) AWD /2003, 2004, 2005/
