Specs of Ford Expedition III (U324) 5.4 V8 (300 Hp) 4x4 Automatic /2006, 2007, 2008/

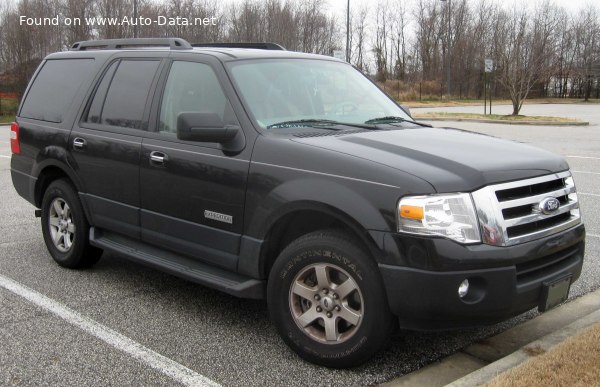

2007 Ford Expedition III (U324) - Photo 1
Ford Expedition III (U324) - Photo 2Ford Expedition III (U324) - Photo 3Ford Expedition III (U324) - Photo 4Ford Expedition III (U324) - Photo 5

Key specs

Ford Expedition III (U324) 5.4 V8 (300 Hp) 4x4 Automatic /SUV 2006 - 2008/

What is the body type of Ford Expedition III (U324)?
SUV, 5 Doors, 5-9 Seats
What is the power output of Ford Expedition SUV 2006 5.4 V8 (300 Hp) 4x4 Automatic?
300 Hp, 495 Nm
365 lb.-ft.
What is the engine displacement of Ford Expedition SUV 2006 5.4 V8 (300 Hp) 4x4 Automatic?
5.4 l
5408 cm3
330.02 cu. in.
What is the number of cylinders in 2006 Ford 5.4 V8 (300 Hp) 4x4 Automatic?
8, V-engine
What is the drivetrain of Ford Expedition III (U324) SUV 2006 5.4 V8 (300 Hp) 4x4 Automatic?
All wheel drive (4x4). Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
What is the length of 2006 Ford Expedition SUV?
5245 mm
206.5 in.
What is the width of 2006 Ford Expedition SUV?
2002 mm
78.82 in.
What is the trunk (boot) capacity of 2006 Ford Expedition SUV?
527 - 3067 l
18.6 - 108.3 cu. ft.
What are the number of gears and the gearbox type of 2006 Ford Expedition III (U324) 5.4 V8 (300 Hp) 4x4 Automatic?
6, automatic transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
Ford
Model
Expedition
Generation
Expedition III (U324)
Modification (Engine)
5.4 V8 (300 Hp) 4x4 Automatic
Start of production
August, 2006
End of production
July, 2008
Powertrain Architecture
Internal Combustion engine
Body type
SUV
Seats
5-9
Doors
5
Looking for Ford Expedition on the used-car market?
Check its history →

Performance specs

Fuel Type
Petrol (Gasoline)

Engine specs

Power
300 Hp @ 5000 rpm.
Power per litre
55.5 Hp/l
Torque
495 Nm @ 3750 rpm. 365 lb.-ft. @ 3750 rpm.
Engine layout
Front, Longitudinal
Engine Model/Code
Triton
Engine displacement
5408 cm3 330.02 cu. in.
Number of cylinders
8
Engine configuration
V-engine
Cylinder Bore
90.2 mm 3.55 in.
Piston Stroke
105.8 mm 4.17 in.
Compression ratio
9.85:1
Number of valves per cylinder
3
Fuel injection system
Multi-port manifold injection
Engine aspiration
Naturally aspirated engine
Valvetrain
SOHC, VCT
Engine oil capacity
6.6 l 6.97 US qt | 5.81 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
19.5 l 20.61 US qt | 17.16 UK qt

Volume and weights

Trunk (boot) space - minimum
527 l 18.6 cu. ft.
Trunk (boot) space - maximum
3067 l 108.3 cu. ft.
Fuel tank capacity
106 l 28 US gal | 23.32 UK gal
Permitted trailer load with brakes (12%)
4082 kg 8999 lbs.

Dimensions

Length
5245 mm 206.5 in.
Width
2002 mm 78.82 in.
Width with mirrors folded
2024 mm 79.69 in.
Width including mirrors
2332 mm 91.81 in.
Height
1961 mm 77.2 in.
Wheelbase
3023 mm 119.02 in.
Front overhang
996 mm 39.21 in.
Rear overhang
1227 mm 48.31 in.
Ride height (ground clearance)
221 mm 8.7 in.
Approach angle
22.6°
Departure angle
21.5°
Ramp-over (breakover) angle
18.3°

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel
All wheel drive (4x4)
Number of gears and type of gearbox
6 gears, automatic transmission
Front suspension
Coil spring, Double wishbone, Anti-roll bar
Rear suspension
Independent multi-link spring suspension with anti-roll bar, Air suspension - optional
Front brakes
Ventilated discs
Rear brakes
Ventilated discs
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Hydraulic Steering
Tire size
265/70 R17; 255/70 R18; 275/55 R20
Wheel rim size
17; 18; 20
