Ford Expedition III EL (U354) 5.4 V8 (310 Hp) Flex Fuel Automatic | Technical specs, data, fuel consumption, Dimensions

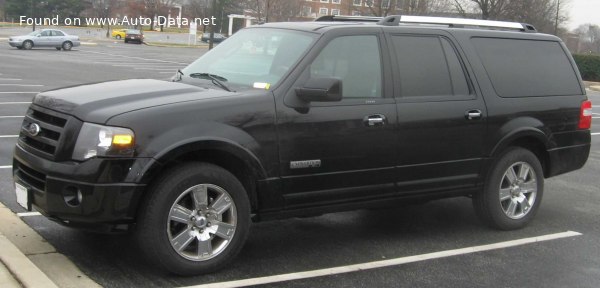

2007 Ford Expedition III EL (U354) - Photo 1

Key specs

Ford Expedition III EL (U354) 5.4 V8 (310 Hp) Flex Fuel Automatic /SUV 2008 - 2014/

What is the body type of Ford Expedition III EL (U354)?

SUV, 5 Doors, 7-8 Seats

What is the fuel consumption and economy of Ford Expedition III EL (U354) 5.4 V8 (310 Hp) Flex Fuel Automatic?

14.7 l/100 km
16 US mpg
19.2 UK mpg
6.8 km/l

What is the power output of Ford Expedition SUV 2008 5.4 V8 (310 Hp) Flex Fuel Automatic?

310 Hp, 495 Nm
365 lb.-ft.

What is the engine displacement of Ford Expedition SUV 2008 5.4 V8 (310 Hp) Flex Fuel Automatic?

5.4 l
5408 cm³
330.02 cu. in.

What is the number of cylinders in 2008 Ford 5.4 V8 (310 Hp) Flex Fuel Automatic?

8, V-engine

What is the drivetrain of Ford Expedition III EL (U354) SUV 2008 5.4 V8 (310 Hp) Flex Fuel Automatic?

Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 2008 Ford Expedition SUV?

5621 mm
221.3 in.

What is the width of 2008 Ford Expedition SUV?

2002 mm
78.82 in.

What is the kerb weight of 2008 Ford Expedition III EL (U354) 5.4 V8 (310 Hp) Flex Fuel Automatic?

2651 kg
5844 lbs.

What is the maximum permissible mass of 2008 Ford Expedition III EL (U354) 5.4 V8 (310 Hp) Flex Fuel Automatic?

3420 kg
7540 lbs.

What is the trunk (boot) capacity of 2008 Ford Expedition SUV?

1206 - 3704 l
42.6 - 130.8 cu. ft.

What are the number of gears and the gearbox type of 2008 Ford Expedition III EL (U354) 5.4 V8 (310 Hp) Flex Fuel Automatic?

6, automatic transmission

Ford
- Ford Expedition
  - Expedition III EL (U354)
    - 5.4 V8 (310 Hp) Flex Fuel Automatic
    - 5.4 V8 (310 Hp) 4x4 Flex Fuel Automatic
    - 5.4 V8 (300 Hp) Automatic
    - 5.4 V8 (300 Hp) 4x4 Automatic

Compare

General information

Brand

Ford

Model

Expedition

Generation

Expedition III EL (U354)

Modification (Engine)

5.4 V8 (310 Hp) Flex Fuel Automatic

Start of production

July, 2008

End of production

August, 2014

Powertrain Architecture

Internal Combustion engine

Body type

SUV

Seats

7-8

Doors

Looking for Ford Expedition on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban (EPA)

16.8 l/100 km 14 US mpg
16.8 UK mpg
6 km/l

Fuel consumption (economy) - extra urban (EPA)

11.8 l/100 km 19.9 US mpg
23.9 UK mpg
8.5 km/l

Fuel consumption (economy) - combined (EPA)

14.7 l/100 km 16 US mpg
19.2 UK mpg
6.8 km/l

Fuel Type

Petrol / Ethanol - E85

Weight-to-power ratio

8.6 kg/Hp, 116.9 Hp/tonne

Weight-to-torque ratio

5.4 kg/Nm, 186.7 Nm/tonne

Engine specs

Power

310 Hp @ 5100 rpm.

Power per litre

57.3 Hp/l

Torque

495 Nm @ 3600 rpm. 365 lb.-ft. @ 3600 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

Triton

Engine displacement

5408 cm³ 330.02 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

90.2 mm 3.55 in.

Piston Stroke

105.8 mm 4.17 in.

Compression ratio

9.8:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

SOHC, VCT

Engine oil capacity

6.6 l 6.97 US qt | 5.81 UK qt

Engine oil specification

Coolant

15.5 l 16.38 US qt | 13.64 UK qt

Volume and weights

Kerb Weight

2651 kg 5844 lbs.

Max. weight

3420 kg 7540 lbs.

Max load

769 kg 1695 lbs.

Trunk (boot) space - minimum

1206 l 42.6 cu. ft.

Trunk (boot) space - maximum

3704 l 130.8 cu. ft.

Fuel tank capacity

127 l 33.55 US gal | 27.94 UK gal

Permitted trailer load with brakes (12%)

4037 kg 8900 lbs.

Dimensions

Length

5621 mm 221.3 in.

Width

2002 mm 78.82 in.

Width with mirrors folded

2024 mm 79.69 in.

Width including mirrors

2332 mm 91.81 in.

Height

1974 mm 77.72 in.

Wheelbase

3327 mm 130.98 in.

Front track

1702 mm 67.01 in.

Rear (Back) track

1707 mm 67.2 in.

Front overhang

996 mm 39.21 in.

Rear overhang

1298 mm 51.1 in.

Ride height (ground clearance)

221 mm 8.7 in.

Minimum turning circle (turning diameter)

13.4 m 43.96 ft.

Approach angle

23.1°

Departure angle

20.1°

Ramp-over (breakover) angle

17.6°

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

6 gears, automatic transmission

Front suspension

Coil spring, Double wishbone, Anti-roll bar

Rear suspension

Independent multi-link spring suspension with anti-roll bar, Air suspension - optional

Front brakes

Ventilated discs

Rear brakes

Ventilated discs

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

255/70 R18; 275/55 R20

Wheel rim size

18; 20

Specs of Ford Expedition III EL (U354) 5.4 V8 (310 Hp) Flex Fuel Automatic /2008, 2009, 2010, 2011, 2012, 2013, 2014/
