Ford Escort VII Turnier (GAL,ANL) 1.3 i (60 Hp) | Technical specs, data, fuel consumption, Dimensions

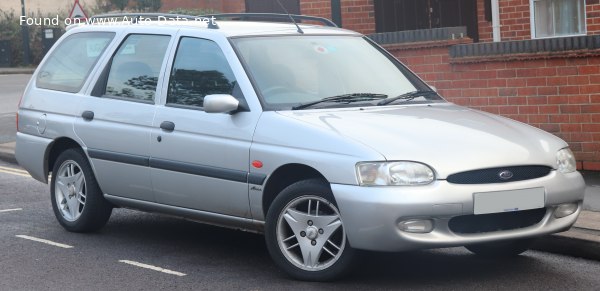

1995 Ford Escort VII Turnier (GAL,ANL) - Photo 1

Key specs

Ford Escort VII Turnier (GAL,ANL) 1.3 i (60 Hp) /Station wagon (estate) 1995 - 1998/

What is the body type of Ford Escort VII Turnier (GAL,ANL)?

Station wagon (estate), 5 Doors, 5 Seats

What is the fuel consumption and economy of Ford Escort VII Turnier (GAL,ANL) 1.3 i (60 Hp)?

6.6 l/100 km
35.6 US mpg
42.8 UK mpg
15.2 km/l

How fast is 1995 Escort VII Turnier (GAL,ANL) 1.3 i (60 Hp)?

154 km/h | 96 mph
0-100 km/h: 17.5 sec
0-60 mph: 16.6 sec

What is the power output of Ford Escort Station wagon (estate) 1995 1.3 i (60 Hp)?

60 Hp, 103 Nm
76 lb.-ft.

What is the engine displacement of Ford Escort Station wagon (estate) 1995 1.3 i (60 Hp)?

1.3 l
1299 cm³
79.27 cu. in.

What is the number of cylinders in 1995 Ford 1.3 i (60 Hp)?

4, Inline

What is the drivetrain of Ford Escort VII Turnier (GAL,ANL) Station wagon (estate) 1995 1.3 i (60 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 1995 Ford Escort Station wagon (estate)?

4302 mm
169.37 in.

What is the width of 1995 Ford Escort Station wagon (estate)?

1700 mm
66.93 in.

What is the kerb weight of 1995 Ford Escort VII Turnier (GAL,ANL) 1.3 i (60 Hp)?

1070 kg
2359 lbs.

What is the maximum permissible mass of 1995 Ford Escort VII Turnier (GAL,ANL) 1.3 i (60 Hp)?

1580 kg
3483 lbs.

What is the trunk (boot) capacity of 1995 Ford Escort Station wagon (estate)?

460 - 1425 l
16.2 - 50.3 cu. ft.

What is the number of gears in What is the gearbox type of 1995 Ford Escort VII Turnier (GAL,ANL) 1.3 i (60 Hp)?

5, manual transmission

Ford
- Ford Escort
  - Escort VII Turnier (GAL,ANL)
    - 1.8 TD (90 Hp)
    - 1.8 TD (70 Hp)
    - 1.8 i 16V (115 Hp)
    - 1.8 D (60 Hp)
    - 1.6 i 16V (90 Hp)
    - 1.6 (90 Hp) Automatic
    - 1.4 i (75 Hp)
    - 1.3 i (60 Hp)

Compare

General information

Brand

Ford

Model

Escort

Generation

Escort VII Turnier (GAL,ANL)

Modification (Engine)

1.3 i (60 Hp)

Start of production

1995 year

End of production

1998 year

Powertrain Architecture

Internal Combustion engine

Body type

Station wagon (estate)

Seats

Doors

Looking for Ford Escort on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - combined

6.6 l/100 km 35.6 US mpg
42.8 UK mpg
15.2 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

17.5 sec

Acceleration 0 - 62 mph

17.5 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

16.6 sec

Maximum speed

154 km/h 96 mph

Weight-to-power ratio

17.8 kg/Hp, 56.1 Hp/tonne

Weight-to-torque ratio

10.4 kg/Nm, 96.3 Nm/tonne

Engine specs

Power

60 Hp @ 5000 rpm.

Power per litre

46.2 Hp/l

Torque

103 Nm @ 2500 rpm. 76 lb.-ft. @ 2500 rpm.

Engine layout

Front, Transverse

Engine Model/Code

J4B, J6A

Engine displacement

1299 cm³ 79.27 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

74 mm 2.91 in.

Piston Stroke

75.5 mm 2.97 in.

Compression ratio

9.5:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

OHC

Engine oil capacity

3.25 l 3.43 US qt | 2.86 UK qt

Engine oil specification

Coolant

7.1 l 7.5 US qt | 6.25 UK qt

Volume and weights

Kerb Weight

1070 kg 2359 lbs.

Max. weight

1580 kg 3483 lbs.

Max load

510 kg 1124 lbs.

Trunk (boot) space - minimum

460 l 16.2 cu. ft.

Trunk (boot) space - maximum

1425 l 50.3 cu. ft.

Fuel tank capacity

55 l 14.53 US gal | 12.1 UK gal

Permitted trailer load with brakes (12%)

1200 kg 2646 lbs.

Dimensions

Length

4302 mm 169.37 in.

Width

1700 mm 66.93 in.

Width including mirrors

1875 mm 73.82 in.

Height

1359 mm 53.5 in.

Wheelbase

2523 mm 99.33 in.

Front track

1440 mm 56.69 in.

Rear (Back) track

1462 mm 57.56 in.

Minimum turning circle (turning diameter)

10.5 m 34.45 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Wishbone

Rear suspension

Coil spring

Front brakes

Ventilated discs

Rear brakes

Drum

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Tires size

175/70 R13; 185/65 R14; 195/50 R15

Wheel rims size

5J x 13; 6J x 14; 6J x 15

Specs of Ford Escort VII Turnier (GAL,ANL) 1.3 i (60 Hp) /1995, 1996, 1997, 1998/
