Fiat Sedici (facelift 2009) 1.6 16V (120 Hp) 4x4 | Technical specs, data, fuel consumption, Dimensions

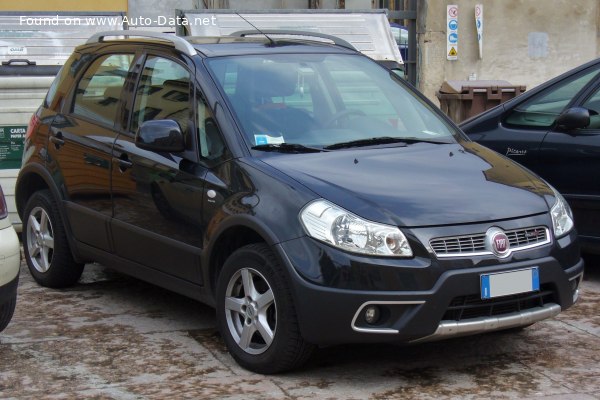

2009 Fiat Sedici (facelift 2009) - Photo 1

Key specs

Fiat Sedici (facelift 2009) 1.6 16V (120 Hp) 4x4 /SUV 2009 - 2014/

What is the body type of Fiat Sedici (facelift 2009)?

SUV, 5 Doors, 5 Seats

What is the fuel consumption and economy of Fiat Sedici (facelift 2009) 1.6 16V (120 Hp) 4x4?

6.5 l/100 km
36.2 US mpg
43.5 UK mpg
15.4 km/l

How environmentally friendly is Fiat Sedici 1.6 16V (120 Hp) 4x4?

Euro 5

How fast is 2009 Sedici (facelift 2009) 1.6 16V (120 Hp) 4x4?

175 km/h | 109 mph
0-100 km/h: 11.5 sec
0-60 mph: 10.9 sec

What is the power output of Fiat Sedici SUV 2009 1.6 16V (120 Hp) 4x4?

120 Hp, 156 Nm
115 lb.-ft.

What is the engine displacement of Fiat Sedici SUV 2009 1.6 16V (120 Hp) 4x4?

1.6 l
1598 cm³
97.52 cu. in.

What is the number of cylinders in 2009 Fiat 1.6 16V (120 Hp) 4x4?

4, Inline

What is the drivetrain of Fiat Sedici (facelift 2009) SUV 2009 1.6 16V (120 Hp) 4x4?

All wheel drive (4x4). Internal Combustion engine.

What is the length of 2009 Fiat Sedici SUV?

4115 mm
162.01 in.

What is the width of 2009 Fiat Sedici SUV?

1755 mm
69.09 in.

What is the kerb weight of 2009 Fiat Sedici (facelift 2009) 1.6 16V (120 Hp) 4x4?

1250 kg
2756 lbs.

What is the maximum permissible mass of 2009 Fiat Sedici (facelift 2009) 1.6 16V (120 Hp) 4x4?

1750 kg
3858 lbs.

What is the trunk (boot) capacity of 2009 Fiat Sedici SUV?

270 - 670 l
9.5 - 23.7 cu. ft.

What is the number of gears in What is the gearbox type of 2009 Fiat Sedici (facelift 2009) 1.6 16V (120 Hp) 4x4?

5, manual transmission

Fiat
- Fiat Sedici
  - Sedici (facelift 2009)
    - 2.0 16V MULTIJET (135 Hp) 4x4
    - 1.6 16V (120 Hp) Automatic
    - 1.6 16V (120 Hp) 4x4
    - 1.6 16V (120 Hp)

Compare

General information

Brand

Fiat

Model

Sedici

Generation

Sedici (facelift 2009)

Modification (Engine)

1.6 16V (120 Hp) 4x4

Start of production

2009 year

End of production

2014 year

Powertrain Architecture

Internal Combustion engine

Body type

SUV

Seats

Doors

Looking for Fiat Sedici on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

8.2 l/100 km 28.7 US mpg
34.4 UK mpg
12.2 km/l

Fuel consumption (economy) - extra urban

5.5 l/100 km 42.8 US mpg
51.4 UK mpg
18.2 km/l

Fuel consumption (economy) - combined

6.5 l/100 km 36.2 US mpg
43.5 UK mpg
15.4 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

11.5 sec

Acceleration 0 - 62 mph

11.5 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

10.9 sec

Maximum speed

175 km/h 109 mph

Emission standard

Euro 5

Weight-to-power ratio

10.4 kg/Hp, 96 Hp/tonne

Weight-to-torque ratio

8 kg/Nm, 124.8 Nm/tonne

Engine specs

Power

120 Hp @ 6000 rpm.

Power per litre

75.1 Hp/l

Torque

156 Nm @ 4400 rpm. 115 lb.-ft. @ 4400 rpm.

Engine layout

Front, Transverse

Engine Model/Code

M16A

Engine displacement

1598 cm³ 97.52 cu. in.

Number of cylinders

Engine configuration

Inline

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC

Engine oil capacity

3.9 l 4.12 US qt | 3.43 UK qt

Engine oil specification

Coolant

7.7 l 8.14 US qt | 6.78 UK qt

Volume and weights

Kerb Weight

1250 kg 2756 lbs.

Max. weight

1750 kg 3858 lbs.

Max load

500 kg 1102 lbs.

Trunk (boot) space - minimum

270 l 9.5 cu. ft.

Trunk (boot) space - maximum

670 l 23.7 cu. ft.

Fuel tank capacity

50 l 13.21 US gal | 11 UK gal

Dimensions

Length

4115 mm 162.01 in.

Width

1755 mm 69.09 in.

Height

1620 mm 63.78 in.

Wheelbase

2500 mm 98.43 in.

Front track

1495 mm 58.86 in.

Rear (Back) track

1495 mm 58.86 in.

Minimum turning circle (turning diameter)

11 m 36.09 ft.

Drivetrain, brakes and suspension specs

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Independent, McPherson type

Rear suspension

Torsion bar

Front brakes

Disc

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

205/60 R16

Wheel rims size

Specs of Fiat Sedici (facelift 2009) 1.6 16V (120 Hp) 4x4 /2009, 2010, 2011, 2012, 2013, 2014/
