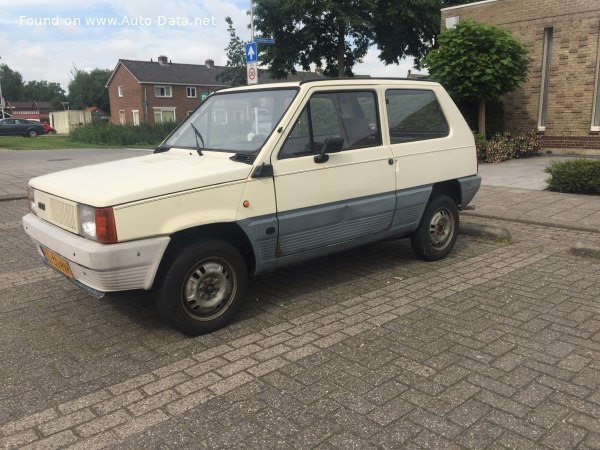

Fiat Panda (ZAF 141) 0.9 (45 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

Fiat Panda (ZAF 141) 0.9 (45 Hp) /Hatchback 1982 - 1985/

What is the body type of Fiat Panda (ZAF 141)?

Hatchback, 3 Doors, 5 Seats

How fast is 1982 Panda (ZAF 141) 0.9 (45 Hp)?

140 km/h | 87 mph
0-100 km/h: 18.5 sec
0-60 mph: 17.6 sec

What is the power output of Fiat Panda Hatchback 1982 0.9 (45 Hp)?

45 Hp, 67 Nm
49 lb.-ft.

What is the engine displacement of Fiat Panda Hatchback 1982 0.9 (45 Hp)?

0.9 l
903 cm³
55.1 cu. in.

What is the number of cylinders in 1982 Fiat 0.9 (45 Hp)?

4, Inline

What is the drivetrain of Fiat Panda (ZAF 141) Hatchback 1982 0.9 (45 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 1982 Fiat Panda Hatchback?

3380 mm
133.07 in.

What is the width of 1982 Fiat Panda Hatchback?

1460 mm
57.48 in.

What is the kerb weight of 1982 Fiat Panda (ZAF 141) 0.9 (45 Hp)?

670 kg
1477 lbs.

What is the maximum permissible mass of 1982 Fiat Panda (ZAF 141) 0.9 (45 Hp)?

1150 kg
2535 lbs.

What is the trunk (boot) capacity of 1982 Fiat Panda Hatchback?

272 - 1088 l
9.6 - 38.4 cu. ft.

What is the number of gears in What is the gearbox type of 1982 Fiat Panda (ZAF 141) 0.9 (45 Hp)?

4, manual transmission

Fiat
- Fiat Panda
  - Panda (ZAF 141)
    - 750 (34 Hp)
    - 1.0 (48 Hp) 4x4
    - 0.9 (45 Hp)

Compare

General information

Brand

Fiat

Model

Panda

Generation

Panda (ZAF 141)

Modification (Engine)

0.9 (45 Hp)

Start of production

1982 year

End of production

1985 year

Powertrain Architecture

Internal Combustion engine

Body type

Hatchback

Seats

Doors

Looking for Fiat Panda on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

7.1 l/100 km 33.1 US mpg
39.8 UK mpg
14.1 km/l

Fuel consumption (economy) - extra urban

5 l/100 km 47 US mpg
56.5 UK mpg
20 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

18.5 sec

Acceleration 0 - 62 mph

18.5 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

17.6 sec

Maximum speed

140 km/h 87 mph

Weight-to-power ratio

14.9 kg/Hp, 67.2 Hp/tonne

Weight-to-torque ratio

10 kg/Nm, 100 Nm/tonne

Engine specs

Power

45 Hp @ 5600 rpm.

Power per litre

49.8 Hp/l

Torque

67 Nm @ 3000 rpm. 49 lb.-ft. @ 3000 rpm.

Engine layout

Front, Transverse

Engine Model/Code

100 GL3.000

Engine displacement

903 cm³ 55.1 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

65 mm 2.56 in.

Piston Stroke

68 mm 2.68 in.

Compression ratio

9:1

Number of valves per cylinder

Fuel injection system

Carburettor

Engine aspiration

Naturally aspirated engine

Valvetrain

OHV

Engine oil capacity

3.4 l 3.59 US qt | 2.99 UK qt

Engine oil specification

Coolant

5 l 5.28 US qt | 4.4 UK qt

Volume and weights

Kerb Weight

670 kg 1477 lbs.

Max. weight

1150 kg 2535 lbs.

Max load

480 kg 1058 lbs.

Trunk (boot) space - minimum

272 l 9.6 cu. ft.

Trunk (boot) space - maximum

1088 l 38.4 cu. ft.

Permitted trailer load with brakes (12%)

750 kg 1653 lbs.

Dimensions

Length

3380 mm 133.07 in.

Width

1460 mm 57.48 in.

Height

1445 mm 56.89 in.

Wheelbase

2160 mm 85.04 in.

Front track

1254 mm 49.37 in.

Rear (Back) track

1249 mm 49.17 in.

Minimum turning circle (turning diameter)

9.2 m 30.18 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

4 gears, manual transmission

Front suspension

Independent, McPherson type

Rear suspension

Rigid axle suspension

Front brakes

Disc

Rear brakes

Drum

Steering type

Steering rack and pinion

Wheel rims size

4J x 13

Specs of Fiat Panda (ZAF 141) 0.9 (45 Hp) /1982, 1983, 1984, 1985/
