Specs of Ferrari SF90 XX Stradale 4.0 V8 (1030 Hp) Plug-in Hybrid E4WD F1 DCT /2023, 2024, 2025, 2026/

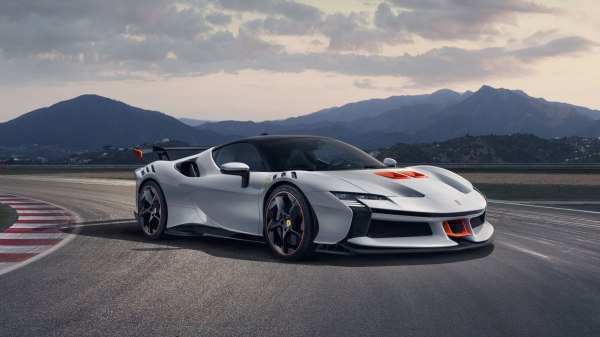

2023 Ferrari SF90 XX Stradale - Photo 1
Ferrari SF90 XX Stradale - Photo 2Ferrari SF90 XX Stradale - Photo 3Ferrari SF90 XX Stradale - Photo 4Ferrari SF90 XX Stradale - Photo 5Ferrari SF90 XX Stradale - Photo 6

Key specs

Ferrari SF90 XX Stradale 4.0 V8 (1030 Hp) Plug-in Hybrid E4WD F1 DCT /Coupe 2023 - /

What is the body type of Ferrari SF90 XX Stradale?
Coupe, 2 Doors, 2 Seats
What is the all-electric range of 4.0 V8 (1030 Hp) Plug-in Hybrid E4WD F1 DCT?
25 km
16 mi
How fast is 2023 SF90 XX Stradale 4.0 V8 (1030 Hp) Plug-in Hybrid E4WD F1 DCT?
320 km/h | 199 mph
0-100 km/h: 2.3 sec
0-60 mph: 2.2 sec
What is the power output of Ferrari SF90 Coupe 2023 4.0 V8 (1030 Hp) Plug-in Hybrid E4WD F1 DCT?
1030 Hp, 804 Nm
593 lb.-ft.
What is the engine displacement of Ferrari SF90 Coupe 2023 4.0 V8 (1030 Hp) Plug-in Hybrid E4WD F1 DCT?
4.0 l
3990 cm3
243.48 cu. in.
What is the number of cylinders in 2023 Ferrari 4.0 V8 (1030 Hp) Plug-in Hybrid E4WD F1 DCT?
8, V-engine
What is the drivetrain of Ferrari SF90 XX Stradale Coupe 2023 4.0 V8 (1030 Hp) Plug-in Hybrid E4WD F1 DCT?
All wheel drive (4x4). PHEV (Plug-in Hybrid Electric Vehicle). The Internal combustion engine (ICE) drives the rear wheels of the vehicle. One electric motor drives the rear wheels. Two electric motors drive the front wheels.
What is the length of 2023 Ferrari SF90 Coupe?
4850 mm
190.94 in.
What is the width of 2023 Ferrari SF90 Coupe?
2014 mm
79.29 in.
What is the kerb weight of 2023 Ferrari SF90 XX Stradale 4.0 V8 (1030 Hp) Plug-in Hybrid E4WD F1 DCT?
1560 kg
3439 lbs.
What are the number of gears and the gearbox type of 2023 Ferrari SF90 XX Stradale 4.0 V8 (1030 Hp) Plug-in Hybrid E4WD F1 DCT?
8, automatic transmission F1 DCT
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
Ferrari
Model
SF90
Generation
SF90 XX Stradale
Modification (Engine)
4.0 V8 (1030 Hp) Plug-in Hybrid E4WD F1 DCT
Start of production
June, 2023
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Body type
Coupe
Seats
2
Doors
2
Looking for Ferrari SF90 on the used-car market?
Check its history →

Performance specs

Fuel Type
Petrol / electricity
Acceleration 0 - 100 km/h
2.3 sec
Acceleration 0 - 62 mph
2.3 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net)
2.2 sec
Acceleration 0 - 200 km/h
6.5 sec
Maximum speed
320 km/h 199 mph
Weight-to-power ratio
1.5 kg/Hp, 660.3 Hp/tonne
Weight-to-torque ratio
1.9 kg/Nm, 515.4 Nm/tonne

Electric and hybrid car specs

Gross battery capacity
7.9 kWh
Battery technology
Lithium-ion (Li-Ion)
Battery location
Behind the back wall of the passenger cabin
Electric range
25 km 16 mi
Max speed (electric)
135 km/h 84 mph
Charging ports
Log in to see.Log in to see.

Electric motor 1

Electric motor location
Front axle, Transverse

Electric motor 2

Electric motor location
Front axle, Transverse

Electric motor 3

Electric motor location
Between the combustion engine and the transmission
System power
1030 Hp

Internal combustion engine specs

Power
797 Hp @ 7900 rpm.
Power per litre
199.7 Hp/l
Torque
804 Nm @ 6250 rpm. 593 lb.-ft. @ 6250 rpm.
Maximum engine speed
8000 rpm.
Engine layout
Middle, Longitudinal
Engine Model/Code
F154FB
Engine displacement
3990 cm3 243.48 cu. in.
Number of cylinders
8
Engine configuration
V-engine
Cylinder Bore
88 mm 3.46 in.
Piston Stroke
82 mm 3.23 in.
Compression ratio
9.5:1
Number of valves per cylinder
4
Fuel injection system
Direct injection
Engine aspiration
Twin Turbo, Intercooler
Engine oil capacity
7.6 l 8.03 US qt | 6.69 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
20.2 l 21.35 US qt | 17.77 UK qt
Engine systems
Particulate filter

Volume and weights

Kerb Weight
1560 kg 3439 lbs.
Fuel tank capacity
68 l 17.96 US gal | 14.96 UK gal

Dimensions

Length
4850 mm 190.94 in.
Width
2014 mm 79.29 in.
Height
1225 mm 48.23 in.
Wheelbase
2650 mm 104.33 in.
Front track
1683 mm 66.26 in.
Rear (Back) track
1674 mm 65.91 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the rear wheels of the vehicle. One electric motor drives the rear wheels. Two electric motors drive the front wheels.
Drive wheel
All wheel drive (4x4)
Number of gears and type of gearbox
8 gears, automatic transmission F1 DCT
Front brakes
Ventilated discs, 398x38 mm
Rear brakes
Ventilated discs, 390x32 mm
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Electric Steering
Tire size
Front wheel tires: 255/35 ZR F20
Rear wheel tires: 315/30 ZR F20
Wheel rim size
Front wheel rims: 20
Rear wheel rims: 20
