Ferrari Mondial t Cabriolet 3.4 i V8 32V (286 Hp) | Technical specs, data, fuel consumption, Dimensions

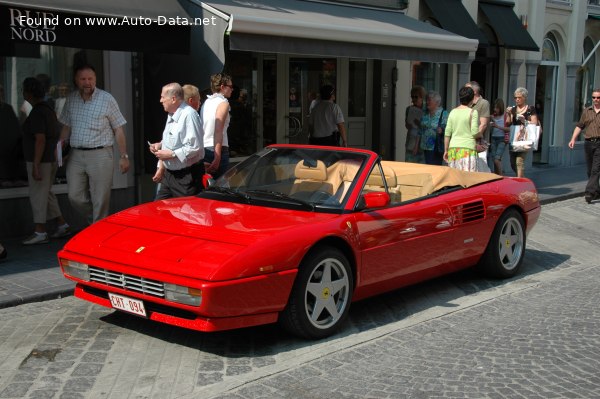

1983 Ferrari Mondial t Cabriolet - Photo 1

Key specs

Ferrari Mondial t Cabriolet 3.4 i V8 32V (286 Hp) /Cabriolet 1989 - 1993/

What is the body type of Ferrari Mondial t Cabriolet?

Cabriolet, 2 Doors, 4 Seats

What is the fuel consumption and economy of Ferrari Mondial t Cabriolet 3.4 i V8 32V (286 Hp)?

11.9 l/100 km
19.8 US mpg
23.7 UK mpg
8.4 km/l

How fast is 1989 Mondial t Cabriolet 3.4 i V8 32V (286 Hp)?

255 km/h | 158 mph
0-100 km/h: 6.3 sec
0-60 mph: 6 sec

What is the power output of Ferrari Mondial Cabriolet 1989 3.4 i V8 32V (286 Hp)?

286 Hp, 309 Nm
228 lb.-ft.

What is the engine displacement of Ferrari Mondial Cabriolet 1989 3.4 i V8 32V (286 Hp)?

3.4 l
3405 cm³
207.79 cu. in.

What is the number of cylinders in 1989 Ferrari 3.4 i V8 32V (286 Hp)?

8, V-engine

What is the drivetrain of Ferrari Mondial t Cabriolet Cabriolet 1989 3.4 i V8 32V (286 Hp)?

Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 1989 Ferrari Mondial Cabriolet?

4535 mm
178.54 in.

What is the width of 1989 Ferrari Mondial Cabriolet?

1810 mm
71.26 in.

What is the kerb weight of 1989 Ferrari Mondial t Cabriolet 3.4 i V8 32V (286 Hp)?

1570 kg
3461 lbs.

What is the maximum permissible mass of 1989 Ferrari Mondial t Cabriolet 3.4 i V8 32V (286 Hp)?

1910 kg
4211 lbs.

What is the trunk (boot) capacity of 1989 Ferrari Mondial Cabriolet?

300 l
10.6 cu. ft.

What are the number of gears and the gearbox type of 1989 Ferrari Mondial t Cabriolet 3.4 i V8 32V (286 Hp)?

5, manual transmission

Ferrari
- Ferrari Mondial
  - Mondial t Cabriolet
    - 8 Quattrovalvole (240 Hp)
    - 3.4 i V8 32V (300 Hp)
    - 3.4 i V8 32V (286 Hp)
    - 3.2 Quattrovalvole (270 Hp)

Compare

General information

Brand

Ferrari

Model

Mondial

Generation

Mondial t Cabriolet

Modification (Engine)

3.4 i V8 32V (286 Hp)

Start of production

1989

End of production

1993

Powertrain Architecture

Internal Combustion engine

Body type

Cabriolet

Seats

Doors

Looking for Ferrari Mondial on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

21.4 l/100 km 11 US mpg
13.2 UK mpg
4.7 km/l

Fuel consumption (economy) - extra urban

9.5 l/100 km 24.8 US mpg
29.7 UK mpg
10.5 km/l

Fuel consumption (economy) - combined

11.9 l/100 km 19.8 US mpg
23.7 UK mpg
8.4 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

6.3 sec

Acceleration 0 - 62 mph

6.3 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

6 sec

Maximum speed

255 km/h 158 mph

Weight-to-power ratio

5.5 kg/Hp, 182.2 Hp/tonne

Weight-to-torque ratio

5.1 kg/Nm, 196.8 Nm/tonne

Engine specs

Power

286 Hp @ 7200 rpm.

Power per litre

84 Hp/l

Torque

309 Nm @ 4300 rpm. 228 lb.-ft. @ 4300 rpm.

Engine displacement

3405 cm³ 207.79 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

85 mm 3.35 in.

Piston Stroke

75 mm 2.95 in.

Compression ratio

10.4:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Engine oil capacity

11 l 11.62 US qt | 9.68 UK qt

Engine oil specification

Coolant

20 l 21.13 US qt | 17.6 UK qt

Volume and weights

Kerb Weight

1570 kg 3461 lbs.

Max. weight

1910 kg 4211 lbs.

Max load

340 kg 750 lbs.

Trunk (boot) space - minimum

300 l 10.6 cu. ft.

Fuel tank capacity

86 l 22.72 US gal | 18.92 UK gal

Dimensions

Length

4535 mm 178.54 in.

Width

1810 mm 71.26 in.

Height

1235 mm 48.62 in.

Wheelbase

2650 mm 104.33 in.

Front track

1520 mm 59.84 in.

Rear (Back) track

1560 mm 61.42 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Coil spring

Rear suspension

Coil spring

Front brakes

Ventilated discs

Rear brakes

Ventilated discs

Assisting systems

ABS (Anti-lock braking system)

Power steering

Hydraulic Steering

Tire size

225/55 R16

Specs of Ferrari Mondial t Cabriolet 3.4 i V8 32V (286 Hp) /1989, 1990, 1991, 1992, 1993/
