Ferrari 612 Scaglietti 5.7 i V12 48V (540 Hp) Automatic | Technical Specs, Fuel consumption, Dimensions

Key specs

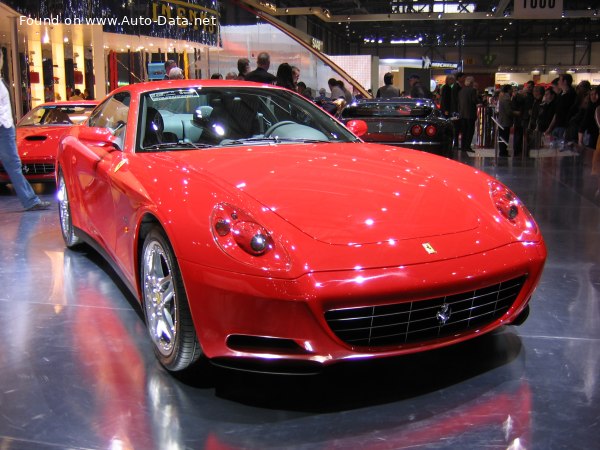

Ferrari 612 Scaglietti 5.7 i V12 48V (540 Hp) Automatic /Coupe 2004 - 2011/

What is the body type of Ferrari 612 Scaglietti?

Coupe, 2 Doors, 4 Seats

What is the fuel consumption and economy of Ferrari 612 Scaglietti 5.7 i V12 48V (540 Hp) Automatic?

12.7 l/100 km
18.5 US mpg
22.2 UK mpg
7.9 km/l

How fast is 2004 612 Scaglietti 5.7 i V12 48V (540 Hp) Automatic?

320 km/h | 199 mph
0-100 km/h: 4 sec
0-60 mph: 3.8 sec

What is the power output of Ferrari 612 Scaglietti Coupe 2004 5.7 i V12 48V (540 Hp) Automatic?

540 Hp, 589 Nm
434 lb.-ft.

What is the engine displacement of Ferrari 612 Scaglietti Coupe 2004 5.7 i V12 48V (540 Hp) Automatic?

5.7 l
5748 cm³
350.76 cu. in.

What is the number of cylinders in 2004 Ferrari 5.7 i V12 48V (540 Hp) Automatic?

12, V-engine

What is the drivetrain of Ferrari 612 Scaglietti Coupe 2004 5.7 i V12 48V (540 Hp) Automatic?

Rear wheel drive. ICE. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 2004 Ferrari 612 Scaglietti Coupe?

4900 mm
192.91 in.

What is the width of 2004 Ferrari 612 Scaglietti Coupe?

1955 mm
76.97 in.

What is the kerb weight of 2004 Ferrari 612 Scaglietti 5.7 i V12 48V (540 Hp) Automatic?

1840 kg
4057 lbs.

What is the trunk (boot) capacity of 2004 Ferrari 612 Scaglietti Coupe?

240 l
8.5 cu. ft.

What are the number of gears and the gearbox type of 2004 Ferrari 612 Scaglietti 5.7 i V12 48V (540 Hp) Automatic?

6, automatic transmission

Ferrari 612 Scaglietti 5.7 i V12 48V (540 Hp) Automatic

Ferrari
- Ferrari 612 Scaglietti
  - 612 Scaglietti
    - 5.7i V12 48V (540 Hp)
    - 5.7 i V12 48V (540 Hp) Automatic

Compare

General information

Brand

Ferrari

Model

612 Scaglietti

Generation

612 Scaglietti

Modification (Engine)

5.7 i V12 48V (540 Hp) Automatic

Start of production

2004

End of production

2011

Powertrain Architecture

Internal Combustion engine

Body type

Coupe

Seats

Doors

Looking for Ferrari 612 Scaglietti on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

29.8 l/100 km 7.9 US mpg
9.5 UK mpg
3.4 km/l

Fuel consumption (economy) - extra urban

11.6 l/100 km 20.3 US mpg
24.4 UK mpg
8.6 km/l

Fuel consumption (economy) - combined

12.7 l/100 km 18.5 US mpg
22.2 UK mpg
7.9 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

4 sec

Acceleration 0 - 62 mph

4 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

3.8 sec

Maximum speed

320 km/h 199 mph

Weight-to-power ratio

3.4 kg/Hp, 293.5 Hp/tonne

Weight-to-torque ratio

3.1 kg/Nm, 320.1 Nm/tonne

Engine specs

Power

540 Hp @ 7250 rpm.

Power per litre

93.9 Hp/l

Torque

589 Nm @ 5250 rpm. 434 lb.-ft. @ 5250 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

F133F

Engine displacement

5748 cm³ 350.76 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

89 mm 3.5 in.

Piston Stroke

77 mm 3.03 in.

Compression ratio

11.2:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Engine oil capacity

13 l 13.74 US qt | 11.44 UK qt

Engine oil specification

Coolant

19 l 20.08 US qt | 16.72 UK qt

Volume and weights

Kerb Weight

1840 kg 4057 lbs.

Trunk (boot) space - maximum

240 l 8.5 cu. ft.

Fuel tank capacity

108 l 28.53 US gal | 23.76 UK gal

Dimensions

Length

4900 mm 192.91 in.

Width

1955 mm 76.97 in.

Height

1345 mm 52.95 in.

Wheelbase

2950 mm 116.14 in.

Front track

1690 mm 66.54 in.

Rear (Back) track

1640 mm 64.57 in.

Ride height (ground clearance)

130 mm 5.12 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

6 gears, automatic transmission

Front suspension

Double wishbone

Rear suspension

Double wishbone

Front brakes

Ventilated discs

Rear brakes

Ventilated discs

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Tire size

245/45 R18; 285/40 R19

Wheel rim size

8.5J x 18; 9.5J x 19
