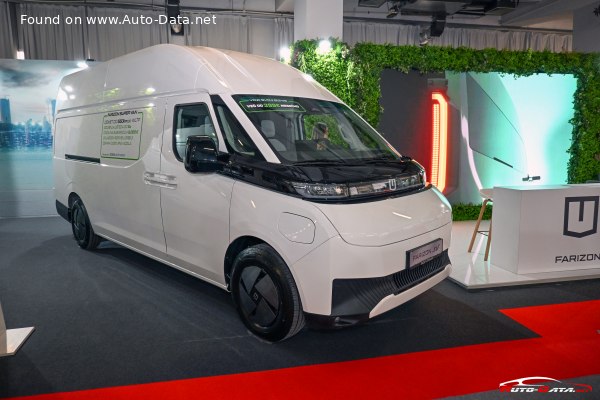

Farizon SV L3H3 106 kWh (231 Hp) Electric | Technical specs, data, battery, electric range, Dimensions

Key specs

Farizon SV L3H3 106 kWh (231 Hp) Electric /Van 2024 - /

What is the body type of Farizon SV L3H3?

Van, 4 Doors, 3 Seats

What is the all-electric range of 106 kWh (231 Hp) Electric?

397.5 km
247 mi

How fast is 2024 SV L3H3 106 kWh (231 Hp) Electric?

135 km/h | 84 mph

What is the power output of Farizon SV Van 2024 106 kWh (231 Hp) Electric?

231 Hp, 336 Nm
248 lb.-ft.

What is the drivetrain of Farizon SV L3H3 Van 2024 106 kWh (231 Hp) Electric?

Front wheel drive. BEV (Electric Vehicle). One electric motor drives the front wheels.

What is the length of 2024 Farizon SV Van?

5995 mm
236.02 in.

What is the width of 2024 Farizon SV Van?

1980 mm
77.95 in.

What is the kerb weight of 2024 Farizon SV L3H3 106 kWh (231 Hp) Electric?

2465 kg
5434 lbs.

What is the maximum permissible mass of 2024 Farizon SV L3H3 106 kWh (231 Hp) Electric?

3500 kg
7716 lbs.

What is the trunk (boot) capacity of 2024 Farizon SV Van?

13000 l
459.1 cu. ft.

What are the number of gears and the gearbox type of 2024 Farizon SV L3H3 106 kWh (231 Hp) Electric?

1, automatic transmission

Farizon
- Farizon SV
  - SV L3H3
    - 83 kWh (231 Hp) Electric
    - 106 kWh (231 Hp) Electric

Compare

General information

Brand

Farizon

Model

Generation

SV L3H3

Modification (Engine)

106 kWh (231 Hp) Electric

Start of production

2024

Powertrain Architecture

BEV (Electric Vehicle)

Body type

Van

Seats

Doors

Looking for Farizon SV on the used-car market?

Check its history →

Performance specs

Fuel Type

Electricity

Maximum speed

135 km/h, Electronically limited 84 mph

Weight-to-power ratio

10.7 kg/Hp, 93.7 Hp/tonne

Weight-to-torque ratio

7.3 kg/Nm, 136.3 Nm/tonne

Electric and hybrid car specs

Gross battery capacity

106 kWh

Battery technology

Lithium nickel manganese cobalt oxides (Li-NMC)

Battery location

Below the floor

Electric range (WLTP)

397.5 km 247 mi

Charging ports

Charging times

Electric motor 1

Electric motor power

231 Hp

Electric motor Torque

336 Nm 248 lb.-ft.

Electric motor location

Front axle, Transverse

Electric motor type

Synchronous

System power

231 Hp

System torque

336 Nm 248 lb.-ft.

Volume and weights

Kerb Weight

2465 kg 5434 lbs.

Max. weight

3500 kg 7716 lbs.

Max load

1035 kg 2282 lbs.

Trunk (boot) space - maximum

13000 l 459.1 cu. ft.

Permitted trailer load with brakes (12%)

2000 kg 4409 lbs.

Permitted trailer load without brakes

750 kg 1653 lbs.

Dimensions

Length

5995 mm 236.02 in.

Width

1980 mm 77.95 in.

Height

2500 mm 98.43 in.

Wheelbase

3850 mm 151.57 in.

Front track

1719 mm 67.68 in.

Rear (Back) track

1722 mm 67.8 in.

Front overhang

830 mm 32.68 in.

Rear overhang

1315 mm 51.77 in.

Ride height (ground clearance)

150 mm 5.91 in.

Minimum turning circle (turning diameter)

14.8 m 48.56 ft.

Approach angle

22°

Departure angle

15-17°

Drivetrain, brakes and suspension specs

Drivetrain Architecture

One electric motor drives the front wheels.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

1 gears, automatic transmission

Front suspension

Double wishbone

Rear suspension

Leaf spring

Front brakes

Disc

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

215/75 R16

Wheel rim size

Specs of Farizon SV L3H3 106 kWh (231 Hp) Electric /2024, 2025, 2026/
