Cupra Formentor (facelift 2024) VZ5 2.5 TSI (390 Hp) 4Drive DSG | Technical specs, data, fuel consumption, Dimensions

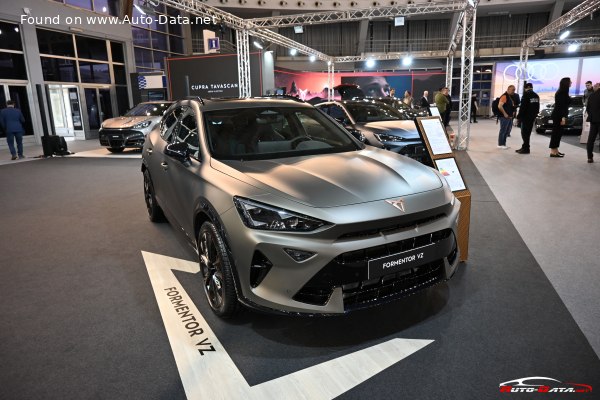

2024 Cupra Formentor (facelift 2024) - Photo 1

Key specs

Cupra Formentor (facelift 2024) VZ5 2.5 TSI (390 Hp) 4Drive DSG /SUV (Sport Utility Vehicle), Crossover 2025 - /

What is the body type of Cupra Formentor (facelift 2024)?

SUV (Sport Utility Vehicle), Crossover, 5 Doors, 5 Seats

What is the fuel consumption and economy of Cupra Formentor (facelift 2024) VZ5 2.5 TSI (390 Hp) 4Drive DSG?

10.1-10.2 l/100 km
23.3 - 23.1 US mpg
28 - 27.7 UK mpg
9.9 - 9.8 km/l

How environmentally friendly is Cupra Formentor VZ5 2.5 TSI (390 Hp) 4Drive DSG?

229-231 g/km CO₂

How fast is 2025 Formentor (facelift 2024) VZ5 2.5 TSI (390 Hp) 4Drive DSG?

280 km/h | 174 mph
0-100 km/h: 4.2 sec
0-60 mph: 4 sec

What is the power output of Cupra Formentor SUV (Sport Utility Vehicle), Crossover 2025 VZ5 2.5 TSI (390 Hp) 4Drive DSG?

390 Hp, 480 Nm
354 lb.-ft.

What is the engine displacement of Cupra Formentor SUV (Sport Utility Vehicle), Crossover 2025 VZ5 2.5 TSI (390 Hp) 4Drive DSG?

2.5 l
2480 cm³
151.34 cu. in.

What is the number of cylinders in 2025 Cupra VZ5 2.5 TSI (390 Hp) 4Drive DSG?

5, Inline

What is the drivetrain of Cupra Formentor (facelift 2024) SUV (Sport Utility Vehicle), Crossover 2025 VZ5 2.5 TSI (390 Hp) 4Drive DSG?

All wheel drive (4x4). Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.

What is the length of 2025 Cupra Formentor SUV (Sport Utility Vehicle), Crossover?

4484 mm
176.54 in.

What is the width of 2025 Cupra Formentor SUV (Sport Utility Vehicle), Crossover?

1852 mm
72.91 in.

What is the kerb weight of 2025 Cupra Formentor (facelift 2024) VZ5 2.5 TSI (390 Hp) 4Drive DSG?

1626 kg
3585 lbs.

What is the maximum permissible mass of 2025 Cupra Formentor (facelift 2024) VZ5 2.5 TSI (390 Hp) 4Drive DSG?

2140 kg
4718 lbs.

What is the trunk (boot) capacity of 2025 Cupra Formentor SUV (Sport Utility Vehicle), Crossover?

410 l
14.5 cu. ft.

What are the number of gears and the gearbox type of 2025 Cupra Formentor (facelift 2024) VZ5 2.5 TSI (390 Hp) 4Drive DSG?

7, automatic transmission DSG

Cupra
- Cupra Formentor
  - Formentor (facelift 2024)
    - VZ5 2.5 TSI (390 Hp) 4Drive DSG
    - 2.0 TSI (333 Hp) 4Drive DSG
    - 2.0 TSI (265 Hp) DSG
    - 2.0 TSI (204 Hp) 4Drive DSG
    - 2.0 TDI (150 Hp) DSG
    - 1.5 TSI (272 Hp) e-Hybrid DSG
    - 1.5 TSI (204 Hp) e-Hybrid DSG
    - 1.5 TSI (150 Hp)
    - 1.5 eTSI (150 Hp) Mild Hybrid DSG

Compare

General information

Brand

Cupra

Model

Formentor

Generation

Formentor (facelift 2024)

Modification (Engine)

VZ5 2.5 TSI (390 Hp) 4Drive DSG

Start of production

November, 2025

Powertrain Architecture

Internal Combustion engine

Body type

SUV (Sport Utility Vehicle), Crossover

Seats

Doors

Looking for Cupra Formentor on the used-car market?

Check its history →

Performance specs

Combined fuel consumption (WLTP)

10.1-10.2 l/100 km 23.3 - 23.1 US mpg
28 - 27.7 UK mpg
9.9 - 9.8 km/l

CO₂ emissions (WLTP)

229-231 g/km

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

4.2 sec

Acceleration 0 - 62 mph

4.2 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

4 sec

Maximum speed

280 km/h 174 mph

Weight-to-power ratio

4.2 kg/Hp, 239.9 Hp/tonne

Weight-to-torque ratio

3.4 kg/Nm, 295.2 Nm/tonne

Engine specs

Power

390 Hp @ 5700-7000 rpm.

Power per litre

157.3 Hp/l

Torque

480 Nm @ 2250-5700 rpm. 354 lb.-ft. @ 2250-5700 rpm.

Engine layout

Front, Transverse

Engine displacement

2480 cm³ 151.34 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

82.5 mm 3.25 in.

Piston Stroke

92.8 mm 3.65 in.

Compression ratio

10:1

Number of valves per cylinder

Fuel injection system

Direct injection

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Engine oil specification

Engine systems

Start & Stop System
Particulate filter

Volume and weights

Kerb Weight

1626 kg 3585 lbs.

Max. weight

2140 kg 4718 lbs.

Max load

514 kg 1133 lbs.

Trunk (boot) space - minimum

410 l 14.5 cu. ft.

Fuel tank capacity

55 l 14.53 US gal | 12.1 UK gal

Dimensions

Length

4484 mm 176.54 in.

Width

1852 mm 72.91 in.

Width including mirrors

1992 mm 78.43 in.

Height

1505 mm 59.25 in.

Wheelbase

2681 mm 105.55 in.

Front track

1587 mm 62.48 in.

Rear (Back) track

1561 mm 61.46 in.

Minimum turning circle (turning diameter)

11 m 36.09 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

7 gears, automatic transmission DSG

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Independent multi-link spring suspension with anti-roll bar

Front brakes

Ventilated discs, 357x34 mm

Rear brakes

Ventilated discs, 310x22 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

255/35 R20

Wheel rim size

8.5J x 20
