Specs of Citroen Xsara (N1, Phase III) 2.0 HDi (109 Hp) /2003, 2004/

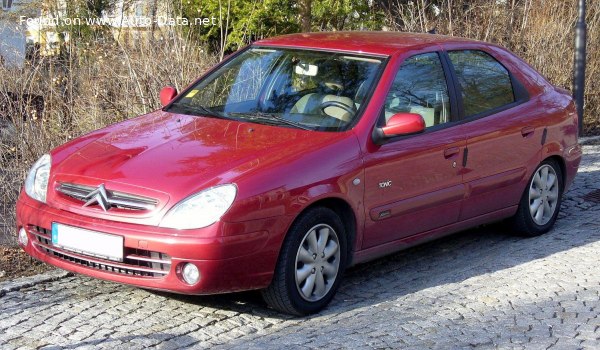

2003 Citroen Xsara (N1, Phase III) - Photo 1
Citroen Xsara (N1, Phase III) - Photo 2

Key specs

Citroen Xsara (N1, Phase III) 2.0 HDi (109 Hp) /Hatchback 2003 - 2004/

What is the body type of Citroen Xsara (N1, Phase III)?
Hatchback, 5 Doors, 5 Seats
What is the fuel consumption and economy of Citroen Xsara (N1, Phase III) 2.0 HDi (109 Hp)?
5.2 l/100 km
45.2 US mpg
54.3 UK mpg
19.2 km/l
How environmentally friendly is Citroen Xsara 2.0 HDi (109 Hp)?
138 g/km CO2
Euro 3
How fast is 2003 Xsara (N1, Phase III) 2.0 HDi (109 Hp)?
193 km/h | 120 mph
0-100 km/h: 11.5 sec
0-60 mph: 10.9 sec
What is the power output of Citroen Xsara Hatchback 2003 2.0 HDi (109 Hp)?
109 Hp, 250 Nm
184 lb.-ft.
What is the engine displacement of Citroen Xsara Hatchback 2003 2.0 HDi (109 Hp)?
2.0 l
1997 cm3
121.86 cu. in.
What is the number of cylinders in 2003 Citroen 2.0 HDi (109 Hp)?
4, Inline
What is the drivetrain of Citroen Xsara (N1, Phase III) Hatchback 2003 2.0 HDi (109 Hp)?
Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.
What is the length of 2003 Citroen Xsara Hatchback?
4188 mm
164.88 in.
What is the width of 2003 Citroen Xsara Hatchback?
1705 mm
67.13 in.
What is the kerb weight of 2003 Citroen Xsara (N1, Phase III) 2.0 HDi (109 Hp)?
1216 kg
2681 lbs.
What is the maximum permissible mass of 2003 Citroen Xsara (N1, Phase III) 2.0 HDi (109 Hp)?
1736 kg
3827 lbs.
What is the trunk (boot) capacity of 2003 Citroen Xsara Hatchback?
408 - 1190 l
14.4 - 42 cu. ft.
What is the number of gears in What is the gearbox type of 2003 Citroen Xsara (N1, Phase III) 2.0 HDi (109 Hp)?
5, manual transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
Citroen
Model
Xsara
Generation
Xsara (N1, Phase III)
Modification (Engine)
2.0 HDi (109 Hp)
Start of production
February, 2003 year
End of production
2004 year
Powertrain Architecture
Internal Combustion engine
Body type
Hatchback
Seats
5
Doors
5
Looking for Citroen Xsara on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - urban
7 l/100 km 33.6 US mpg
40.4 UK mpg
14.3 km/l
Fuel consumption (economy) - extra urban
4.2 l/100 km 56 US mpg
67.3 UK mpg
23.8 km/l
Fuel consumption (economy) - combined
5.2 l/100 km 45.2 US mpg
54.3 UK mpg
19.2 km/l
CO2 emissions
138 g/km
Fuel Type
Diesel
Acceleration 0 - 100 km/h
11.5 sec
Acceleration 0 - 62 mph
11.5 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net)
10.9 sec
Maximum speed
193 km/h 120 mph
Emission standard
Euro 3
Weight-to-power ratio
11.2 kg/Hp, 89.6 Hp/tonne
Weight-to-torque ratio
4.9 kg/Nm, 205.6 Nm/tonne

Engine specs

Power
109 Hp @ 4000 rpm.
Power per litre
54.6 Hp/l
Torque
250 Nm @ 1750 rpm. 184 lb.-ft. @ 1750 rpm.
Engine layout
Front, Transverse
Engine Model/Code
RHZ DW10ATED
Engine displacement
1997 cm3 121.86 cu. in.
Number of cylinders
4
Engine configuration
Inline
Cylinder Bore
85 mm 3.35 in.
Piston Stroke
88 mm 3.46 in.
Compression ratio
18:1
Number of valves per cylinder
2
Fuel injection system
Diesel Commonrail
Engine aspiration
Turbocharger, Intercooler
Valvetrain
OHC
Engine oil capacity
4.2 l 4.44 US qt | 3.7 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
5.8 l 6.13 US qt | 5.1 UK qt

Volume and weights

Kerb Weight
1216 kg 2681 lbs.
Max. weight
1736 kg 3827 lbs.
Max load
520 kg 1146 lbs.
Trunk (boot) space - minimum
408 l 14.4 cu. ft.
Trunk (boot) space - maximum
1190 l 42 cu. ft.
Fuel tank capacity
54 l 14.27 US gal | 11.88 UK gal
Max. roof load
75 kg 165 lbs.
Permitted trailer load with brakes (12%)
1100 kg 2425 lbs.
Permitted trailer load without brakes
615 kg 1356 lbs.
Permitted towbar download
70 kg 154 lbs.

Dimensions

Length
4188 mm 164.88 in.
Width
1705 mm 67.13 in.
Width including mirrors
2014 mm 79.29 in.
Height
1405 mm 55.31 in.
Wheelbase
2540 mm 100 in.
Front track
1433 mm 56.42 in.
Rear (Back) track
1442 mm 56.77 in.
Front overhang
880 mm 34.65 in.
Rear overhang
768 mm 30.24 in.
Minimum turning circle (turning diameter)
11.5 m 37.73 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel
Front wheel drive
Number of gears and type of gearbox
5 gears, manual transmission
Front suspension
Independent, McPherson type with coil spring and anti-roll bar
Rear suspension
Torsion bar
Front brakes
Ventilated discs
Rear brakes
Disc
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Hydraulic Steering
Tires size
195/55 R15
Wheel rims size
6J x 15
