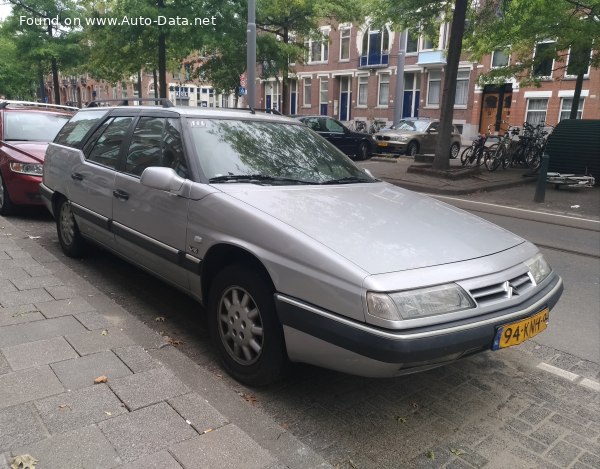

Citroen XM Break (Y4) 2.1 Turbo D12 (109 Hp) Automatic | Technical specs, data, fuel consumption, Dimensions

Key specs

Citroen XM Break (Y4) 2.1 Turbo D12 (109 Hp) Automatic /Station wagon (estate) 1994 - 1999/

What is the body type of Citroen XM Break (Y4)?

Station wagon (estate), 5 Doors, 5 Seats

What is the fuel consumption and economy of Citroen XM Break (Y4) 2.1 Turbo D12 (109 Hp) Automatic?

8.7 l/100 km
27 US mpg
32.5 UK mpg
11.5 km/l

How environmentally friendly is Citroen XM 2.1 Turbo D12 (109 Hp) Automatic?

230 g/km CO₂
Euro 2

How fast is 1994 XM Break (Y4) 2.1 Turbo D12 (109 Hp) Automatic?

180 km/h | 112 mph
0-100 km/h: 15.4 sec
0-60 mph: 14.6 sec

What is the power output of Citroen XM Station wagon (estate) 1994 2.1 Turbo D12 (109 Hp) Automatic?

109 Hp, 250 Nm
184 lb.-ft.

What is the engine displacement of Citroen XM Station wagon (estate) 1994 2.1 Turbo D12 (109 Hp) Automatic?

2.1 l
2088 cm³
127.42 cu. in.

What is the number of cylinders in 1994 Citroen 2.1 Turbo D12 (109 Hp) Automatic?

4, Inline

What is the drivetrain of Citroen XM Break (Y4) Station wagon (estate) 1994 2.1 Turbo D12 (109 Hp) Automatic?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 1994 Citroen XM Station wagon (estate)?

4963 mm
195.39 in.

What is the width of 1994 Citroen XM Station wagon (estate)?

1794 mm
70.63 in.

What is the kerb weight of 1994 Citroen XM Break (Y4) 2.1 Turbo D12 (109 Hp) Automatic?

1632 kg
3598 lbs.

What is the maximum permissible mass of 1994 Citroen XM Break (Y4) 2.1 Turbo D12 (109 Hp) Automatic?

2190 kg
4828 lbs.

What is the trunk (boot) capacity of 1994 Citroen XM Station wagon (estate)?

750 - 1960 l
26.5 - 69.2 cu. ft.

What are the number of gears and the gearbox type of 1994 Citroen XM Break (Y4) 2.1 Turbo D12 (109 Hp) Automatic?

4, automatic transmission

Citroen
- Citroen XM
  - XM Break (Y4)
    - 3.0 V6 (190 Hp) Automatic
    - 3.0 V6 (190 Hp)
    - 3.0 V6 (167 Hp) Automatic
    - 3.0 V6 (167 Hp)
    - 2.5 Turbo D (129 Hp)
    - 2.1 Turbo D12 (109 Hp) Automatic
    - 2.1 Turbo D12 (109 Hp)
    - 2.0 Turbo CT (147 Hp) Automatic
    - 2.0 Turbo CT (147 Hp)
    - 2.0 i 16V (132 Hp) Automatic
    - 2.0 i 16V (132 Hp)

Compare

General information

Brand

Citroen

Model

Generation

XM Break (Y4)

Modification (Engine)

2.1 Turbo D12 (109 Hp) Automatic

Start of production

1994

End of production

1999

Powertrain Architecture

Internal Combustion engine

Body type

Station wagon (estate)

Seats

Doors

Looking for Citroen XM on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

12.3 l/100 km 19.1 US mpg
23 UK mpg
8.1 km/l

Fuel consumption (economy) - extra urban

6.6 l/100 km 35.6 US mpg
42.8 UK mpg
15.2 km/l

Fuel consumption (economy) - combined

8.7 l/100 km 27 US mpg
32.5 UK mpg
11.5 km/l

CO₂ emissions

230 g/km

Fuel Type

Diesel

Acceleration 0 - 100 km/h

15.4 sec

Acceleration 0 - 62 mph

15.4 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

14.6 sec

Maximum speed

180 km/h 112 mph

Emission standard

Euro 2

Weight-to-power ratio

15 kg/Hp, 66.8 Hp/tonne

Weight-to-torque ratio

6.5 kg/Nm, 153.2 Nm/tonne

Engine specs

Power

109 Hp @ 4300 rpm.

Power per litre

52.2 Hp/l

Torque

250 Nm @ 2000 rpm. 184 lb.-ft. @ 2000 rpm.

Engine layout

Front, Transverse

Engine Model/Code

P8C XUD11BTE

Engine displacement

2088 cm³ 127.42 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

85 mm 3.35 in.

Piston Stroke

92 mm 3.62 in.

Compression ratio

21.5:1

Number of valves per cylinder

Fuel injection system

Precombustion chamber injection

Engine aspiration

Turbocharger, Intercooler

Valvetrain

OHC

Engine oil capacity

6 l 6.34 US qt | 5.28 UK qt

Engine oil specification

Coolant

10 l 10.57 US qt | 8.8 UK qt

Volume and weights

Kerb Weight

1632 kg 3598 lbs.

Max. weight

2190 kg 4828 lbs.

Max load

558 kg 1230 lbs.

Trunk (boot) space - minimum

750 l 26.5 cu. ft.

Trunk (boot) space - maximum

1960 l 69.2 cu. ft.

Fuel tank capacity

80 l 21.13 US gal | 17.6 UK gal

Max. roof load

100 kg 220 lbs.

Permitted trailer load with brakes (12%)

1500 kg 3307 lbs.

Permitted trailer load without brakes

750 kg 1653 lbs.

Permitted towbar download

80 kg 176 lbs.

Dimensions

Length

4963 mm 195.39 in.

Width

1794 mm 70.63 in.

Height

1467 mm 57.76 in.

Wheelbase

2850 mm 112.2 in.

Front track

1520 mm 59.84 in.

Rear (Back) track

1447 mm 56.97 in.

Front overhang

1068 mm 42.05 in.

Rear overhang

1045 mm 41.14 in.

Ride height (ground clearance)

141 mm 5.55 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

4 gears, automatic transmission

Front suspension

Independent, McPherson type, Wishbone

Rear suspension

Hydro-pneumatic element, Trailing arm

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

205/65 R15

Wheel rim size
