1991 Citroen XM Break (Y3) 3.0 i V6 (170 Hp) Automatic

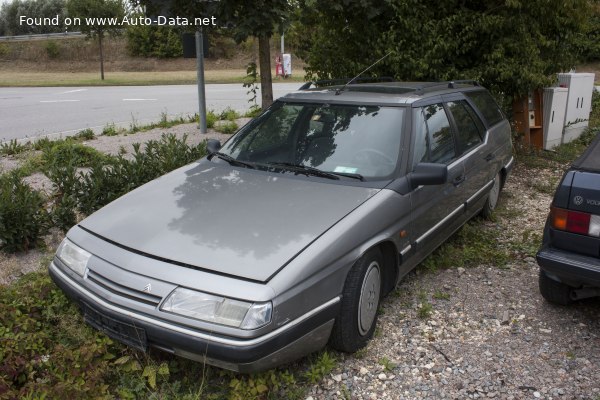

1990 Citroen XM Break (Y3) - Photo 1
Citroen XM Break (Y3) - Photo 2Citroen XM Break (Y3) - Photo 3

Key specs

Citroen XM Station wagon (estate) 1991, 1992, 1993, 1994

What is the body type, Citroen XM Break (Y3)?Station wagon (estate), 5 Doors, 5 Seats
How fast is the car, 1991 XM Break (Y3) 3.0 i V6 (170 Hp) Automatic?215 km/h | 133.59 mph
0-100 km/h: 12.5 sec
0-60 mph: 11.9 sec
How much power, Citroen XM Station wagon (estate) 1991 3.0 i V6 (170 Hp) Automatic?170 Hp, 235 Nm
173.33 lb.-ft.
What is the engine size, Citroen XM Station wagon (estate) 1991 3.0 i V6 (170 Hp) Automatic?3.0 l
2975 cm3
181.55 cu. in.
How many cylinders, 1991 Citroen 3.0 i V6 (170 Hp) Automatic?6, V-engine
What is the drivetrain, Citroen XM Break (Y3) Station wagon (estate) 1991 3.0 i V6 (170 Hp) Automatic?Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.
How long is this vehicle, 1991 Citroen XM Station wagon (estate)?4963 mm
195.39 in.
How wide is the vehicle, 1991 Citroen XM Station wagon (estate)?1794 mm
70.63 in.
What is the curb weight, 1991 Citroen XM Break (Y3) 3.0 i V6 (170 Hp) Automatic?1544 kg
3403.94 lbs.
What is the gross weight, 1991 Citroen XM Break (Y3) 3.0 i V6 (170 Hp) Automatic?2130 kg
4695.85 lbs.
How much trunk (boot) space, 1991 Citroen XM Station wagon (estate)?720 - 1960 l
25.43 - 69.22 cu. ft.
How many gears, What type is the gearbox, 1991 Citroen XM Break (Y3) 3.0 i V6 (170 Hp) Automatic?4, automatic transmission

Citroen XM Break (Y3) 3.0 i V6 (170 Hp) Automatic 1991, 1992, 1993, 1994 Specs

General information
BrandCitroen
Model XM
Generation XM Break (Y3)
Modification (Engine) 3.0 i V6 (170 Hp) Automatic
Start of production 1991 year
End of production 1994 year
Powertrain Architecture Internal Combustion engine
Body typeStation wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) - urban 16.9 l/100 km 13.92 US mpg
16.71 UK mpg
5.92 km/l
Fuel consumption (economy) - extra urban 8.3 l/100 km 28.34 US mpg
34.03 UK mpg
12.05 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 - 100 km/h12.5 sec
Acceleration 0 - 62 mph12.5 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net) 11.9 sec
Maximum speed 215 km/h 133.59 mph
Weight-to-power ratio 9.1 kg/Hp, 110.1 Hp/tonne
Weight-to-torque ratio 6.6 kg/Nm, 152.2 Nm/tonne
Engine specs
Power 170 Hp @ 5600 rpm.
Power per litre 57.1 Hp/l
Torque 235 Nm @ 4600 rpm. 173.33 lb.-ft. @ 4600 rpm.
Engine layout Front, Transverse
Engine Model/Code SFZ ZPJ
Engine displacement 2975 cm3 181.55 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 93 mm 3.66 in.
Piston Stroke 73 mm 2.87 in.
Compression ratio 9.5
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 7 l 7.4 US qt | 6.16 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10 l 10.57 US qt | 8.8 UK qt
Space, Volume and weights
Kerb Weight 1544 kg 3403.94 lbs.
Max. weight 2130 kg 4695.85 lbs.
Max load 586 kg 1291.91 lbs.
Trunk (boot) space - minimum 720 l 25.43 cu. ft.
Trunk (boot) space - maximum 1960 l 69.22 cu. ft.
Fuel tank capacity 80 l 21.13 US gal | 17.6 UK gal
Max. roof load 100 kg 220.46 lbs.
Permitted trailer load with brakes (12%) 1500 kg 3306.93 lbs.
Permitted trailer load without brakes 750 kg 1653.47 lbs.
Permitted towbar download 80 kg 176.37 lbs.
Dimensions
Length 4963 mm 195.39 in.
Width 1794 mm 70.63 in.
Width including mirrors 2000 mm 78.74 in.
Height 1385 mm 54.53 in.
Wheelbase 2850 mm 112.2 in.
Front track 1520 mm 59.84 in.
Rear (Back) track 1450 mm 57.09 in.
Front overhang 1068 mm 42.05 in.
Rear overhang 1045 mm 41.14 in.
Ride height (ground clearance) 141 mm 5.55 in.
Minimum turning circle (turning diameter) 12.5 m 41.01 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Independent type McPherson, Wishbone
Rear suspension Hydro-pneumatic element, Trailing arm
Front brakesVentilated discs
Rear brakesDisc
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/60 R15
