Specs of Citroen Jumpy II 1.6 HDi (90 Hp) L1H1 /2007, 2008, 2009, 2010/

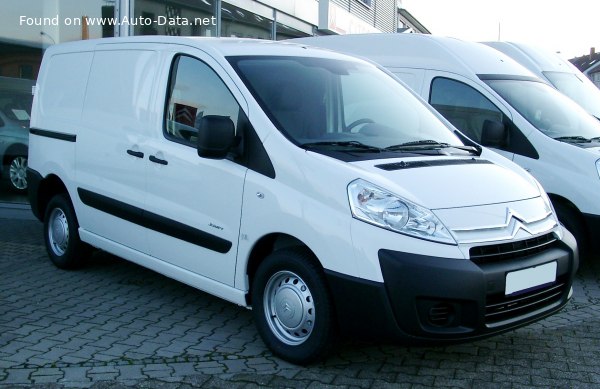

2007 Citroen Jumpy II - Photo 1
Citroen Jumpy II - Photo 2Citroen Jumpy II - Photo 3Citroen Jumpy II - Photo 4Citroen Jumpy II - Photo 5

Key specs

Citroen Jumpy II 1.6 HDi (90 Hp) L1H1 /Minivan 2007 - 2010/

What is the body type of Citroen Jumpy II?
Minivan, 4 Doors, 3 Seats
What is the fuel consumption and economy of Citroen Jumpy II 1.6 HDi (90 Hp) L1H1?
7.2-7.5 l/100 km
32.7 - 31.4 US mpg
39.2 - 37.7 UK mpg
13.9 - 13.3 km/l
How environmentally friendly is Citroen Jumpy 1.6 HDi (90 Hp) L1H1?
191 g/km CO2
Euro 4
How fast is 2007 Jumpy II 1.6 HDi (90 Hp) L1H1?
145 km/h | 90 mph
0-100 km/h: 21.1 sec
0-60 mph: 20 sec
What is the power output of Citroen Jumpy Minivan 2007 1.6 HDi (90 Hp) L1H1?
90 Hp, 180 Nm
133 lb.-ft.
What is the engine displacement of Citroen Jumpy Minivan 2007 1.6 HDi (90 Hp) L1H1?
1.6 l
1560 cm3
95.2 cu. in.
What is the number of cylinders in 2007 Citroen 1.6 HDi (90 Hp) L1H1?
4, Inline
What is the drivetrain of Citroen Jumpy II Minivan 2007 1.6 HDi (90 Hp) L1H1?
Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.
What is the length of 2007 Citroen Jumpy Minivan?
4805 mm
189.17 in.
What is the width of 2007 Citroen Jumpy Minivan?
1895 mm
74.61 in.
What is the kerb weight of 2007 Citroen Jumpy II 1.6 HDi (90 Hp) L1H1?
1661 kg
3662 lbs.
What is the maximum permissible mass of 2007 Citroen Jumpy II 1.6 HDi (90 Hp) L1H1?
2661 kg
5867 lbs.
What is the trunk (boot) capacity of 2007 Citroen Jumpy Minivan?
5000 l
176.6 cu. ft.
What is the number of gears in 2007 Citroen Jumpy II 1.6 HDi (90 Hp) L1H1?
5, manual transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
Citroen
Model
Jumpy
Generation
Jumpy II
Modification (Engine)
1.6 HDi (90 Hp) L1H1
Start of production
2007 year
End of production
2010 year
Powertrain Architecture
Internal Combustion engine
Body type
Minivan
Seats
3
Doors
4
Looking for Citroen Jumpy on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - urban
8.4-8.6 l/100 km 28 - 27.4 US mpg
33.6 - 32.8 UK mpg
11.9 - 11.6 km/l
Fuel consumption (economy) - extra urban
6.6-6.8 l/100 km 35.6 - 34.6 US mpg
42.8 - 41.5 UK mpg
15.2 - 14.7 km/l
Fuel consumption (economy) - combined
7.2-7.5 l/100 km 32.7 - 31.4 US mpg
39.2 - 37.7 UK mpg
13.9 - 13.3 km/l
CO2 emissions
191 g/km
Fuel Type
Diesel
Acceleration 0 - 100 km/h
21.1 sec
Acceleration 0 - 62 mph
21.1 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net)
20 sec
Maximum speed
145 km/h 90 mph
Emission standard
Euro 4
Weight-to-power ratio
18.5 kg/Hp, 54.2 Hp/tonne
Weight-to-torque ratio
9.2 kg/Nm, 108.4 Nm/tonne

Engine specs

Power
90 Hp @ 4000 rpm.
Power per litre
57.7 Hp/l
Torque
180 Nm @ 1750 rpm. 133 lb.-ft. @ 1750 rpm.
Engine layout
Front, Transverse
Engine Model/Code
9HU DV6UTED4
Engine displacement
1560 cm3 95.2 cu. in.
Number of cylinders
4
Engine configuration
Inline
Cylinder Bore
75 mm 2.95 in.
Piston Stroke
88.3 mm 3.48 in.
Number of valves per cylinder
4
Fuel injection system
Diesel Commonrail
Engine aspiration
Turbocharger, Intercooler
Engine oil capacity
5.25 l 5.55 US qt | 4.62 UK qt
Engine oil specification
Log in to see.Log in to see.

Volume and weights

Kerb Weight
1661 kg 3662 lbs.
Max. weight
2661 kg 5867 lbs.
Max load
1000 kg 2205 lbs.
Trunk (boot) space - maximum
5000 l 176.6 cu. ft.
Fuel tank capacity
80 l 21.13 US gal | 17.6 UK gal
Max. roof load
170 kg 375 lbs.
Permitted trailer load with brakes (12%)
1672 kg 3686 lbs.
Permitted trailer load without brakes
750 kg 1653 lbs.
Permitted towbar download
70 kg 154 lbs.

Dimensions

Length
4805 mm 189.17 in.
Width
1895 mm 74.61 in.
Width with mirrors folded
1986 mm 78.19 in.
Width including mirrors
2194 mm 86.38 in.
Height
1880 mm 74.02 in.
Wheelbase
3000 mm 118.11 in.
Front track
1570 mm 61.81 in.
Rear (Back) track
1604 mm 63.15 in.
Front overhang
975 mm 38.39 in.
Rear overhang
830 mm 32.68 in.
Minimum turning circle (turning diameter)
12.18 m 39.96 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel
Front wheel drive
Number of gears and type of gearbox
5 gears, manual transmission
Front suspension
Independent, McPherson type with coil spring and anti-roll bar
Rear suspension
Semi-independent beam with anti-roll bar
Front brakes
Ventilated discs, 280x28 mm
Rear brakes
Drum
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Tires size
215/65 R15
Wheel rims size
15
