Citroen Dyane I (Phase I) 0.4 (21 Hp) | Technical specs, data, fuel consumption, Dimensions

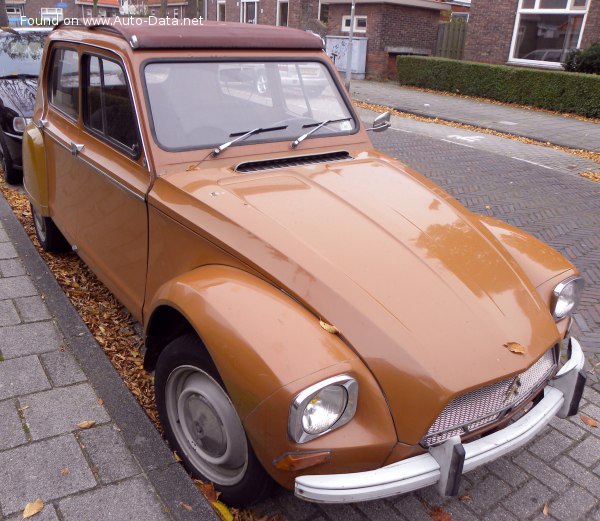

1967 Citroen Dyane I (Phase I) - Photo 1

Key specs

Citroen Dyane I (Phase I) 0.4 (21 Hp) /Sedan, Fastback 1967 - 1968/

What is the body type of Citroen Dyane I (Phase I)?

Sedan, Fastback, 5 Doors, 4 Seats

What is the fuel consumption and economy of Citroen Dyane I (Phase I) 0.4 (21 Hp)?

5-6.5 l/100 km
47 - 36.2 US mpg
56.5 - 43.5 UK mpg
20 - 15.4 km/l

How fast is 1967 Dyane I (Phase I) 0.4 (21 Hp)?

95 km/h | 59 mph

What is the power output of Citroen Dyane Sedan, Fastback 1967 0.4 (21 Hp)?

21 Hp, 29 Nm
21 lb.-ft.

What is the engine displacement of Citroen Dyane Sedan, Fastback 1967 0.4 (21 Hp)?

0.4 l
425 cm³
25.94 cu. in.

What is the number of cylinders in 1967 Citroen 0.4 (21 Hp)?

2, Boxer

What is the drivetrain of Citroen Dyane I (Phase I) Sedan, Fastback 1967 0.4 (21 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 1967 Citroen Dyane Sedan, Fastback?

3905 mm
153.74 in.

What is the width of 1967 Citroen Dyane Sedan, Fastback?

1500 mm
59.06 in.

What is the kerb weight of 1967 Citroen Dyane I (Phase I) 0.4 (21 Hp)?

555 kg
1224 lbs.

What is the maximum permissible mass of 1967 Citroen Dyane I (Phase I) 0.4 (21 Hp)?

875 kg
1929 lbs.

What is the trunk (boot) capacity of 1967 Citroen Dyane Sedan, Fastback?

250 - 1340 l
8.8 - 47.3 cu. ft.

What are the number of gears and the gearbox type of 1967 Citroen Dyane I (Phase I) 0.4 (21 Hp)?

4, manual transmission

Citroen
- Citroen Dyane
  - Dyane I (Phase I)
    - Dyane 6 (33 Hp)
    - Dyane 6 (28 Hp)
    - Dyane 4 (24 Hp)
    - 0.4 (21 Hp)

Compare

General information

Brand

Citroen

Model

Dyane

Generation

Dyane I (Phase I)

Modification (Engine)

0.4 (21 Hp)

Start of production

1967

End of production

October, 1968

Powertrain Architecture

Internal Combustion engine

Body type

Sedan, Fastback

Seats

Doors

Looking for Citroen Dyane on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - combined

5-6.5 l/100 km 47 - 36.2 US mpg
56.5 - 43.5 UK mpg
20 - 15.4 km/l

Fuel Type

Petrol (Gasoline)

Maximum speed

95 km/h 59 mph

Weight-to-power ratio

26.4 kg/Hp, 37.8 Hp/tonne

Weight-to-torque ratio

19.1 kg/Nm, 52.3 Nm/tonne

Engine specs

Power

21 Hp @ 5500-6000 rpm.

Power per litre

49.4 Hp/l

Torque

29 Nm @ 4750 rpm. 21 lb.-ft. @ 4750 rpm.

Engine Model/Code

AYA, A79/0

Engine displacement

425 cm³ 25.94 cu. in.

Number of cylinders

Engine configuration

Boxer

Cylinder Bore

66 mm 2.6 in.

Piston Stroke

62 mm 2.44 in.

Compression ratio

7.9:1

Engine aspiration

Naturally aspirated engine

Engine oil capacity

2.5 l 2.64 US qt | 2.2 UK qt

Engine oil specification

Volume and weights

Kerb Weight

555 kg 1224 lbs.

Max. weight

875 kg 1929 lbs.

Max load

320 kg 705 lbs.

Trunk (boot) space - minimum

250 l 8.8 cu. ft.

Trunk (boot) space - maximum

1340 l 47.3 cu. ft.

Fuel tank capacity

20 l 5.28 US gal | 4.4 UK gal

Dimensions

Length

3905 mm 153.74 in.

Width

1500 mm 59.06 in.

Height

1540 mm 60.63 in.

Wheelbase

2400 mm 94.49 in.

Front track

1260 mm 49.61 in.

Rear (Back) track

1260 mm 49.61 in.

Ride height (ground clearance)

155 mm 6.1 in.

Drag coefficient (C_d)

0.41

Minimum turning circle (turning diameter)

11 m 36.09 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

4 gears, manual transmission

Front suspension

Independent coil spring

Rear suspension
