Citroen C5 II (Phase I, 2008) 1.6 e-HDi (110 Hp) FAP EGS | Technical specs, data, fuel consumption, Dimensions

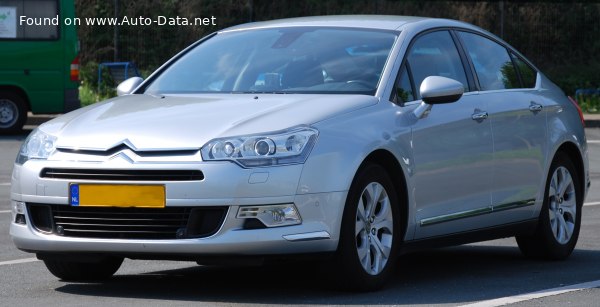

2009 Citroen C5 II (Phase I, 2008) - Photo 1

Key specs

Citroen C5 II (Phase I, 2008) 1.6 e-HDi (110 Hp) FAP EGS /Sedan 2010 - 2012/

What is the body type of Citroen C5 II (Phase I, 2008)?

Sedan, 4 Doors, 5 Seats

What is the fuel consumption and economy of Citroen C5 II (Phase I, 2008) 1.6 e-HDi (110 Hp) FAP EGS?

4.6 l/100 km
51.1 US mpg
61.4 UK mpg
21.7 km/l

How environmentally friendly is Citroen C5 1.6 e-HDi (110 Hp) FAP EGS?

120 g/km CO₂
Euro 5

How fast is 2010 C5 II (Phase I, 2008) 1.6 e-HDi (110 Hp) FAP EGS?

190 km/h | 118 mph
0-100 km/h: 12.6 sec
0-60 mph: 12 sec

What is the power output of Citroen C5 Sedan 2010 1.6 e-HDi (110 Hp) FAP EGS?

110 Hp, 270 Nm
199 lb.-ft.

What is the engine displacement of Citroen C5 Sedan 2010 1.6 e-HDi (110 Hp) FAP EGS?

1.6 l
1560 cm³
95.2 cu. in.

What is the number of cylinders in 2010 Citroen 1.6 e-HDi (110 Hp) FAP EGS?

4, Inline

What is the drivetrain of Citroen C5 II (Phase I, 2008) Sedan 2010 1.6 e-HDi (110 Hp) FAP EGS?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2010 Citroen C5 Sedan?

4779 mm
188.15 in.

What is the width of 2010 Citroen C5 Sedan?

1860 mm
73.23 in.

What is the kerb weight of 2010 Citroen C5 II (Phase I, 2008) 1.6 e-HDi (110 Hp) FAP EGS?

1525 kg
3362 lbs.

What is the maximum permissible mass of 2010 Citroen C5 II (Phase I, 2008) 1.6 e-HDi (110 Hp) FAP EGS?

2062 kg
4546 lbs.

What is the trunk (boot) capacity of 2010 Citroen C5 Sedan?

439 l
15.5 cu. ft.

What are the number of gears and the gearbox type of 2010 Citroen C5 II (Phase I, 2008) 1.6 e-HDi (110 Hp) FAP EGS?

6, automatic transmission EGS

Compare

General information

Brand

Citroen

Model

Generation

C5 II (Phase I, 2008)

Modification (Engine)

1.6 e-HDi (110 Hp) FAP EGS

Start of production

2010

End of production

2012

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Seats

Doors

Looking for Citroen C5 on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

5.5 l/100 km 42.8 US mpg
51.4 UK mpg
18.2 km/l

Fuel consumption (economy) - extra urban

4.1 l/100 km 57.4 US mpg
68.9 UK mpg
24.4 km/l

Fuel consumption (economy) - combined

4.6 l/100 km 51.1 US mpg
61.4 UK mpg
21.7 km/l

CO₂ emissions

120 g/km

Fuel Type

Diesel

Acceleration 0 - 100 km/h

12.6 sec

Acceleration 0 - 62 mph

12.6 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

12 sec

Maximum speed

190 km/h 118 mph

Emission standard

Euro 5

Weight-to-power ratio

13.9 kg/Hp, 72.1 Hp/tonne

Weight-to-torque ratio

5.6 kg/Nm, 177 Nm/tonne

Engine specs

Power

110 Hp @ 3500 rpm.

Power per litre

70.5 Hp/l

Torque

270 Nm @ 1750 rpm. 199 lb.-ft. @ 1750 rpm.

Engine layout

Front, Transverse

Engine Model/Code

9HL DV6C

Engine displacement

1560 cm³ 95.2 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

75 mm 2.95 in.

Piston Stroke

88.3 mm 3.48 in.

Compression ratio

18:1

Number of valves per cylinder

Fuel injection system

Diesel Commonrail

Engine aspiration

Turbocharger, Intercooler

Engine oil capacity

3.75 l 3.96 US qt | 3.3 UK qt

Engine oil specification

Coolant

7.8 l 8.24 US qt | 6.86 UK qt

Engine systems

Particulate filter

Volume and weights

Kerb Weight

1525 kg 3362 lbs.

Max. weight

2062 kg 4546 lbs.

Max load

537 kg 1184 lbs.

Trunk (boot) space - minimum

439 l 15.5 cu. ft.

Fuel tank capacity

71 l 18.76 US gal | 15.62 UK gal

Max. roof load

80 kg 176 lbs.

Permitted trailer load with brakes (12%)

1100 kg 2425 lbs.

Permitted trailer load without brakes

750 kg 1653 lbs.

Permitted towbar download

55 kg 121 lbs.

Dimensions

Length

4779 mm 188.15 in.

Width

1860 mm 73.23 in.

Width including mirrors

2096 mm 82.52 in.

Height

1451-1458 mm 57.13 - 57.4 in.

Wheelbase

2815 mm 110.83 in.

Front track

1586 mm 62.44 in.

Rear (Back) track

1557 mm 61.3 in.

Front overhang

1054 mm 41.5 in.

Rear overhang

910 mm 35.83 in.

Minimum turning circle (turning diameter)

11.7 m 38.39 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

6 gears, automatic transmission EGS

Front suspension

Double wishbone

Rear suspension

Independent multi-link suspension

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

225/60 R16

Wheel rim size

Specs of Citroen C5 II (Phase I, 2008) 1.6 e-HDi (110 Hp) FAP EGS /2010, 2011, 2012/
