Citroen C4 X (Phase I, 2022) e 50 kWh (136 Hp) | Technical specs, data, battery, electric range, Dimensions

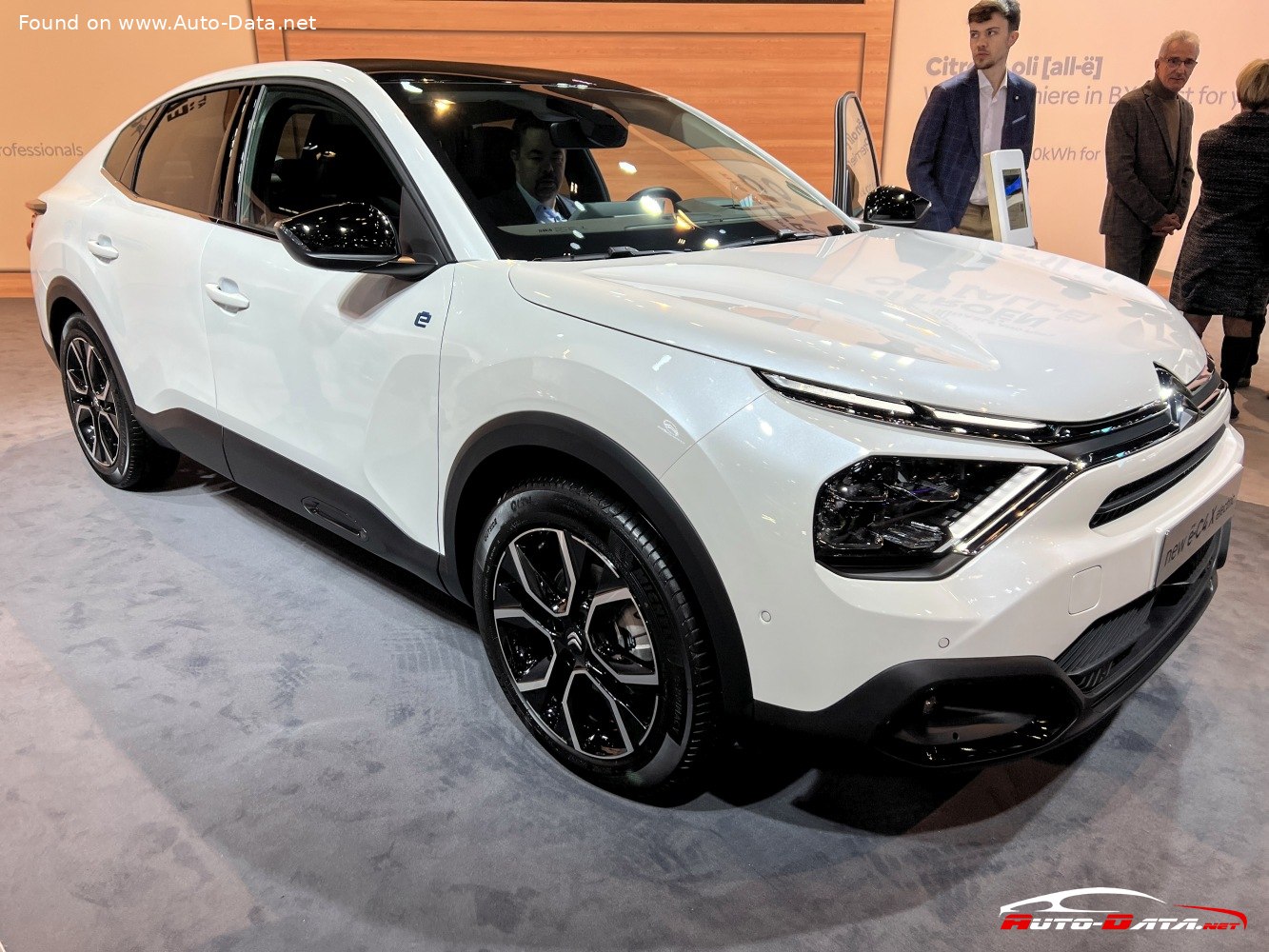

2023 Citroen C4 X (Phase I, 2022) - Photo 1

Key specs

Citroen C4 X (Phase I, 2022) e 50 kWh (136 Hp) /SUV, Crossover, Fastback 2022 - 2024/

What is the body type of Citroen C4 X (Phase I, 2022)?

SUV, Crossover, Fastback, 4 Doors, 5 Seats

What is the all-electric range of e 50 kWh (136 Hp)?

353-360 km
219 - 224 mi

What is the electricity consumption of Citroen C4 X (Phase I, 2022) e 50 kWh (136 Hp)?

15-15.5 kWh/100 km
24.14 - 24.94 kWh/100 mi
140 - 135 MPGe
6.7 - 6.5 km/kWh
4.1 - 4 mi/kWh

How fast is 2022 C4 X (Phase I, 2022) e 50 kWh (136 Hp)?

150 km/h | 93 mph

What is the power output of Citroen C4 X SUV, Crossover, Fastback 2022 e 50 kWh (136 Hp)?

136 Hp, 260 Nm
192 lb.-ft.

What is the drivetrain of Citroen C4 X (Phase I, 2022) SUV, Crossover, Fastback 2022 e 50 kWh (136 Hp)?

Front wheel drive. BEV (Electric Vehicle). One electric motor drives the front wheels.

What is the length of 2022 Citroen C4 X SUV, Crossover, Fastback?

4600 mm
181.1 in.

What is the width of 2022 Citroen C4 X SUV, Crossover, Fastback?

1800 mm
70.87 in.

What is the kerb weight of 2022 Citroen C4 X (Phase I, 2022) e 50 kWh (136 Hp)?

1584-1659 kg
3492 - 3657 lbs.

What is the maximum permissible mass of 2022 Citroen C4 X (Phase I, 2022) e 50 kWh (136 Hp)?

2040 kg
4497 lbs.

What is the trunk (boot) capacity of 2022 Citroen C4 X SUV, Crossover, Fastback?

510 - 1360 l
18 - 48 cu. ft.

What are the number of gears and the gearbox type of 2022 Citroen C4 X (Phase I, 2022) e 50 kWh (136 Hp)?

1, automatic transmission

Citroen
- Citroen C4 X
  - C4 X (Phase I, 2022)

Compare

General information

Brand

Citroen

Model

C4 X

Generation

C4 X (Phase I, 2022)

Modification (Engine)

e 50 kWh (136 Hp)

Start of production

October, 2022

End of production

October, 2024

Powertrain Architecture

BEV (Electric Vehicle)

Body type

SUV, Crossover, Fastback

Seats

Doors

Looking for Citroen C4 X on the used-car market?

Check its history →

Performance specs

Fuel Type

Electricity

Maximum speed

150 km/h 93 mph

Weight-to-power ratio

11.6 kg/Hp, 85.9 Hp/tonne

Weight-to-torque ratio

6.1 kg/Nm, 164.1 Nm/tonne

Electric and hybrid car specs

Gross battery capacity

50 kWh

Battery technology

Lithium-ion (Li-Ion)

Battery location

Below the floor

Electric range (WLTP)

353-360 km 219 - 224 mi

Average Energy consumption (WLTP)

15-15.5 kWh/100 km 24.14 - 24.94 kWh/100 mi
140 - 135 MPGe
6.7 - 6.5 km/kWh
4.1 - 4 mi/kWh

Charging ports

Charging times

Electric motor 1

Electric motor power

136 Hp

Electric motor Torque

260 Nm 192 lb.-ft.

Electric motor model/code

ZK01

Electric motor location

Front axle, Transverse

Electric motor type

Synchronous

System power

136 Hp

System torque

260 Nm 192 lb.-ft.

Volume and weights

Kerb Weight

1584-1659 kg 3492 - 3657 lbs.

Max. weight

2040 kg 4497 lbs.

Max load

381-456 kg 840 - 1005 lbs.

Trunk (boot) space - minimum

510 l 18 cu. ft.

Trunk (boot) space - maximum

1360 l 48 cu. ft.

Dimensions

Length

4600 mm 181.1 in.

Width

1800 mm 70.87 in.

Width with mirrors folded

1834 mm 72.2 in.

Width including mirrors

2032 mm 80 in.

Height

1515-1525 mm 59.65 - 60.04 in.

Wheelbase

2670 mm 105.12 in.

Front track

1545-1560 mm 60.83 - 61.42 in.

Rear (Back) track

1545-1560 mm 60.83 - 61.42 in.

Front overhang

880 mm 34.65 in.

Rear overhang

1050 mm 41.34 in.

Ride height (ground clearance)

156 mm 6.14 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

One electric motor drives the front wheels.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

1 gears, automatic transmission

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

195/60 R18 96H

Wheel rim size

Specs of Citroen C4 X (Phase I, 2022) e 50 kWh (136 Hp) /2022, 2023, 2024/
