Specs of Chrysler Voyager VI 3.6 Pentastar V6 (291 Hp) TorqueFlite /2024, 2025, 2026/

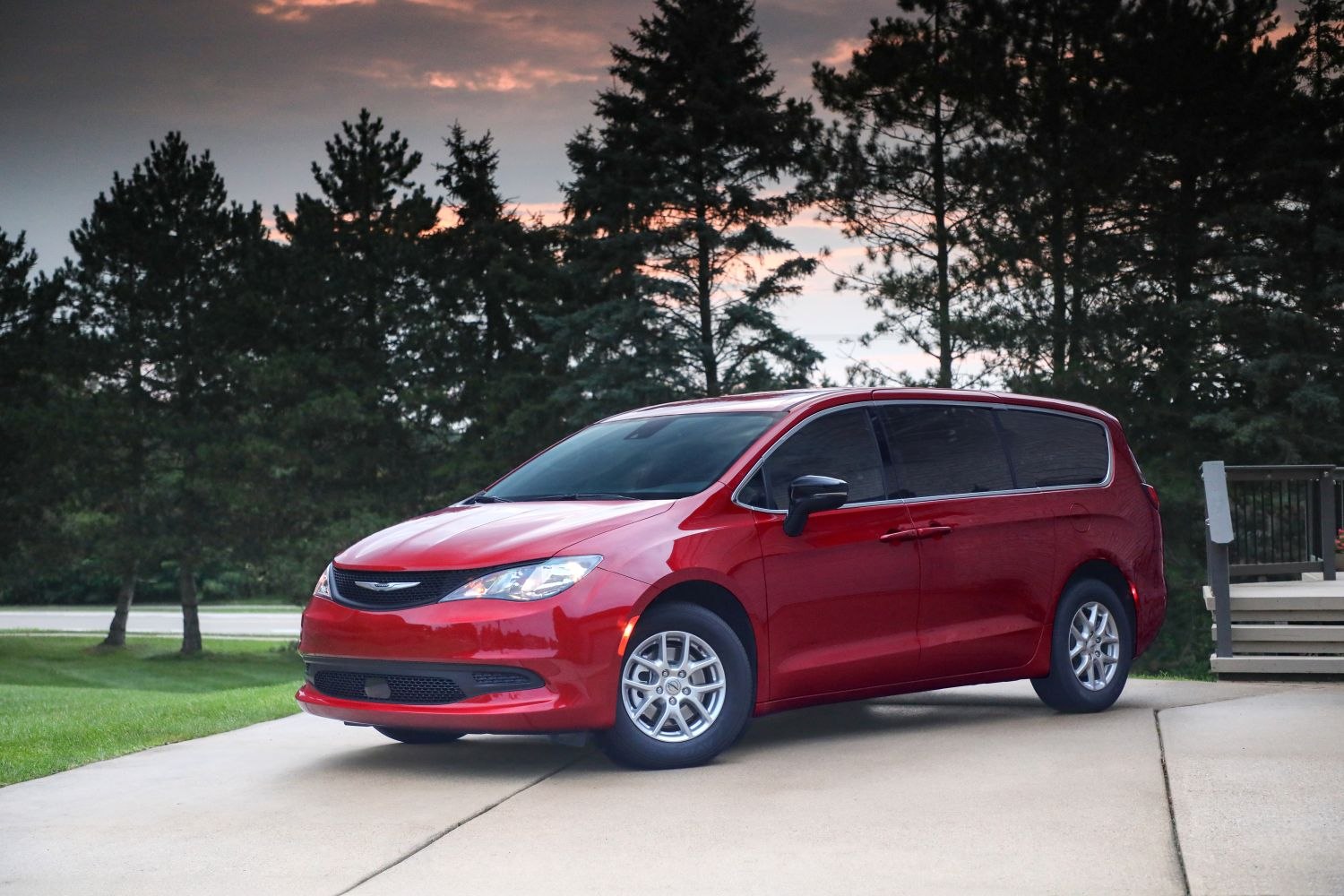

2020 Chrysler Voyager VI - Photo 1
Chrysler Voyager VI - Photo 2Chrysler Voyager VI - Photo 3Chrysler Voyager VI - Photo 4Chrysler Voyager VI - Photo 5Chrysler Voyager VI - Photo 6Chrysler Voyager VI - Photo 7Chrysler Voyager VI - Photo 8

Key specs

Chrysler Voyager VI 3.6 Pentastar V6 (291 Hp) TorqueFlite /Minivan 2024 - /

What is the body type of Chrysler Voyager VI?
Minivan, 5 Doors, 7 Seats
What is the fuel consumption and economy of Chrysler Voyager VI 3.6 Pentastar V6 (291 Hp) TorqueFlite?
10.7 l/100 km
22 US mpg
26.4 UK mpg
9.3 km/l
What is the power output of Chrysler Voyager Minivan 2024 3.6 Pentastar V6 (291 Hp) TorqueFlite?
291 Hp, 355 Nm
262 lb.-ft.
What is the engine displacement of Chrysler Voyager Minivan 2024 3.6 Pentastar V6 (291 Hp) TorqueFlite?
3.6 l
3605 cm3
219.99 cu. in.
What is the number of cylinders in 2024 Chrysler 3.6 Pentastar V6 (291 Hp) TorqueFlite?
6, V-engine
What is the drivetrain of Chrysler Voyager VI Minivan 2024 3.6 Pentastar V6 (291 Hp) TorqueFlite?
Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.
What is the length of 2024 Chrysler Voyager Minivan?
5176 mm
203.78 in.
What is the width of 2024 Chrysler Voyager Minivan?
2022 mm
79.61 in.
What is the kerb weight of 2024 Chrysler Voyager VI 3.6 Pentastar V6 (291 Hp) TorqueFlite?
1964 kg
4330 lbs.
What is the maximum permissible mass of 2024 Chrysler Voyager VI 3.6 Pentastar V6 (291 Hp) TorqueFlite?
2747 kg
6056 lbs.
What is the trunk (boot) capacity of 2024 Chrysler Voyager Minivan?
915 - 3979 l
32.3 - 140.5 cu. ft.
What is the number of gears in What is the gearbox type of 2024 Chrysler Voyager VI 3.6 Pentastar V6 (291 Hp) TorqueFlite?
9, automatic transmission TorqueFlite
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
Chrysler
Model
Voyager
Generation
Voyager VI
Modification (Engine)
3.6 Pentastar V6 (291 Hp) TorqueFlite
Start of production
September, 2024 year
Powertrain Architecture
Internal Combustion engine
Body type
Minivan
Seats
7
Doors
5
Looking for Chrysler Voyager on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - urban (EPA)
12.4 l/100 km 19 US mpg
22.8 UK mpg
8.1 km/l
Fuel consumption (economy) - extra urban (EPA)
8.4 l/100 km 28 US mpg
33.6 UK mpg
11.9 km/l
Fuel consumption (economy) - combined (EPA)
10.7 l/100 km 22 US mpg
26.4 UK mpg
9.3 km/l
Fuel Type
Petrol (Gasoline)
Weight-to-power ratio
6.7 kg/Hp, 148.2 Hp/tonne
Weight-to-torque ratio
5.5 kg/Nm, 180.8 Nm/tonne

Engine specs

Power
291 Hp @ 6400 rpm.
Power per litre
80.7 Hp/l
Torque
355 Nm @ 4000 rpm. 262 lb.-ft. @ 4000 rpm.
Maximum engine speed
6400 rpm.
Engine layout
Front, Longitudinal
Engine Model/Code
Pentastar / ERC
Engine displacement
3605 cm3 219.99 cu. in.
Number of cylinders
6
Engine configuration
V-engine
Cylinder Bore
96 mm 3.78 in.
Piston Stroke
83 mm 3.27 in.
Compression ratio
11.3:1
Number of valves per cylinder
4
Fuel injection system
Multi-port manifold injection
Engine aspiration
Naturally aspirated engine
Valvetrain
DOHC, CVVT
Engine oil capacity
4.7 l 4.97 US qt | 4.14 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
12.4 l 13.1 US qt | 10.91 UK qt
Engine systems
Start & Stop System

Volume and weights

Kerb Weight
1964 kg 4330 lbs.
Max. weight
2747 kg 6056 lbs.
Max load
783 kg 1726 lbs.
Trunk (boot) space - minimum
915 l 32.3 cu. ft.
Trunk (boot) space - maximum
3979 l 140.5 cu. ft.
Fuel tank capacity
72 l 19.02 US gal | 15.84 UK gal

Dimensions

Length
5176 mm 203.78 in.
Width
2022 mm 79.61 in.
Width including mirrors
2297 mm 90.43 in.
Height
1777 mm 69.96 in.
Wheelbase
3089 mm 121.61 in.
Front track
1735 mm 68.31 in.
Rear (Back) track
1736 mm 68.35 in.
Front overhang
960 mm 37.8 in.
Rear overhang
1127 mm 44.37 in.
Ride height (ground clearance)
131 mm 5.16 in.
Drag coefficient (Cd)
0.300
Minimum turning circle (turning diameter)
12.1 m 39.7 ft.
Approach angle
14°
Departure angle
18.7°
Ramp-over (brakeover) angle
12.5°

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel
Front wheel drive
Number of gears and type of gearbox
9 gears, automatic transmission TorqueFlite
Front suspension
Suspension strut, Independent, McPherson type, Anti-roll bar
Rear suspension
Suspension strut, Coil spring, Torsion bar
Front brakes
Ventilated discs, 330x28 mm
Rear brakes
Disc, 320x12 mm
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Electric Steering
Tires size
235/65 R17
Wheel rims size
7J x 17
