2012 Chevrolet Trailblazer II 3.6 V6 (236 Hp) Automatic

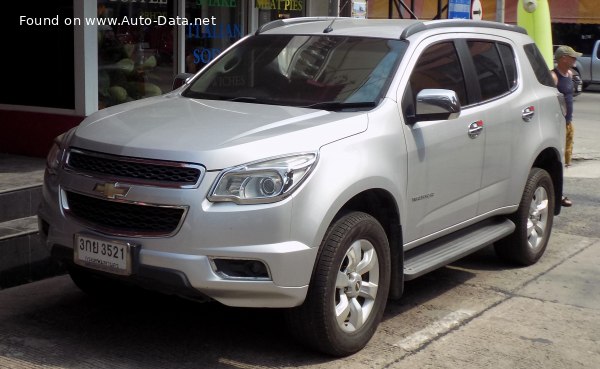

2012 Chevrolet Trailblazer II - Photo 1
Chevrolet Trailblazer II - Photo 2

Key specs

Chevrolet Trailblazer SUV 2012, 2013, 2014, 2015, 2016

What is the body type, Chevrolet Trailblazer II?SUV, 5 Doors, 7 Seats
What is the fuel economy, Chevrolet Trailblazer II 3.6 V6 (236 Hp) Automatic?12.2 l/100 km
19.28 US mpg
23.15 UK mpg
8.2 km/l
How much power, Chevrolet Trailblazer SUV 2012 3.6 V6 (236 Hp) Automatic?236 Hp, 329 Nm
242.66 lb.-ft.
What is the engine size, Chevrolet Trailblazer SUV 2012 3.6 V6 (236 Hp) Automatic?3.6 l
3564 cm3
217.49 cu. in.
How many cylinders, 2012 Chevrolet 3.6 V6 (236 Hp) Automatic?6, V-engine
What is the drivetrain, Chevrolet Trailblazer II SUV 2012 3.6 V6 (236 Hp) Automatic?Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
How long is this vehicle, 2012 Chevrolet Trailblazer SUV?4878 mm
192.05 in.
How wide is the vehicle, 2012 Chevrolet Trailblazer SUV?1902 mm
74.88 in.
What is the curb weight, 2012 Chevrolet Trailblazer II 3.6 V6 (236 Hp) Automatic?2583 kg
5694.54 lbs.
How much trunk (boot) space, 2012 Chevrolet Trailblazer SUV?235 - 1830 l
8.3 - 64.63 cu. ft.
How many gears, What type is the gearbox, 2012 Chevrolet Trailblazer II 3.6 V6 (236 Hp) Automatic?6, automatic transmission

Chevrolet Trailblazer II 3.6 V6 (236 Hp) Automatic 2012, 2013, 2014, 2015, 2016 Specs

General information
BrandChevrolet
Model Trailblazer
Generation Trailblazer II
Modification (Engine) 3.6 V6 (236 Hp) Automatic
Start of production 2012 year
End of production 2016 year
Powertrain Architecture Internal Combustion engine
Body typeSUV
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) - combined (EPA) 12.2 l/100 km 19.28 US mpg
23.15 UK mpg
8.2 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 10.9 kg/Hp, 91.4 Hp/tonne
Weight-to-torque ratio 7.9 kg/Nm, 127.4 Nm/tonne
Engine specs
Power 236 Hp @ 6500 rpm.
Power per litre 66.2 Hp/l
Torque 329 Nm @ 2800 rpm. 242.66 lb.-ft. @ 2800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code LFX
Engine displacement 3564 cm3 217.49 cu. in.
Number of cylinders 6
Engine configuration V-engine
Compression ratio 10.2
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VVT
Space, Volume and weights
Kerb Weight 2583 kg 5694.54 lbs.
Trunk (boot) space - minimum 235 l 8.3 cu. ft.
Trunk (boot) space - maximum 1830 l 64.63 cu. ft.
Fuel tank capacity 76 l 20.08 US gal | 16.72 UK gal
Permitted trailer load with brakes (12%) 728 kg 1604.97 lbs.
Dimensions
Length 4878 mm 192.05 in.
Width 1902 mm 74.88 in.
Width including mirrors 2132 mm 83.94 in.
Height 1848 mm 72.76 in.
Wheelbase 2845 mm 112.01 in.
Front track 1570 mm 61.81 in.
Rear (Back) track 1588 mm 62.52 in.
Front overhang 948 mm 37.32 in.
Rear overhang 1085 mm 42.72 in.
Ride height (ground clearance) 239-252 mm 9.41 - 9.92 in.
Approach angle 31-32°
Departure angle 22°
Ramp-over (brakeover) angle 22°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakesVentilated discs
Rear brakesDisc
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 245/70 R16; 265/60 R18
Wheel rims size6.5J x 16; 7.5J x 18
