Specs of Chevrolet Silverado 3500 HD III (K2XX) Double Cab Long Box 6.0 V8 (360 Hp) 4WD DRW Automatic /2015, 2016, 2017, 2018, 2019/

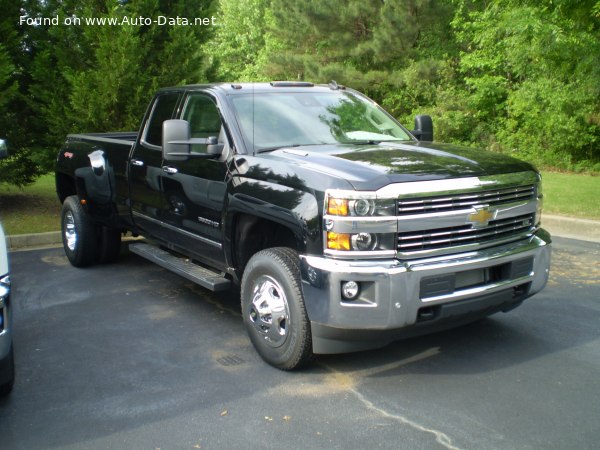

2015 Chevrolet Silverado 3500 HD III (K2XX) Double Cab Long Box - Photo 1
Chevrolet Silverado 3500 HD III (K2XX) Double Cab Long Box - Photo 2

Key specs:
Chevrolet Silverado 3500 HD III (K2XX) Double Cab Long Box 6.0 V8 (360 Hp) 4WD DRW Automatic
/Pick-up 2015 - 2019/

What is the body type of Chevrolet Silverado 3500 HD III (K2XX) Double Cab Long Box?Pick-up, 4 Doors, 5 Seats
What is the power output of Chevrolet Silverado 3500 HD Pick-up 2015 6.0 V8 (360 Hp) 4WD DRW Automatic?360 Hp, 515 Nm
379.84 lb.-ft.
What is the engine displacement of Chevrolet Silverado 3500 HD Pick-up 2015 6.0 V8 (360 Hp) 4WD DRW Automatic?6.0 l
5967 cm3
364.13 cu. in.
What is the number of cylinders in 2015 Chevrolet 6.0 V8 (360 Hp) 4WD DRW Automatic?8, V-engine
What is the drivetrain of Chevrolet Silverado 3500 HD III (K2XX) Double Cab Long Box Pick-up 2015 6.0 V8 (360 Hp) 4WD DRW Automatic?All wheel drive (4x4). Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
What is the length of 2015 Chevrolet Silverado 3500 HD Pick-up?6321 mm
248.86 in.
What is the width of 2015 Chevrolet Silverado 3500 HD Pick-up?2438 mm
95.98 in.
What is the kerb weight of 2015 Chevrolet Silverado 3500 HD III (K2XX) Double Cab Long Box 6.0 V8 (360 Hp) 4WD DRW Automatic?3195 kg
7043.77 lbs.
What is the maximum permissible mass of 2015 Chevrolet Silverado 3500 HD III (K2XX) Double Cab Long Box 6.0 V8 (360 Hp) 4WD DRW Automatic?5908 kg
13024.91 lbs.
What is the trunk (boot) capacity of 2015 Chevrolet Silverado 3500 HD Pick-up?2162 l
76.35 cu. ft.
What is the number of gears in What is the gearbox type of 2015 Chevrolet Silverado 3500 HD III (K2XX) Double Cab Long Box 6.0 V8 (360 Hp) 4WD DRW Automatic?6, automatic transmission Hydra-Matic
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

Chevrolet Silverado 3500 HD III (K2XX) Double Cab Long Box 6.0 V8 (360 Hp) 4WD DRW Automatic - Full specifications

General information

BrandChevrolet
Model Silverado 3500 HD
Generation Silverado 3500 HD III (K2XX) Double Cab Long Box
Modification (Engine) 6.0 V8 (360 Hp) 4WD DRW Automatic
Start of production 2015 year
End of production 2019 year
Powertrain Architecture Internal Combustion engine
Body typePick-up
Seats 5
Doors 4

Performance specs

Fuel Type Petrol (Gasoline)
Weight-to-power ratio 8.9 kg/Hp, 112.7 Hp/tonne
Weight-to-torque ratio 6.2 kg/Nm, 161.2 Nm/tonne

Engine specs

Power 360 Hp @ 5400 rpm.
Power per litre 60.3 Hp/l
Torque 515 Nm @ 4200 rpm. 379.84 lb.-ft. @ 4200 rpm.
Maximum engine speed 6000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Vortec L96
Engine displacement 5967 cm3 364.13 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 101.6 mm 4 in.
Piston Stroke 92 mm 3.62 in.
Compression ratio 9.6:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain OHV, VVT
Engine oil capacity 5.7 l 6.02 US qt | 5.02 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 16.1 l 17.01 US qt | 14.17 UK qt

Space, Volume and weights

Kerb Weight 3195 kg 7043.77 lbs.
Max. weight 5908 kg 13024.91 lbs.
Max load 2713 kg 5981.14 lbs.
Trunk (boot) space - maximum 2162 l 76.35 cu. ft.
Fuel tank capacity 136 l 35.93 US gal | 29.92 UK gal
Permitted trailer load with brakes (12%) 6169 kg 13600.32 lbs.

Dimensions

Length 6321 mm 248.86 in.
Width 2438 mm 95.98 in.
Height 1972 mm 77.64 in.
Wheelbase 4017 mm 158.15 in.
Front track 1748 mm 68.82 in.
Rear (Back) track 1906 mm 75.04 in.
Ride height (ground clearance) 215 mm 8.46 in.
Minimum turning circle (turning diameter) 16.1 m 52.82 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4x4)
Number of gears and type of gearbox 6 gears, automatic transmission Hydra-Matic
Front suspension Independent torsion bar, double wishbone
Rear suspension Rigid axle suspension, Leaf spring
Front brakesVentilated discs, 355x40 mm
Rear brakesVentilated discs, 355x40 mm
Assisting systemsABS (Anti-lock braking system)
Steering type Cone worm with recirculation balls
Tires size 235/80 R17; 265/70 R18
Wheel rims size6.5J x 17; 8J x 18
