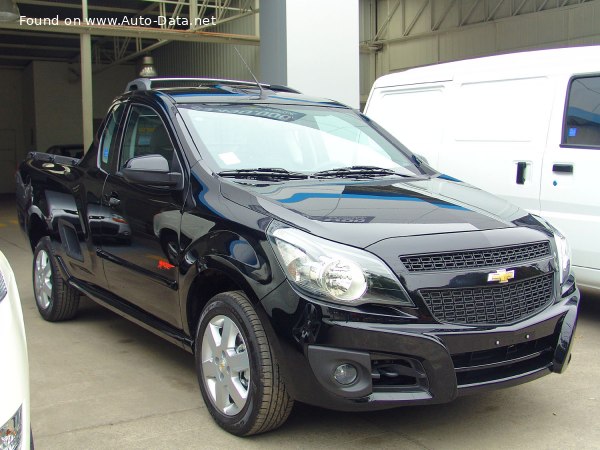

Chevrolet Montana II 1.4 (94/99 Hp) Econo.Flex | Technical specs, data, fuel consumption, Dimensions

Key specs

Chevrolet Montana II 1.4 (94/99 Hp) Econo.Flex /Pick-up 2011 - 2021/

What is the body type of Chevrolet Montana II?

Pick-up, 2 Doors, 2 Seats

What is the power output of Chevrolet Montana Pick-up 2011 1.4 (94/99 Hp) Econo.Flex?

94 Hp, 129 Nm
95 lb.-ft.

What is the engine displacement of Chevrolet Montana Pick-up 2011 1.4 (94/99 Hp) Econo.Flex?

1.4 l
1389 cm³
84.76 cu. in.

What is the number of cylinders in 2011 Chevrolet 1.4 (94/99 Hp) Econo.Flex?

4, Inline

What is the drivetrain of Chevrolet Montana II Pick-up 2011 1.4 (94/99 Hp) Econo.Flex?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2011 Chevrolet Montana Pick-up?

4514 mm
177.72 in.

What is the width of 2011 Chevrolet Montana Pick-up?

1700 mm
66.93 in.

What is the kerb weight of 2011 Chevrolet Montana II 1.4 (94/99 Hp) Econo.Flex?

1084 kg
2390 lbs.

What is the maximum permissible mass of 2011 Chevrolet Montana II 1.4 (94/99 Hp) Econo.Flex?

1857 kg
4094 lbs.

What are the number of gears and the gearbox type of 2011 Chevrolet Montana II 1.4 (94/99 Hp) Econo.Flex?

5, manual transmission

Chevrolet
- Chevrolet Montana
  - Montana II
    - 1.8 (105 Hp)
    - 1.4 (94/99 Hp) Econo.Flex

Compare

General information

Brand

Chevrolet

Model

Montana

Generation

Montana II

Modification (Engine)

1.4 (94/99 Hp) Econo.Flex

Start of production

2011

End of production

2021

Powertrain Architecture

Internal Combustion engine

Body type

Pick-up

Seats

Doors

Looking for Chevrolet Montana on the used-car market?

Check its history →

Performance specs

Fuel Type

Petrol / Ethanol - E85

Weight-to-power ratio

11.5 kg/Hp, 86.7 Hp/tonne

Weight-to-torque ratio

8.4 kg/Nm, 119 Nm/tonne

Engine specs

Power

94 Hp @ 6200 rpm.

Power per litre

67.7 Hp/l

Power (Ethanol - E85)

99 Hp @ 6200 rpm.

Power per litre (Ethanol - E85)

71.3 Hp/l

Torque

129 Nm @ 3200 rpm. 95 lb.-ft. @ 3200 rpm.

Torque (Ethanol - E85)

132 Nm @ 3200 rpm.

Maximum engine speed

6300 rpm.

Engine layout

Front, Transverse

Engine displacement

1389 cm³ 84.76 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

77.6 mm 3.06 in.

Piston Stroke

73.4 mm 2.89 in.

Compression ratio

12.4:1

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Engine oil capacity

3.25 l 3.43 US qt | 2.86 UK qt

Engine oil specification

Coolant

5.5 l 5.81 US qt | 4.84 UK qt

Volume and weights

Kerb Weight

1084 kg 2390 lbs.

Max. weight

1857 kg 4094 lbs.

Max load

773 kg 1704 lbs.

Fuel tank capacity

56 l 14.79 US gal | 12.32 UK gal

Dimensions

Length

4514 mm 177.72 in.

Width

1700 mm 66.93 in.

Width including mirrors

1918 mm 75.51 in.

Height

1578-1630 mm 62.13 - 64.17 in.

Wheelbase

2669 mm 105.08 in.

Front track

1429 mm 56.26 in.

Rear (Back) track

1439 mm 56.65 in.

Front overhang

844 mm 33.23 in.

Rear overhang

1001 mm 39.41 in.

Ride height (ground clearance)

138-150 mm 5.43 - 5.91 in.

Minimum turning circle (turning diameter)

11.3 m 37.07 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Torsion bar

Front brakes

Disc

Rear brakes

Drum

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Tire size

175/70 R14; 185/65 R15; 195/55 R16

Wheel rim size

5.5J x 14; 6J x 15; 6J x 16

Specs of Chevrolet Montana II 1.4 (94/99 Hp) Econo.Flex /2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021/
