CheryChery Tiggo 2 1.5 (105 Hp)2016, 2017, 2018, 2019, 2020, 2021: specs, Fuel consumption, Dimensions

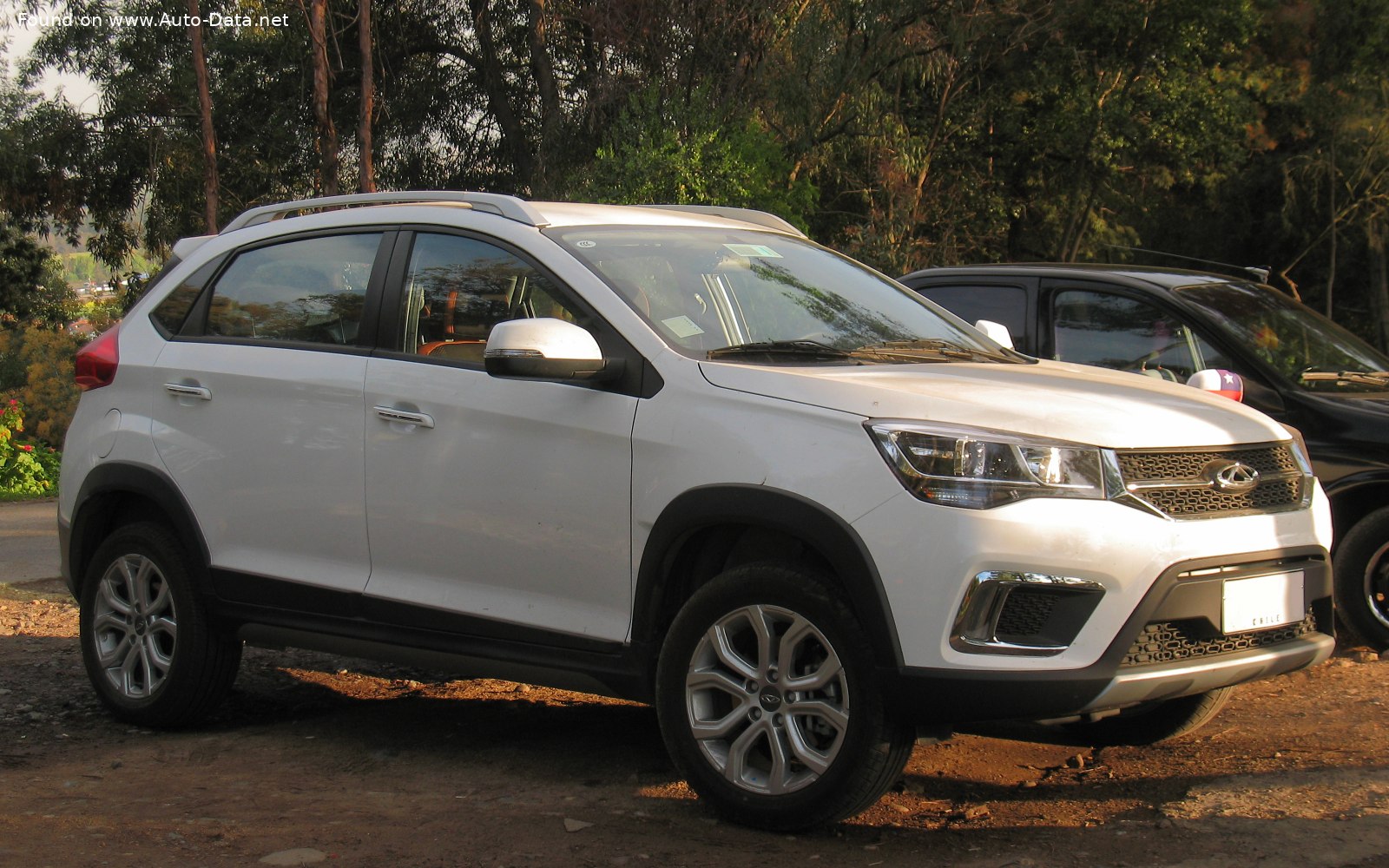

2017 Chery Tiggo 2 - Photo 1

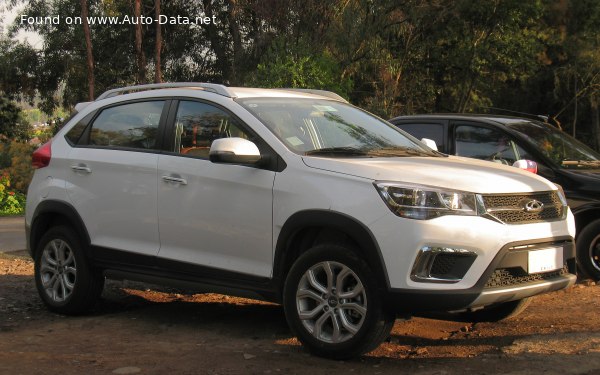

Chery Tiggo 2 - Photo 2Chery Tiggo 2 - Photo 3Chery Tiggo 2 - Photo 4

Key specs

Chery Tiggo 2 1.5 (105 Hp) /SUV 2016 - 2021/
What is the body type of Chery Tiggo 2?
SUV, 5 Doors, 5 Seats
What is the fuel consumption and economy of Chery Tiggo 2 1.5 (105 Hp)?
6.8 l/100 km
34.6 US mpg
41.5 UK mpg
14.7 km/l
How environmentally friendly is Chery Tiggo 2 1.5 (105 Hp)?
162 g/km CO2
Euro 5
How fast is 2016 Tiggo 2 1.5 (105 Hp)?
170 km/h | 106 mph
What is the power output of Chery Tiggo 2 SUV 2016 1.5 (105 Hp)?
105 Hp, 135 Nm
100 lb.-ft.
What is the engine displacement of Chery Tiggo 2 SUV 2016 1.5 (105 Hp)?
1.5 l
1497 cm3
91.35 cu. in.
What is the number of cylinders in 2016 Chery 1.5 (105 Hp)?
4, Inline
What is the drivetrain of Chery Tiggo 2 SUV 2016 1.5 (105 Hp)?
Front wheel drive. ICE. The Internal combustion engine (ICE) drives the front wheels of the vehicle.
What is the length of 2016 Chery Tiggo 2 SUV?
4200 mm
165.35 in.
What is the width of 2016 Chery Tiggo 2 SUV?
1760 mm
69.29 in.
What is the kerb weight of 2016 Chery Tiggo 2 1.5 (105 Hp)?
1215 kg
2679 lbs.
What is the maximum permissible mass of 2016 Chery Tiggo 2 1.5 (105 Hp)?
1590 kg
3505 lbs.
What is the trunk (boot) capacity of 2016 Chery Tiggo 2 SUV?
341 - 592 l
12 - 20.9 cu. ft.
What are the number of gears and the gearbox type of 2016 Chery Tiggo 2 1.5 (105 Hp)?
5, manual transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Chery Tiggo 2 1.5 (105 Hp)
Compare

General information

Brand
Chery
Model
Tiggo 2
Generation
Tiggo 2
Modification (Engine)
1.5 (105 Hp)
Start of production
2016
End of production
2021
Powertrain Architecture
Internal Combustion engine
Body type
SUV (Sport Utility Vehicle)
Seats
5
Doors
5
Looking for Chery Tiggo 2 on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - urban
9.7 l/100 km 24.2 US mpg
29.1 UK mpg
10.3 km/l
Fuel consumption (economy) - extra urban
5.1 l/100 km 46.1 US mpg
55.4 UK mpg
19.6 km/l
Fuel consumption (economy) - combined
6.8 l/100 km 34.6 US mpg
41.5 UK mpg
14.7 km/l
CO2 emissions
162 g/km
Fuel Type
Petrol (Gasoline)
Maximum speed
170 km/h 106 mph
Emission standard
Euro 5
Weight-to-power ratio
11.6 kg/Hp, 86.4 Hp/tonne
Weight-to-torque ratio
9 kg/Nm, 111.1 Nm/tonne

Engine specs

Power
105 Hp @ 6000 rpm.
Power per litre
70.1 Hp/l
Torque
135 Nm @ 2750 rpm. 100 lb.-ft. @ 2750 rpm.
Engine layout
Front, Transverse
Engine Model/Code
SQRD4G15B
Engine displacement
1497 cm3 91.35 cu. in.
Number of cylinders
4
Engine configuration
Inline
Cylinder Bore
77.4 mm 3.05 in.
Piston Stroke
79.52 mm 3.13 in.
Compression ratio
11.4:1
Number of valves per cylinder
4
Fuel injection system
Multi-port manifold injection
Engine aspiration
Naturally aspirated engine
Valvetrain
SOHC
Engine oil capacity
4 l 4.23 US qt | 3.52 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
7.8 l 8.24 US qt | 6.86 UK qt

Volume and weights

Kerb Weight
1215 kg 2679 lbs.
Max. weight
1590 kg 3505 lbs.
Max load
375 kg 827 lbs.
Trunk (boot) space - minimum
341 l 12 cu. ft.
Trunk (boot) space - maximum
592 l 20.9 cu. ft.
Fuel tank capacity
50 l 13.21 US gal | 11 UK gal

Dimensions

Length
4200 mm 165.35 in.
Width
1760 mm 69.29 in.
Height
1570 mm 61.81 in.
Wheelbase
2555 mm 100.59 in.
Front track
1495 mm 58.86 in.
Rear (Back) track
1484 mm 58.43 in.
Front overhang
854 mm 33.62 in.
Rear overhang
791 mm 31.14 in.
Ride height (ground clearance)
186 mm 7.32 in.
Minimum turning circle (turning diameter)
10.5 m 34.45 ft.
Approach angle
24°
Departure angle
32°
Climb angle
21.8°

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel
Front wheel drive
Number of gears and type of gearbox
5 gears, manual transmission
Front suspension
Independent, McPherson type with coil spring and anti-roll bar
Rear suspension
Semi-independent, coil spring, Torsion bar
Front brakes
Ventilated discs
Rear brakes
Disc
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Hydraulic Steering
Tire size
195/65 R15; 205/55 R16; 205/50 R17
Wheel rim size
6J x 15; 6.5J x 16; 6.5J x 17
