Cadillac Eldorado XI (facelift 1988) 4.5 V8 (155 Hp) Automatic | Technical specs, data, fuel consumption, Dimensions

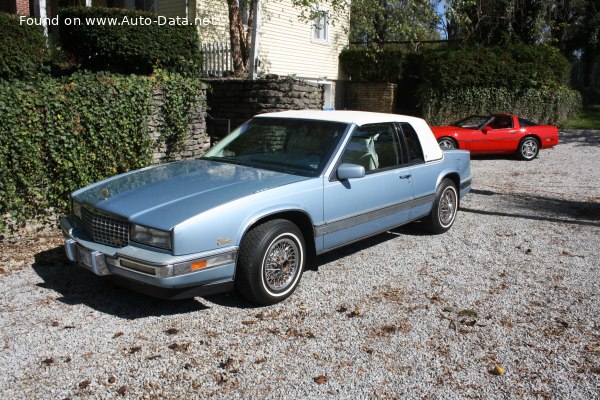

1988 Cadillac Eldorado XI (facelift 1988) - Photo 1

Key specs

Cadillac Eldorado XI (facelift 1988) 4.5 V8 (155 Hp) Automatic /Coupe 1988 - 1990/

What is the body type of Cadillac Eldorado XI (facelift 1988)?

Coupe, 2 Doors, 5 Seats

What is the power output of Cadillac Eldorado Coupe 1988 4.5 V8 (155 Hp) Automatic?

155 Hp, 325 Nm
240 lb.-ft.

What is the engine displacement of Cadillac Eldorado Coupe 1988 4.5 V8 (155 Hp) Automatic?

4.5 l
4474 cm³
273.02 cu. in.

What is the number of cylinders in 1988 Cadillac 4.5 V8 (155 Hp) Automatic?

8, V-engine

What is the drivetrain of Cadillac Eldorado XI (facelift 1988) Coupe 1988 4.5 V8 (155 Hp) Automatic?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 1988 Cadillac Eldorado Coupe?

4856 mm
191.18 in.

What is the width of 1988 Cadillac Eldorado Coupe?

1811 mm
71.3 in.

What is the kerb weight of 1988 Cadillac Eldorado XI (facelift 1988) 4.5 V8 (155 Hp) Automatic?

1541 kg
3397 lbs.

What is the number of gears in 1988 Cadillac Eldorado XI (facelift 1988) 4.5 V8 (155 Hp) Automatic?

4, automatic transmission

Cadillac
- Cadillac Eldorado
  - Eldorado XI (facelift 1988)
    - 4.5 V8 (155 Hp) Automatic

Compare

General information

Brand

Cadillac

Model

Eldorado

Generation

Eldorado XI (facelift 1988)

Modification (Engine)

4.5 V8 (155 Hp) Automatic

Start of production

1988 year

End of production

1990 year

Powertrain Architecture

Internal Combustion engine

Body type

Coupe

Seats

Doors

Looking for Cadillac Eldorado on the used-car market?

Check its history →

Performance specs

Fuel Type

Petrol (Gasoline)

Weight-to-power ratio

9.9 kg/Hp, 100.6 Hp/tonne

Weight-to-torque ratio

4.7 kg/Nm, 210.9 Nm/tonne

Engine specs

Power

155 Hp @ 4000 rpm.

Power per litre

34.6 Hp/l

Torque

325 Nm @ 2800 rpm. 240 lb.-ft. @ 2800 rpm.

Engine layout

Front, Transverse

Engine displacement

4474 cm³ 273.02 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

92 mm 3.62 in.

Piston Stroke

84 mm 3.31 in.

Compression ratio

9.5:1

Number of valves per cylinder

Fuel injection system

Single-point injection

Engine aspiration

Naturally aspirated engine

Valvetrain

OHV

Engine oil capacity

5.2 l 5.49 US qt | 4.58 UK qt

Engine oil specification

Coolant

11.5 l 12.15 US qt | 10.12 UK qt

Volume and weights

Kerb Weight

1541 kg 3397 lbs.

Fuel tank capacity

70.7 l 18.68 US gal | 15.55 UK gal

Dimensions

Length

4856 mm 191.18 in.

Width

1811 mm 71.3 in.

Height

1365 mm 53.74 in.

Wheelbase

2743 mm 107.99 in.

Front track

1522 mm 59.92 in.

Rear (Back) track

1522 mm 59.92 in.

Minimum turning circle (turning diameter)

12.8 m 41.99 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

4 gears, automatic transmission

Front suspension

Independent, McPherson type, Anti-roll bar

Rear suspension

Leaf spring

Front brakes

Ventilated discs

Rear brakes

Ventilated discs

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tires size

205/75 R14; 215/65 R15

Wheel rims size

5.5J x 14; 6J x 15

Specs of Cadillac Eldorado XI (facelift 1988) 4.5 V8 (155 Hp) Automatic /1988, 1989, 1990/
