Cadillac CTS I 2.6i V6 24V L (181 Hp) Automatic | Technical specs, data, fuel consumption, Dimensions

Key specs

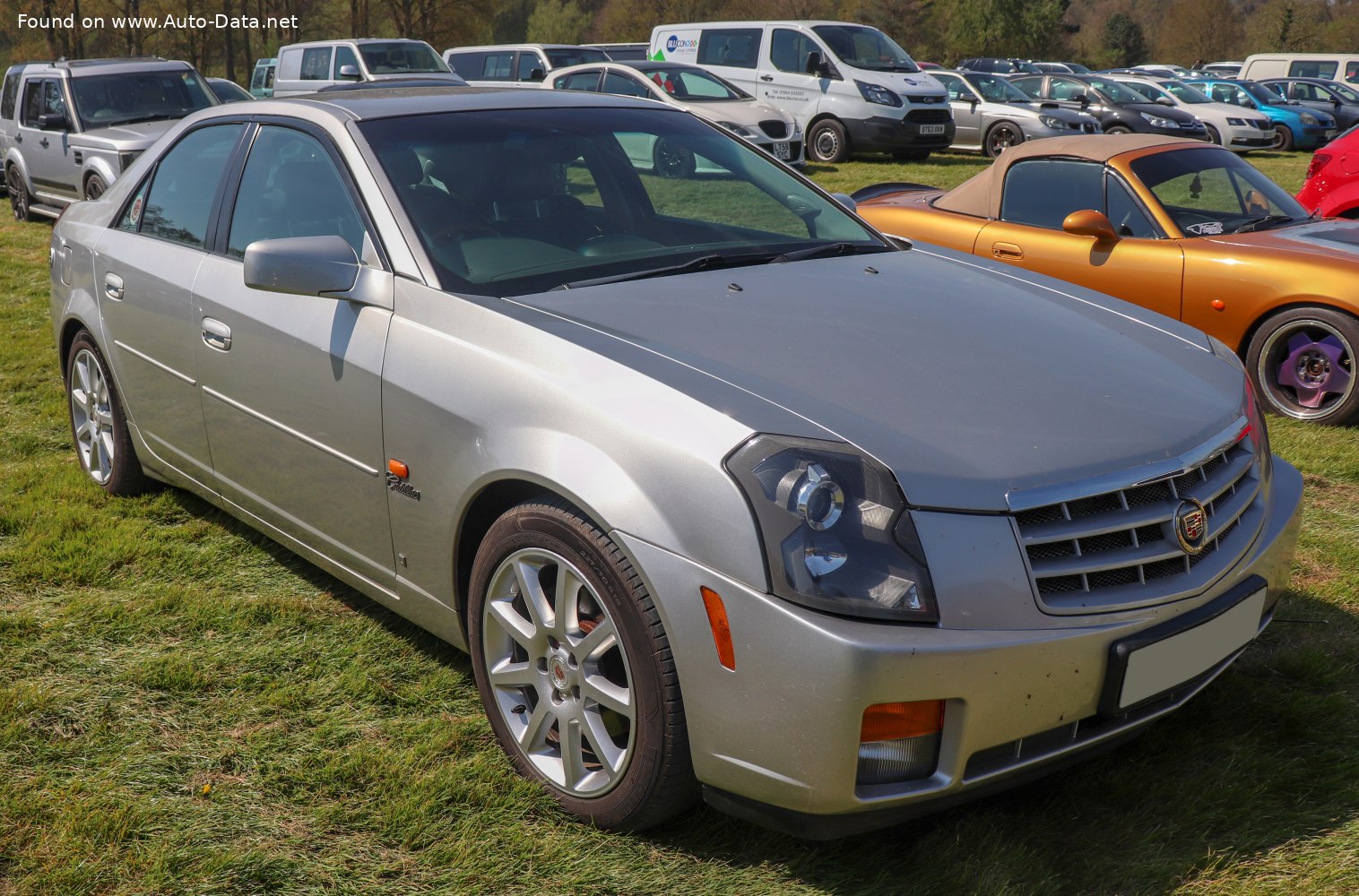

Cadillac CTS I 2.6i V6 24V L (181 Hp) Automatic /Sedan 2003 - 2007/

What is the body type of Cadillac CTS I?

Sedan, 4 Doors, 5 Seats

What is the fuel consumption and economy of Cadillac CTS I 2.6i V6 24V L (181 Hp) Automatic?

10.7 l/100 km
22 US mpg
26.4 UK mpg
9.3 km/l

How fast is 2003 CTS I 2.6i V6 24V L (181 Hp) Automatic?

206 km/h | 128 mph
0-100 km/h: 9.7 sec
0-60 mph: 9.2 sec

What is the power output of Cadillac CTS Sedan 2003 2.6i V6 24V L (181 Hp) Automatic?

181 Hp, 245 Nm
181 lb.-ft.

What is the engine displacement of Cadillac CTS Sedan 2003 2.6i V6 24V L (181 Hp) Automatic?

2.6 l
2597 cm³
158.48 cu. in.

What is the number of cylinders in 2003 Cadillac 2.6i V6 24V L (181 Hp) Automatic?

6, V-engine

What is the drivetrain of Cadillac CTS I Sedan 2003 2.6i V6 24V L (181 Hp) Automatic?

Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 2003 Cadillac CTS Sedan?

4828 mm
190.08 in.

What is the width of 2003 Cadillac CTS Sedan?

1795 mm
70.67 in.

What is the kerb weight of 2003 Cadillac CTS I 2.6i V6 24V L (181 Hp) Automatic?

1625 kg
3583 lbs.

What is the maximum permissible mass of 2003 Cadillac CTS I 2.6i V6 24V L (181 Hp) Automatic?

2125 kg
4685 lbs.

What is the trunk (boot) capacity of 2003 Cadillac CTS Sedan?

360 - 430 l
12.7 - 15.2 cu. ft.

What are the number of gears and the gearbox type of 2003 Cadillac CTS I 2.6i V6 24V L (181 Hp) Automatic?

5, automatic transmission

Cadillac
- Cadillac CTS
  - CTS I
    - V 6.0 i V8 (405 Hp)
    - V 5.7 i V8 (405 Hp)
    - 3.6i V6 24V (258 Hp) Automatic
    - 3.6i V6 24V (258 Hp)
    - 3.2i V6 24V (223 Hp) Automatic
    - 3.2i V6 24V (223 Hp)
    - 2.8i V6 24V (215 Hp) Automatic
    - 2.8i V6 24V (215 Hp)
    - 2.6i V6 24V L (181 Hp) Automatic
    - 2.6i V6 24V L (181 Hp)

Compare

General information

Brand

Cadillac

Model

CTS

Generation

CTS I

Modification (Engine)

2.6i V6 24V L (181 Hp) Automatic

Start of production

2003

End of production

2007

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Seats

Doors

Looking for Cadillac CTS on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

14.4 l/100 km 16.3 US mpg
19.6 UK mpg
6.9 km/l

Fuel consumption (economy) - extra urban

8.6 l/100 km 27.4 US mpg
32.8 UK mpg
11.6 km/l

Fuel consumption (economy) - combined

10.7 l/100 km 22 US mpg
26.4 UK mpg
9.3 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

9.7 sec

Acceleration 0 - 62 mph

9.7 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

9.2 sec

Maximum speed

206 km/h 128 mph

Weight-to-power ratio

9 kg/Hp, 111.4 Hp/tonne

Weight-to-torque ratio

6.6 kg/Nm, 150.8 Nm/tonne

Engine specs

Power

181 Hp @ 6000 rpm.

Power per litre

69.7 Hp/l

Torque

245 Nm @ 3400 rpm. 181 lb.-ft. @ 3400 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

LY9

Engine displacement

2597 cm³ 158.48 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

83.2 mm 3.28 in.

Piston Stroke

79.6 mm 3.13 in.

Compression ratio

10:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC

Engine oil specification

Volume and weights

Kerb Weight

1625 kg 3583 lbs.

Max. weight

2125 kg 4685 lbs.

Max load

500 kg 1102 lbs.

Trunk (boot) space - minimum

360 l 12.7 cu. ft.

Trunk (boot) space - maximum

430 l 15.2 cu. ft.

Fuel tank capacity

66 l 17.44 US gal | 14.52 UK gal

Dimensions

Length

4828 mm 190.08 in.

Width

1795 mm 70.67 in.

Height

1441 mm 56.73 in.

Wheelbase

2880 mm 113.39 in.

Front track

1524 mm 60 in.

Rear (Back) track

1524 mm 60 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

5 gears, automatic transmission

Front suspension

Double wishbone

Rear suspension

Anti-roll bar

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

225/55 R16

Wheel rim size

7J x 16

Specs of Cadillac CTS I 2.6i V6 24V L (181 Hp) Automatic /2003, 2004, 2005, 2006, 2007/
