Home › Car catalog › BYD › Han › Han › EV 76.9 kWh (494 Hp) AWD

BYDBYD Han EV 76.9 kWh (494 Hp) AWD2020, 2021, 2022: specs, Battery, Electric range, Dimensions

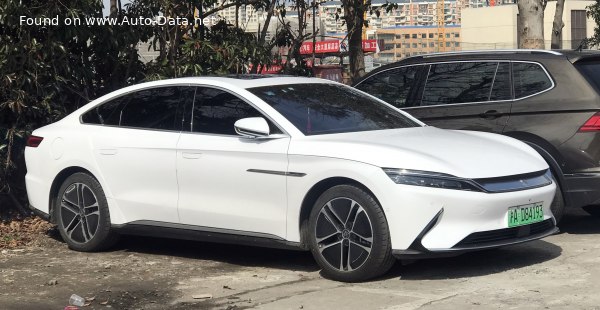

2020 BYD Han - Photo 1

Key specs

BYD Han EV 76.9 kWh (494 Hp) AWD /Sedan 2020 - 2022/
What is the body type of BYD Han?
Sedan, 4 Doors, 5 Seats
What is the all-electric range of EV 76.9 kWh (494 Hp) AWD?
550 km
342 mi
How fast is 2020 Han EV 76.9 kWh (494 Hp) AWD?
185 km/h | 115 mph
0-100 km/h: 3.9 sec
0-60 mph: 3.7 sec
What is the power output of BYD Han Sedan 2020 EV 76.9 kWh (494 Hp) AWD?
494 Hp, 680 Nm
502 lb.-ft.
What is the drivetrain of BYD Han Sedan 2020 EV 76.9 kWh (494 Hp) AWD?
All wheel drive (4x4). BEV. One electric motor drives the front wheels, one electric motor drives the rear wheels.
What is the length of 2020 BYD Han Sedan?
4980 mm
196.06 in.
What is the kerb weight of 2020 BYD Han EV 76.9 kWh (494 Hp) AWD?
2170 kg
4784 lbs.
What is the maximum permissible mass of 2020 BYD Han EV 76.9 kWh (494 Hp) AWD?
2545 kg
5611 lbs.
What is the trunk (boot) capacity of 2020 BYD Han Sedan?
410 l
14.5 cu. ft.
What are the number of gears and the gearbox type of 2020 BYD Han EV 76.9 kWh (494 Hp) AWD?
1, automatic transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
BYD Han EV 76.9 kWh (494 Hp) AWD
Compare

General information

Brand
BYD
Model
Han
Generation
Han
Modification (Engine)
EV 76.9 kWh (494 Hp) AWD
Start of production
July, 2020
End of production
April, 2022
Powertrain Architecture
BEV (Electric Vehicle)
Body type
Sedan
Seats
5
Doors
4
Looking for BYD Han on the used-car market?
Check its history →

Performance specs

Fuel Type
Electricity
Acceleration 0 - 100 km/h
3.9 sec
Acceleration 0 - 62 mph
3.9 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net)
3.7 sec
Maximum speed
185 km/h 115 mph
Weight-to-power ratio
4.4 kg/Hp, 227.6 Hp/tonne
Weight-to-torque ratio
3.2 kg/Nm, 313.4 Nm/tonne

Electric and hybrid car specs

Gross battery capacity
76.9 kWh
Battery technology
Lithium iron phosphate (LiFePO4)
Battery location
Below the floor
Electric range
550 km 342 mi
Charging ports
Log in to see.Log in to see.
Charging times
Log in to see.Log in to see.

Electric motor 1

Electric motor power
222 Hp
Electric motor Torque
330 Nm 243 lb.-ft.
Electric motor location
Front axle, Transverse

Electric motor 2

Electric motor power
272 Hp
Electric motor Torque
350 Nm 258 lb.-ft.
Electric motor location
Rear axle, Transverse
System power
494 Hp
System torque
680 Nm 502 lb.-ft.

Volume and weights

Kerb Weight
2170 kg 4784 lbs.
Max. weight
2545 kg 5611 lbs.
Max load
375 kg 827 lbs.
Trunk (boot) space - minimum
410 l 14.5 cu. ft.

Dimensions

Length
4980 mm 196.06 in.
Wheelbase
2920 mm 114.96 in.
Minimum turning circle (turning diameter)
12.3 m 40.35 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture
One electric motor drives the front wheels, one electric motor drives the rear wheels.
Drive wheel
All wheel drive (4x4)
Number of gears and type of gearbox
1 gears, automatic transmission
Front suspension
Independent, McPherson type
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated discs
Rear brakes
Disc
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Electric Steering
Tire size
245/45 R19
Wheel rim size
19
