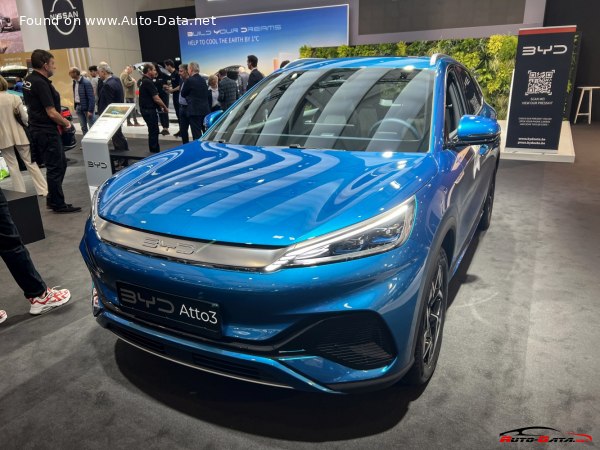

BYD Atto 3 Extended Range 60.48 kWh (204 Hp) BEV | Technical specs, data, battery, electric range, Dimensions

Key specs

BYD Atto 3 Extended Range 60.48 kWh (204 Hp) BEV /SUV 2022 - /

What is the body type of BYD Atto 3?

SUV, 5 Doors, 5 Seats

What is the all-electric range of Extended Range 60.48 kWh (204 Hp) BEV?

420 km
261 mi

How fast is 2022 Atto 3 Extended Range 60.48 kWh (204 Hp) BEV?

0-100 km/h: 7.3 sec
0-60 mph: 6.9 sec

What is the power output of BYD Atto 3 SUV 2022 Extended Range 60.48 kWh (204 Hp) BEV?

204 Hp, 310 Nm
229 lb.-ft.

What is the drivetrain of BYD Atto 3 SUV 2022 Extended Range 60.48 kWh (204 Hp) BEV?

Front wheel drive. BEV (Electric Vehicle). One electric motor drives the front wheels.

What is the length of 2022 BYD Atto 3 SUV?

4455 mm
175.39 in.

What is the width of 2022 BYD Atto 3 SUV?

1875 mm
73.82 in.

What is the kerb weight of 2022 BYD Atto 3 Extended Range 60.48 kWh (204 Hp) BEV?

1750 kg
3858 lbs.

What is the maximum permissible mass of 2022 BYD Atto 3 Extended Range 60.48 kWh (204 Hp) BEV?

2160 kg
4762 lbs.

What is the trunk (boot) capacity of 2022 BYD Atto 3 SUV?

440 - 1340 l
15.5 - 47.3 cu. ft.

What is the number of gears in What is the gearbox type of 2022 BYD Atto 3 Extended Range 60.48 kWh (204 Hp) BEV?

1, automatic transmission

BYD
- BYD Atto 3
  - Atto 3
    - Standard Range 49.92 kWh (204 Hp) BEV
    - Extended Range 60.48 kWh (204 Hp) BEV

Compare

General information

Brand

BYD

Model

Atto 3

Generation

Atto 3

Modification (Engine)

Extended Range 60.48 kWh (204 Hp) BEV

Start of production

June, 2022 year

Powertrain Architecture

BEV (Electric Vehicle)

Body type

SUV

Seats

Doors

Performance specs

Fuel Type

Electricity

Acceleration 0 - 100 km/h

7.3 sec

Acceleration 0 - 62 mph

7.3 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

6.9 sec

Weight-to-power ratio

8.6 kg/Hp, 116.6 Hp/tonne

Weight-to-torque ratio

5.6 kg/Nm, 177.1 Nm/tonne

Electric cars and hybrids specs

Gross battery capacity

60.48 kWh

Battery technology

Lithium iron phosphate (LiFePO₄)

Battery location

Below the floor

Electric range (WLTP)

420 km 261 mi

Electric range (NEDC)

480 km 298 mi

Charging ports

Electric motor 1

Electric motor power

204 Hp

Electric motor Torque

310 Nm 229 lb.-ft.

Electric motor location

Front axle, Transverse

System power

204 Hp

System torque

310 Nm 229 lb.-ft.

Volume and weights

Kerb Weight

1750 kg 3858 lbs.

Max. weight

2160 kg 4762 lbs.

Max load

410 kg 904 lbs.

Trunk (boot) space - minimum

440 l 15.5 cu. ft.

Trunk (boot) space - maximum

1340 l 47.3 cu. ft.

Dimensions

Length

4455 mm 175.39 in.

Width

1875 mm 73.82 in.

Height

1615 mm 63.58 in.

Wheelbase

2720 mm 107.09 in.

Front track

1575 mm 62.01 in.

Rear (Back) track

1580 mm 62.2 in.

Ride height (ground clearance)

150 mm 5.91 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

One electric motor drives the front wheels.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

1 gears, automatic transmission

Front suspension

Independent, McPherson type

Rear suspension

Independent multi-link suspension

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

215/55 R18

Wheel rims size

Specs of BYD Atto 3 Extended Range 60.48 kWh (204 Hp) BEV /2022, 2023, 2024, 2025, 2026/
