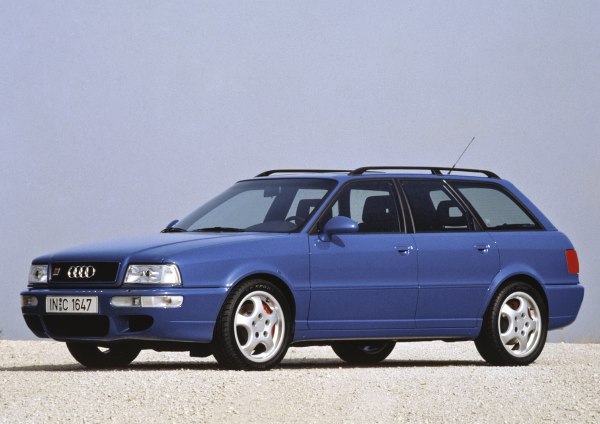

Audi RS2 Avant 2.2i (315 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

Audi RS2 Avant 2.2i (315 Hp) /Station wagon (estate) 1994 - 1996/

What is the body type of Audi RS2 Avant?

Station wagon (estate), 5 Doors, 5 Seats

How environmentally friendly is Audi RS2 2.2i (315 Hp)?

Euro 2

How fast is 1994 RS2 Avant 2.2i (315 Hp)?

262 km/h | 163 mph
0-100 km/h: 5.4 sec
0-60 mph: 5.1 sec

What is the power output of Audi RS2 Station wagon (estate) 1994 2.2i (315 Hp)?

315 Hp, 410 Nm
302 lb.-ft.

What is the engine displacement of Audi RS2 Station wagon (estate) 1994 2.2i (315 Hp)?

2.2 l
2226 cm³
135.84 cu. in.

What is the number of cylinders in 1994 Audi 2.2i (315 Hp)?

5, Inline

What is the drivetrain of Audi RS2 Avant Station wagon (estate) 1994 2.2i (315 Hp)?

All wheel drive (4x4). Internal Combustion engine. The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.

What is the length of 1994 Audi RS2 Station wagon (estate)?

4510 mm
177.56 in.

What is the width of 1994 Audi RS2 Station wagon (estate)?

1695 mm
66.73 in.

What is the kerb weight of 1994 Audi RS2 Avant 2.2i (315 Hp)?

1595 kg
3516 lbs.

What is the maximum permissible mass of 1994 Audi RS2 Avant 2.2i (315 Hp)?

2100 kg
4630 lbs.

What is the trunk (boot) capacity of 1994 Audi RS2 Station wagon (estate)?

370 - 1200 l
13.1 - 42.4 cu. ft.

What are the number of gears and the gearbox type of 1994 Audi RS2 Avant 2.2i (315 Hp)?

6, manual transmission

Audi
- Audi RS2
  - RS2 Avant
    - 2.2i (315 Hp)

Compare

General information

Brand

Audi

Model

RS2

Generation

RS2 Avant

Modification (Engine)

2.2i (315 Hp)

Start of production

March, 1994

End of production

March, 1996

Powertrain Architecture

Internal Combustion engine

Body type

Station wagon (estate)

Seats

Doors

Looking for Audi RS2 on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

14.3 l/100 km 16.4 US mpg
19.8 UK mpg
7 km/l

Fuel consumption (economy) - extra urban

7.7 l/100 km 30.5 US mpg
36.7 UK mpg
13 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

5.4 sec

Acceleration 0 - 62 mph

5.4 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

5.1 sec

Acceleration 0 - 200 km/h

22.7 sec

Maximum speed

262 km/h 163 mph

Emission standard

Euro 2

Weight-to-power ratio

5.1 kg/Hp, 197.5 Hp/tonne

Weight-to-torque ratio

3.9 kg/Nm, 257.1 Nm/tonne

Engine specs

Power

315 Hp @ 6500 rpm.

Power per litre

141.5 Hp/l

Torque

410 Nm @ 3000 rpm. 302 lb.-ft. @ 3000 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

ADU

Engine displacement

2226 cm³ 135.84 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

81 mm 3.19 in.

Piston Stroke

86.4 mm 3.4 in.

Compression ratio

9.3:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Engine oil capacity

4.5 l 4.76 US qt | 3.96 UK qt

Engine oil specification

Coolant

8.5 l 8.98 US qt | 7.48 UK qt

Volume and weights

Kerb Weight

1595 kg 3516 lbs.

Max. weight

2100 kg 4630 lbs.

Max load

505 kg 1113 lbs.

Trunk (boot) space - minimum

370 l 13.1 cu. ft.

Trunk (boot) space - maximum

1200 l 42.4 cu. ft.

Fuel tank capacity

64 l 16.91 US gal | 14.08 UK gal

Max. roof load

75 kg 165 lbs.

Permitted trailer load with brakes (12%)

1600 kg 3527 lbs.

Permitted trailer load without brakes

690 kg 1521 lbs.

Dimensions

Length

4510 mm 177.56 in.

Width

1695 mm 66.73 in.

Height

1386 mm 54.57 in.

Wheelbase

2597 mm 102.24 in.

Front track

1448 mm 57.01 in.

Rear (Back) track

1474 mm 58.03 in.

Minimum turning circle (turning diameter)

11.2 m 36.75 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

6 gears, manual transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Double wishbone, Anti-roll bar

Front brakes

Ventilated discs

Rear brakes

Ventilated discs

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

245/40 R17

Wheel rim size

7J x 17

Specs of Audi RS2 Avant 2.2i (315 Hp) /1994, 1995, 1996/
