Audi A5 Cabriolet (8F7, facelift 2011) 1.8 TFSI (177 Hp) | Technical specs, data, fuel consumption, Dimensions

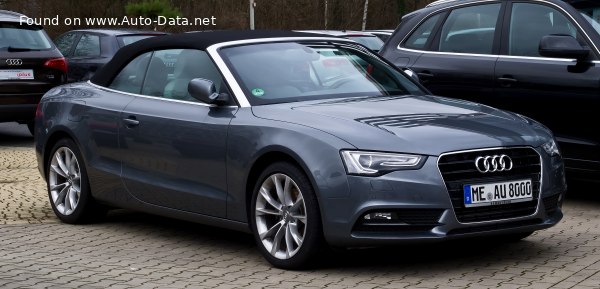

2012 Audi A5 Cabriolet (8F7, facelift 2011) - Photo 1

Key specs

Audi A5 Cabriolet (8F7, facelift 2011) 1.8 TFSI (177 Hp) /Cabriolet 2015 - 2016/

What is the body type of Audi A5 Cabriolet (8F7, facelift 2011)?

Cabriolet, 2 Doors, 4 Seats

What is the fuel consumption and economy of Audi A5 Cabriolet (8F7, facelift 2011) 1.8 TFSI (177 Hp)?

5.9-6.7 l/100 km
39.9 - 35.1 US mpg
47.9 - 42.2 UK mpg
16.9 - 14.9 km/l

How environmentally friendly is Audi A5 1.8 TFSI (177 Hp)?

137-154 g/km CO₂
Euro 6

How fast is 2015 A5 Cabriolet (8F7, facelift 2011) 1.8 TFSI (177 Hp)?

223 km/h | 139 mph
0-100 km/h: 8.7 sec
0-60 mph: 8.3 sec

What is the power output of Audi A5 Cabriolet 2015 1.8 TFSI (177 Hp)?

177 Hp, 320 Nm
236 lb.-ft.

What is the engine displacement of Audi A5 Cabriolet 2015 1.8 TFSI (177 Hp)?

1.8 l
1798 cm³
109.72 cu. in.

What is the number of cylinders in 2015 Audi 1.8 TFSI (177 Hp)?

4, Inline

What is the drivetrain of Audi A5 Cabriolet (8F7, facelift 2011) Cabriolet 2015 1.8 TFSI (177 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2015 Audi A5 Cabriolet?

4626 mm
182.13 in.

What is the width of 2015 Audi A5 Cabriolet?

1854 mm
72.99 in.

What is the kerb weight of 2015 Audi A5 Cabriolet (8F7, facelift 2011) 1.8 TFSI (177 Hp)?

1620 kg
3571 lbs.

What is the maximum permissible mass of 2015 Audi A5 Cabriolet (8F7, facelift 2011) 1.8 TFSI (177 Hp)?

2120 kg
4674 lbs.

What is the trunk (boot) capacity of 2015 Audi A5 Cabriolet?

320 - 750 l
11.3 - 26.5 cu. ft.

What is the number of gears in 2015 Audi A5 Cabriolet (8F7, facelift 2011) 1.8 TFSI (177 Hp)?

6, manual transmission

Audi
- Audi A5
  - A5 Cabriolet (8F7, facelift 2011)

Compare

General information

Brand

Audi

Model

Generation

A5 Cabriolet (8F7, facelift 2011)

Modification (Engine)

1.8 TFSI (177 Hp)

Start of production

2015 year

End of production

2016 year

Powertrain Architecture

Internal Combustion engine

Body type

Cabriolet

Seats

Doors

Looking for Audi A5 on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

7.5-8.1 l/100 km 31.4 - 29 US mpg
37.7 - 34.9 UK mpg
13.3 - 12.3 km/l

Fuel consumption (economy) - extra urban

5.1-5.8 l/100 km 46.1 - 40.6 US mpg
55.4 - 48.7 UK mpg
19.6 - 17.2 km/l

Fuel consumption (economy) - combined

5.9-6.7 l/100 km 39.9 - 35.1 US mpg
47.9 - 42.2 UK mpg
16.9 - 14.9 km/l

CO₂ emissions

137-154 g/km

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

8.7 sec

Acceleration 0 - 62 mph

8.7 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

8.3 sec

Maximum speed

223 km/h 139 mph

Emission standard

Euro 6

Weight-to-power ratio

9.2 kg/Hp, 109.3 Hp/tonne

Weight-to-torque ratio

5.1 kg/Nm, 197.5 Nm/tonne

Engine specs

Power

177 Hp @ 4000-6200 rpm.

Power per litre

98.4 Hp/l

Torque

320 Nm @ 1400-3850 rpm. 236 lb.-ft. @ 1400-3850 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

EA888 / CJEE

Engine displacement

1798 cm³ 109.72 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

82.5 mm 3.25 in.

Piston Stroke

84.1 mm 3.31 in.

Compression ratio

9.6:1

Number of valves per cylinder

Fuel injection system

Direct injection and Multi-port manifold injection

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Engine oil capacity

4.6 l 4.86 US qt | 4.05 UK qt

Engine oil specification

Engine systems

Start & Stop System

Volume and weights

Kerb Weight

1620 kg 3571 lbs.

Max. weight

2120 kg 4674 lbs.

Max load

500 kg 1102 lbs.

Trunk (boot) space - minimum

320 l 11.3 cu. ft.

Trunk (boot) space - maximum

750 l 26.5 cu. ft.

Fuel tank capacity

63 l 16.64 US gal | 13.86 UK gal

Permitted trailer load with brakes (8%)

1700 kg 3748 lbs.

Permitted trailer load with brakes (12%)

1500 kg 3307 lbs.

Permitted trailer load without brakes

750 kg 1653 lbs.

Permitted towbar download

80 kg 176 lbs.

Dimensions

Length

4626 mm 182.13 in.

Width

1854 mm 72.99 in.

Width including mirrors

2020 mm 79.53 in.

Height

1383 mm 54.45 in.

Wheelbase

2751 mm 108.31 in.

Front track

1590 mm 62.6 in.

Rear (Back) track

1577 mm 62.09 in.

Front overhang

861 mm 33.9 in.

Rear overhang

1014 mm 39.92 in.

Minimum turning circle (turning diameter)

11.4 m 37.4 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

6 gears, manual transmission

Front suspension

Independent multi-link suspension, Anti-roll bar

Rear suspension

Independent, on trapezoidal arms, Anti-roll bar

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

225/50 R17

Wheel rims size

7.5J x 17

Specs of Audi A5 Cabriolet (8F7, facelift 2011) 1.8 TFSI (177 Hp) /2015, 2016/
