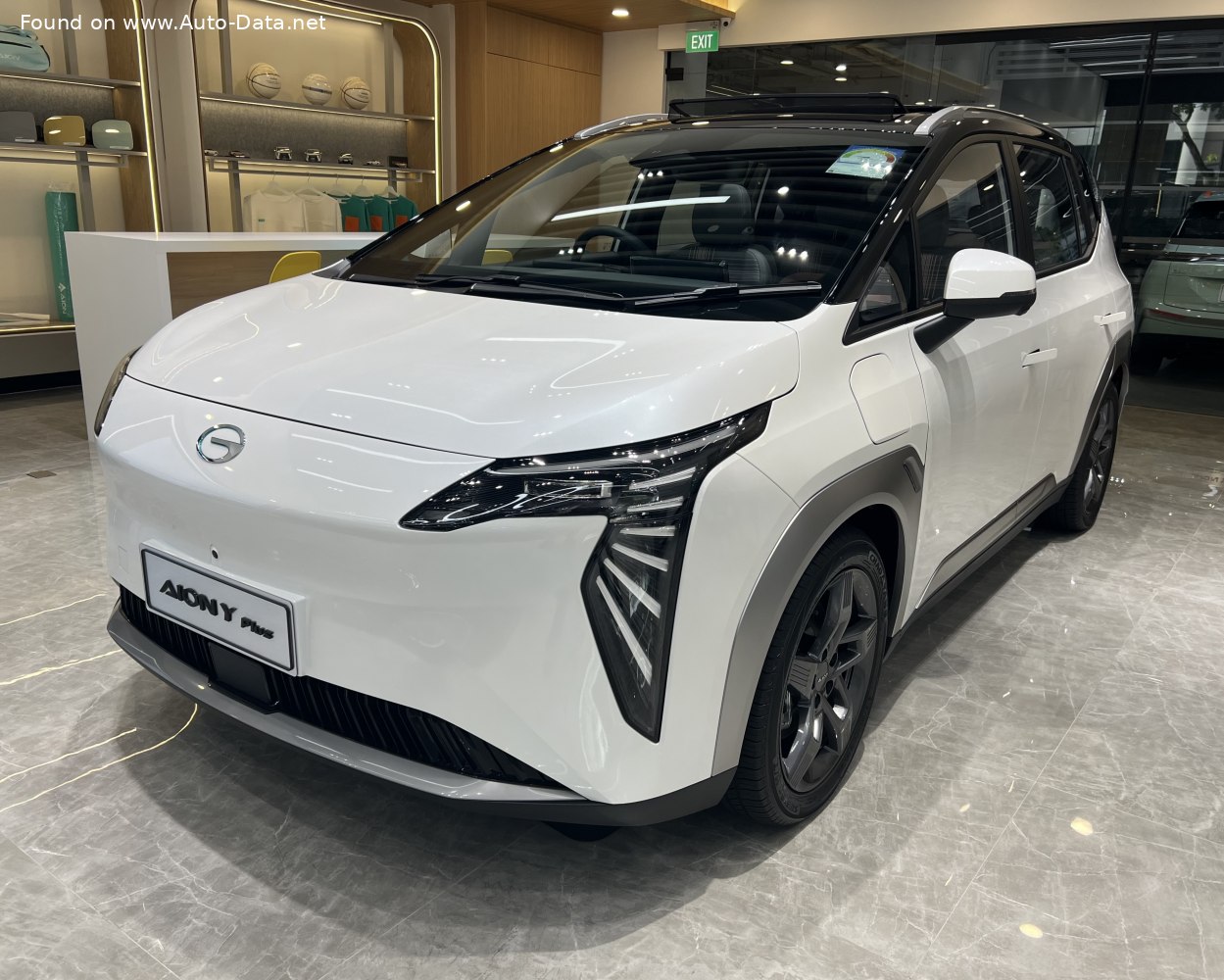

Aion Y Plus 63.2 kWh (136 Hp) | Technical Specs, Battery, Electric range, Dimensions

Key specs

Aion Y Plus 63.2 kWh (136 Hp) /SUV, Crossover 2024 - /

What is the body type of Aion Y Plus?

SUV, Crossover, 5 Doors, 5 Seats

What is the all-electric range of 63.2 kWh (136 Hp)?

430 km
267 mi

What is the electricity consumption of Aion Y Plus 63.2 kWh (136 Hp)?

16.7 kWh/100 km
26.88 kWh/100 mi
125 MPGe
6 km/kWh
3.7 mi/kWh

How fast is 2024 Y Plus 63.2 kWh (136 Hp)?

150 km/h | 93 mph
0-100 km/h: 9.8 sec
0-60 mph: 9.3 sec

What is the power output of Aion Y SUV, Crossover 2024 63.2 kWh (136 Hp)?

136 Hp, 225 Nm
166 lb.-ft.

What is the drivetrain of Aion Y Plus SUV, Crossover 2024 63.2 kWh (136 Hp)?

Front wheel drive. BEV. One electric motor drives the front wheels.

What is the length of 2024 Aion Y SUV, Crossover?

4535 mm
178.54 in.

What is the width of 2024 Aion Y SUV, Crossover?

1870 mm
73.62 in.

What is the maximum permissible mass of 2024 Aion Y Plus 63.2 kWh (136 Hp)?

2180 kg
4806 lbs.

What is the trunk (boot) capacity of 2024 Aion Y SUV, Crossover?

405 - 1200 l
14.3 - 42.4 cu. ft.

What are the number of gears and the gearbox type of 2024 Aion Y Plus 63.2 kWh (136 Hp)?

1, automatic transmission

Aion Y Plus 63.2 kWh (136 Hp)

Aion
- Aion Y
  - Y Plus

Compare

General information

Brand

Aion

Model

Generation

Y Plus

Modification (Engine)

63.2 kWh (136 Hp)

Start of production

April, 2024

Powertrain Architecture

BEV (Electric Vehicle)

Body type

SUV (Sport Utility Vehicle), Crossover

Seats

Doors

Looking for Aion Y on the used-car market?

Check its history →

Performance specs

Fuel Type

Electricity

Acceleration 0 - 100 km/h

9.8 sec

Acceleration 0 - 62 mph

9.8 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

9.3 sec

Maximum speed

150 km/h 93 mph

Electric and hybrid car specs

Gross battery capacity

63.2 kWh

Battery voltage

374.4 V

Battery technology

Lithium iron phosphate (LiFePO₄)

Battery location

Below the floor

Electric range (WLTP)

430 km 267 mi

Average Energy consumption (WLTP)

16.7 kWh/100 km 26.88 kWh/100 mi
125 MPGe
6 km/kWh
3.7 mi/kWh

Charging ports

Charging times

Electric motor 1

Electric motor power

136 Hp

Electric motor Torque

225 Nm 166 lb.-ft.

Electric motor model/code

TZ184XYA2002

Maximum electric motor speed

14000 rpm.

Electric motor location

Front axle, Transverse

Electric motor type

Synchronous

System power

136 Hp

System torque

225 Nm 166 lb.-ft.

Volume and weights

Max. weight

2180 kg 4806 lbs.

Trunk (boot) space - minimum

405 l 14.3 cu. ft.

Trunk (boot) space - maximum

1200 l 42.4 cu. ft.

Dimensions

Length

4535 mm 178.54 in.

Width

1870 mm 73.62 in.

Height

1650 mm 64.96 in.

Wheelbase

2750 mm 108.27 in.

Front track

1600 mm 62.99 in.

Rear (Back) track

1600 mm 62.99 in.

Front overhang

898 mm 35.35 in.

Rear overhang

887 mm 34.92 in.

Ride height (ground clearance)

150 mm 5.91 in.

Minimum turning circle (turning diameter)

11 m 36.09 ft.

Approach angle

18°

Departure angle

27°

Drivetrain, brakes and suspension specs

Drivetrain Architecture

One electric motor drives the front wheels.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

1 gears, automatic transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Semi-independent, coil spring, Torsion bar

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

215/55 R17

Wheel rim size
