AionAion LX Plus 93.3 kWh (490 Hp) 4WD2022, 2023, 2024, 2025, 2026: specs, Battery, Electric range, Dimensions

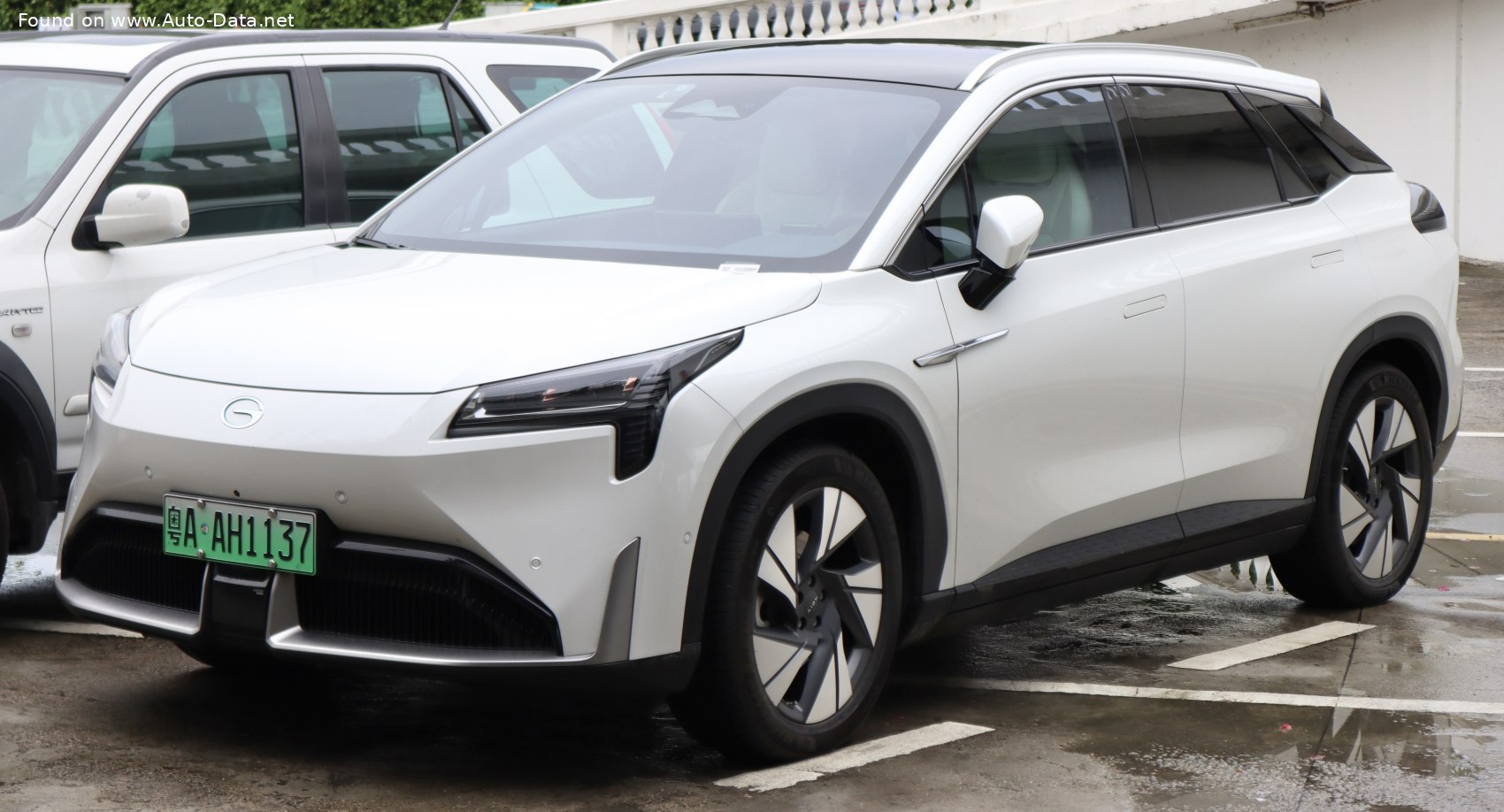

2022 Aion LX Plus - Photo 1
Aion LX Plus - Photo 2Aion LX Plus - Photo 3Aion LX Plus - Photo 4Aion LX Plus - Photo 5Aion LX Plus - Photo 6Aion LX Plus - Photo 7Aion LX Plus - Photo 8Aion LX Plus - Photo 9Aion LX Plus - Photo 10

Key specs

Aion LX Plus 93.3 kWh (490 Hp) 4WD /SUV 2022 - /
What is the body type of Aion LX Plus?
SUV, 5 Doors, 5 Seats
What is the all-electric range of 93.3 kWh (490 Hp) 4WD?
600 km
373 mi
What is the electricity consumption of Aion LX Plus 93.3 kWh (490 Hp) 4WD?
16 kWh/100 km
25.75 kWh/100 mi
131 MPGe
6.3 km/kWh
3.9 mi/kWh
How fast is 2022 LX Plus 93.3 kWh (490 Hp) 4WD?
180 km/h | 112 mph
0-100 km/h: 3.9 sec
0-60 mph: 3.7 sec
What is the power output of Aion LX SUV 2022 93.3 kWh (490 Hp) 4WD?
490 Hp, 700 Nm
516 lb.-ft.
What is the drivetrain of Aion LX Plus SUV 2022 93.3 kWh (490 Hp) 4WD?
All wheel drive (4x4). BEV. One electric motor drives the front wheels, one electric motor drives the rear wheels.
What is the length of 2022 Aion LX SUV?
4835 mm
190.35 in.
What is the width of 2022 Aion LX SUV?
1935 mm
76.18 in.
What is the kerb weight of 2022 Aion LX Plus 93.3 kWh (490 Hp) 4WD?
2220 kg
4894 lbs.
What is the maximum permissible mass of 2022 Aion LX Plus 93.3 kWh (490 Hp) 4WD?
2720 kg
5997 lbs.
What is the trunk (boot) capacity of 2022 Aion LX SUV?
410 - 1400 l
14.5 - 49.4 cu. ft.
What are the number of gears and the gearbox type of 2022 Aion LX Plus 93.3 kWh (490 Hp) 4WD?
1, automatic transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Aion LX Plus 93.3 kWh (490 Hp) 4WD
Compare

General information

Brand
Aion
Model
LX
Generation
LX Plus
Modification (Engine)
93.3 kWh (490 Hp) 4WD
Start of production
January, 2022
Powertrain Architecture
BEV (Electric Vehicle)
Body type
SUV (Sport Utility Vehicle)
Seats
5
Doors
5
Looking for Aion LX on the used-car market?
Check its history →

Performance specs

Fuel Type
Electricity
Acceleration 0 - 100 km/h
3.9 sec
Acceleration 0 - 62 mph
3.9 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net)
3.7 sec
Maximum speed
180 km/h 112 mph
Weight-to-power ratio
4.5 kg/Hp, 220.7 Hp/tonne
Weight-to-torque ratio
3.2 kg/Nm, 315.3 Nm/tonne

Electric and hybrid car specs

Gross battery capacity
93.3 kWh
Battery technology
Lithium nickel manganese cobalt oxides (Li-NMC)
Battery location
Below the floor
Electric range (NEDC)
600 km 373 mi
Average Energy consumption (NEDC)
16 kWh/100 km 25.75 kWh/100 mi
131 MPGe
6.3 km/kWh
3.9 mi/kWh
Charging ports
Log in to see.Log in to see.

Electric motor 1

Electric motor power
245 Hp
Electric motor Torque
350 Nm 258 lb.-ft.
Electric motor model/code
TZ180XYA1203
Electric motor location
Front axle, Transverse
Electric motor type
Synchronous

Electric motor 2

Electric motor power
245 Hp
Electric motor Torque
350 Nm 258 lb.-ft.
Electric motor model/code
TZ180XYA1203
Electric motor location
Rear axle, Transverse
Electric motor type
Synchronous
System power
490 Hp
System torque
700 Nm 516 lb.-ft.

Volume and weights

Kerb Weight
2220 kg 4894 lbs.
Max. weight
2720 kg 5997 lbs.
Max load
500 kg 1102 lbs.
Trunk (boot) space - minimum
410 l 14.5 cu. ft.
Trunk (boot) space - maximum
1400 l 49.4 cu. ft.

Dimensions

Length
4835 mm 190.35 in.
Width
1935 mm 76.18 in.
Height
1685 mm 66.34 in.
Wheelbase
2920 mm 114.96 in.
Front track
1650 mm 64.96 in.
Rear (Back) track
1660 mm 65.35 in.
Ride height (ground clearance)
150 mm 5.91 in.
Minimum turning circle (turning diameter)
12 m 39.37 ft.
Approach angle
17°
Departure angle
22°

Drivetrain, brakes and suspension specs

Drivetrain Architecture
One electric motor drives the front wheels, one electric motor drives the rear wheels.
Drive wheel
All wheel drive (4x4)
Number of gears and type of gearbox
1 gears, automatic transmission
Front suspension
Independent, McPherson type with coil spring and anti-roll bar
Rear suspension
Independent multi-link spring suspension with anti-roll bar
Front brakes
Ventilated discs
Rear brakes
Disc
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Electric Steering
Tire size
245/50 R20
Wheel rim size
20
