Acura TLX I (facelift 2017) A-Spec 3.5 V6 (290 Hp) Automatic | Technical specs, data, fuel consumption, Dimensions

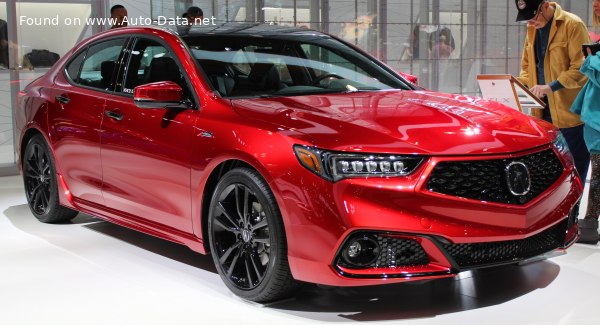

2018 Acura TLX I (facelift 2017) - Photo 1

Key specs

Acura TLX I (facelift 2017) A-Spec 3.5 V6 (290 Hp) Automatic /Sedan 2017 - 2020/

What is the body type of Acura TLX I (facelift 2017)?

Sedan, 4 Doors, 5 Seats

What is the fuel consumption and economy of Acura TLX I (facelift 2017) A-Spec 3.5 V6 (290 Hp) Automatic?

10.2 l/100 km
23.1 US mpg
27.7 UK mpg
9.8 km/l

What is the power output of Acura TLX Sedan 2017 A-Spec 3.5 V6 (290 Hp) Automatic?

290 Hp, 362 Nm
267 lb.-ft.

What is the engine displacement of Acura TLX Sedan 2017 A-Spec 3.5 V6 (290 Hp) Automatic?

3.5 l
3471 cm³
211.81 cu. in.

What is the number of cylinders in 2017 Acura A-Spec 3.5 V6 (290 Hp) Automatic?

6, V-engine

What is the drivetrain of Acura TLX I (facelift 2017) Sedan 2017 A-Spec 3.5 V6 (290 Hp) Automatic?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2017 Acura TLX Sedan?

4851 mm
190.98 in.

What is the width of 2017 Acura TLX Sedan?

1854 mm
72.99 in.

What is the kerb weight of 2017 Acura TLX I (facelift 2017) A-Spec 3.5 V6 (290 Hp) Automatic?

1669 kg
3680 lbs.

What is the trunk (boot) capacity of 2017 Acura TLX Sedan?

374 l
13.2 cu. ft.

What are the number of gears and the gearbox type of 2017 Acura TLX I (facelift 2017) A-Spec 3.5 V6 (290 Hp) Automatic?

9, automatic transmission

Acura
- Acura TLX
  - TLX I (facelift 2017)
    - A-Spec 3.5 V6 (290 Hp) SH-AWD Automatic
    - A-Spec 3.5 V6 (290 Hp) Automatic
    - A-Spec 2.4 (206 Hp) DCT
    - 3.5 V6 (294 Hp) AWD Automatic
    - 3.5 V6 (294 Hp) Automatic
    - 2.4 (209 Hp) Automatic

Compare

General information

Brand

Acura

Model

TLX

Generation

TLX I (facelift 2017)

Modification (Engine)

A-Spec 3.5 V6 (290 Hp) Automatic

Start of production

July, 2017

End of production

August, 2020

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Seats

Doors

Looking for Acura TLX on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

11.7 l/100 km 20.1 US mpg
24.1 UK mpg
8.5 km/l

Fuel consumption (economy) - extra urban

7.8 l/100 km 30.2 US mpg
36.2 UK mpg
12.8 km/l

Fuel consumption (economy) - combined

10.2 l/100 km 23.1 US mpg
27.7 UK mpg
9.8 km/l

Fuel Type

Petrol (Gasoline)

Weight-to-power ratio

5.8 kg/Hp, 173.8 Hp/tonne

Weight-to-torque ratio

4.6 kg/Nm, 216.9 Nm/tonne

Engine specs

Power

290 Hp @ 6200 rpm.

Power per litre

83.5 Hp/l

Torque

362 Nm @ 4500 rpm. 267 lb.-ft. @ 4500 rpm.

Engine layout

Front, Transverse

Engine Model/Code

J35Y6

Engine displacement

3471 cm³ 211.81 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

89 mm 3.5 in.

Piston Stroke

93 mm 3.66 in.

Compression ratio

11.5:1

Number of valves per cylinder

Fuel injection system

Direct injection

Engine aspiration

Naturally aspirated engine

Valvetrain

SOHC, i-VTEC

Engine oil capacity

4.3 l 4.54 US qt | 3.78 UK qt

Engine oil specification

Coolant

8.4 l 8.88 US qt | 7.39 UK qt

Volume and weights

Kerb Weight

1669 kg 3680 lbs.

Trunk (boot) space - minimum

374 l 13.2 cu. ft.

Fuel tank capacity

65 l 17.17 US gal | 14.3 UK gal

Dimensions

Length

4851 mm 190.98 in.

Width

1854 mm 72.99 in.

Height

1448 mm 57.01 in.

Wheelbase

2776 mm 109.29 in.

Front track

1595 mm 62.8 in.

Rear (Back) track

1603 mm 63.11 in.

Ride height (ground clearance)

150 mm 5.91 in.

Minimum turning circle (turning diameter)

11.8 m 38.71 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

9 gears, automatic transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Independent multi-link suspension

Front brakes

Ventilated discs, 320 mm

Rear brakes

Disc, 310 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

225/50 R18; 245/40 R19

Wheel rim size

7.5J x 18; 8.0J x 19

Specs of Acura TLX I (facelift 2017) A-Spec 3.5 V6 (290 Hp) Automatic /2017, 2018, 2019, 2020/
