FordFord Edge II (facelift 2018) 2.0 EcoBlue (238 Hp) AWD Automatic2018, 2019, 2020: specs, Fuel consumption, Dimensions

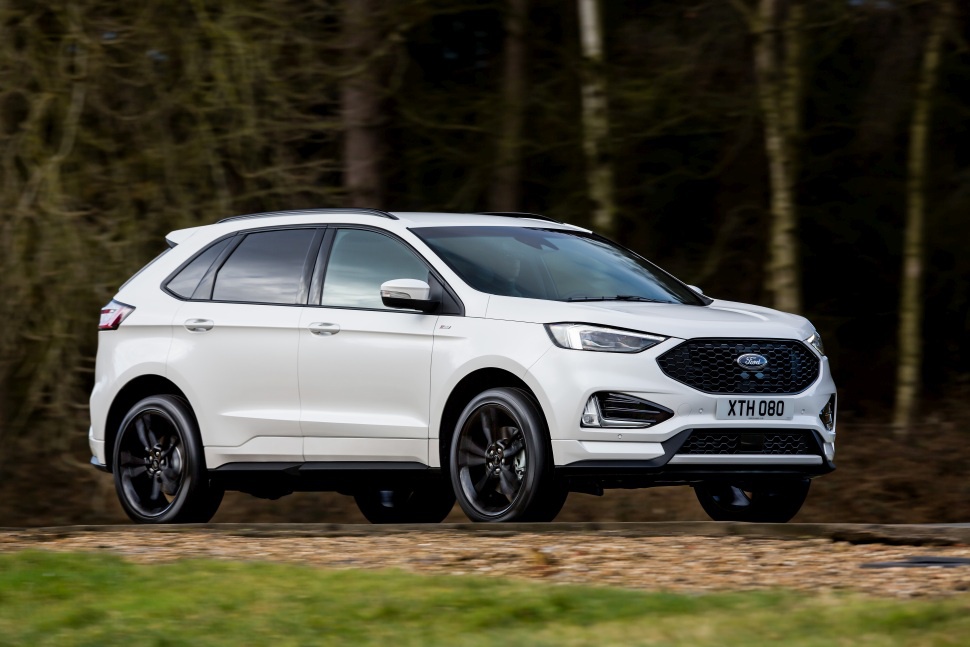

2019 Ford Edge II (facelift 2018) - Photo 1
Ford Edge II (facelift 2018) - Photo 2Ford Edge II (facelift 2018) - Photo 3Ford Edge II (facelift 2018) - Photo 4Ford Edge II (facelift 2018) - Photo 5Ford Edge II (facelift 2018) - Photo 6Ford Edge II (facelift 2018) - Photo 7Ford Edge II (facelift 2018) - Photo 8Ford Edge II (facelift 2018) - Photo 9Ford Edge II (facelift 2018) - Photo 10

Key specs

Ford Edge II (facelift 2018) 2.0 EcoBlue (238 Hp) AWD Automatic /SUV 2018 - 2020/
What is the body type of Ford Edge II (facelift 2018)?
SUV, 5 Doors, 5 Seats
What is the fuel consumption and economy of Ford Edge II (facelift 2018) 2.0 EcoBlue (238 Hp) AWD Automatic?
6.7-7.2 l/100 km
35.1 - 32.7 US mpg
42.2 - 39.2 UK mpg
14.9 - 13.9 km/l
How environmentally friendly is Ford Edge 2.0 EcoBlue (238 Hp) AWD Automatic?
175-187 g/km CO2
Euro 6d-TEMP
How fast is 2018 Edge II (facelift 2018) 2.0 EcoBlue (238 Hp) AWD Automatic?
216 km/h | 134 mph
0-100 km/h: 9.6 sec
0-60 mph: 9.1 sec
What is the power output of Ford Edge SUV 2018 2.0 EcoBlue (238 Hp) AWD Automatic?
238 Hp, 500 Nm
369 lb.-ft.
What is the engine displacement of Ford Edge SUV 2018 2.0 EcoBlue (238 Hp) AWD Automatic?
2.0 l
1996 cm3
121.8 cu. in.
What is the number of cylinders in 2018 Ford 2.0 EcoBlue (238 Hp) AWD Automatic?
4, Inline
What is the drivetrain of Ford Edge II (facelift 2018) SUV 2018 2.0 EcoBlue (238 Hp) AWD Automatic?
All wheel drive (4x4). ICE. The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
What is the length of 2018 Ford Edge SUV?
4834 mm
190.31 in.
What is the width of 2018 Ford Edge SUV?
1928 mm
75.91 in.
What is the kerb weight of 2018 Ford Edge II (facelift 2018) 2.0 EcoBlue (238 Hp) AWD Automatic?
2041 kg
4500 lbs.
What is the maximum permissible mass of 2018 Ford Edge II (facelift 2018) 2.0 EcoBlue (238 Hp) AWD Automatic?
2655 kg
5853 lbs.
What is the trunk (boot) capacity of 2018 Ford Edge SUV?
602 - 1847 l
21.3 - 65.2 cu. ft.
What are the number of gears and the gearbox type of 2018 Ford Edge II (facelift 2018) 2.0 EcoBlue (238 Hp) AWD Automatic?
8, automatic transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Ford Edge II (facelift 2018) 2.0 EcoBlue (238 Hp) AWD Automatic
Compare

General information

Brand
Ford
Model
Edge
Generation
Edge II (facelift 2018)
Modification (Engine)
2.0 EcoBlue (238 Hp) AWD Automatic
Start of production
August, 2018
End of production
December, 2020
Powertrain Architecture
Internal Combustion engine
Body type
SUV (Sport Utility Vehicle)
Seats
5
Doors
5
Looking for Ford Edge on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - combined
6.7-7.2 l/100 km 35.1 - 32.7 US mpg
42.2 - 39.2 UK mpg
14.9 - 13.9 km/l
CO2 emissions
175-187 g/km
Fuel Type
Diesel
Acceleration 0 - 100 km/h
9.6 sec
Acceleration 0 - 62 mph
9.6 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net)
9.1 sec
Maximum speed
216 km/h 134 mph
Emission standard
Euro 6d-TEMP
Weight-to-power ratio
8.6 kg/Hp, 116.6 Hp/tonne
Weight-to-torque ratio
4.1 kg/Nm, 245 Nm/tonne

Engine specs

Power
238 Hp @ 4000 rpm.
Power per litre
119.2 Hp/l
Torque
500 Nm @ 2000 rpm. 369 lb.-ft. @ 2000 rpm.
Engine layout
Front, Transverse
Engine Model/Code
YLCB
Engine displacement
1996 cm3 121.8 cu. in.
Number of cylinders
4
Engine configuration
Inline
Cylinder Bore
84 mm 3.31 in.
Piston Stroke
90 mm 3.54 in.
Compression ratio
16:1
Number of valves per cylinder
4
Fuel injection system
Diesel Commonrail
Engine aspiration
Bi-Turbo, Intercooler
Valvetrain
DOHC
Engine oil capacity
6.4 l 6.76 US qt | 5.63 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
14.1 l 14.9 US qt | 12.41 UK qt
Engine systems
Start & Stop System
Particulate filter

Volume and weights

Kerb Weight
2041 kg 4500 lbs.
Max. weight
2655 kg 5853 lbs.
Max load
614 kg 1354 lbs.
Trunk (boot) space - minimum
602 l 21.3 cu. ft.
Trunk (boot) space - maximum
1847 l 65.2 cu. ft.
Fuel tank capacity
64 l 16.91 US gal | 14.08 UK gal
Max. roof load
75 kg 165 lbs.
Permitted trailer load with brakes (12%)
2000 kg 4409 lbs.
Permitted trailer load without brakes
750 kg 1653 lbs.

Dimensions

Length
4834 mm 190.31 in.
Width
1928 mm 75.91 in.
Width with mirrors folded
1981 mm 77.99 in.
Width including mirrors
2184 mm 85.98 in.
Height
1742 mm 68.58 in.
Wheelbase
2849 mm 112.17 in.
Front track
1655 mm 65.16 in.
Rear (Back) track
1664 mm 65.51 in.
Ride height (ground clearance)
193 mm 7.6 in.
Minimum turning circle (turning diameter)
11.9 m 39.04 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel
All wheel drive (4x4)
Number of gears and type of gearbox
8 gears, automatic transmission
Front suspension
Independent, McPherson type with coil spring and anti-roll bar
Rear suspension
Independent multi-link spring suspension with anti-roll bar
Front brakes
Ventilated discs, 345x32 mm
Rear brakes
Disc, 316x11 mm
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Electric Steering
Tire size
235/55 R19; 255/45 R20; 265/40 R21
Wheel rim size
8J x 19; 8.5J x 20; 9J x 21
